Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster

Sony has patented a method that makes its self-lit screens refresh faster by skipping some fine-tuning steps on parts of each image, accepting a tiny dip in picture accuracy to win a noticeable boost in speed.

Smart glasses featuring a side-mounted microdisplay unit for augmented reality applications. Drawing from patent filing US 2026/0245511 A1.
Smart glasses featuring a side-mounted microdisplay unit for augmented reality applications.All 17 drawings ↓
Publication number
US 2026/0245511 A1(US20260245511A1)
Applicant
SONY GROUP CORPORATION
Filed · Published
Dec 5, 2024 · Aug 20, 2026
Inventors
Haruki TSUCHIYA
Status when we published
Examiner raised objections; the company can respond
Document
20 claims
US classification
345/691
Examiner
AZONGHA, SARDIS F (Art Unit 2627)
Parent application
National Stage Entry of PCT/JP2023/020920 (filed Jun 6, 2023)(PCTJP2023020920)

How Sony's subframe trick balances speed and picture quality

Every pixel in an OLED screen is driven by a tiny circuit that tells it how bright to glow. In practice, those circuits are never perfectly identical from pixel to pixel, so display makers run a fix inside each pixel on every frame to iron out the differences. That fix takes time, and at high frame rates, time is the one thing you do not have.

Sony's patent describes a way to have it both ways. Instead of applying the full fix during every slice of a frame, the pixel only goes through the full correction on some of the slices that make up one complete image. The other slices fire without waiting for that correction. Because the human eye blends them together anyway, the picture still looks accurate, but the display can move faster overall.

The result is meant to let Sony push for higher frame rates or brighter output without needing any extra chip or software to cover for hardware imperfections.

From the filing · CLAIM 1
… the plurality of subframes includes a subframe in which the light emitting element is driven after the variation is corrected by the correction circuit and a subframe in which the light emitting element is driven without correcting the variation by the correction circuit.

Translation: The screen alternates between frames that are perfectly calibrated and frames that skip calibration to save time.

How the correction circuit decides when to fix each subframe

Modern OLED displays divide each full image frame into multiple subframes (shorter light pulses whose combination creates the final brightness level you see). Each pixel's driving circuit contains a current source that sets how much electricity flows to the light-emitting element, and a correction circuit that measures and compensates for manufacturing-level inconsistencies in that current source.

The correction step is called threshold voltage compensation in typical implementations (it accounts for slight differences in transistor characteristics across the panel). Running it takes a fixed slice of time per pixel, which eats into the budget available for each subframe.

Sony's patent reorganizes that budget:

  • Some subframes run the full correction routine before lighting the pixel.
  • Other subframes skip the correction entirely and drive the pixel directly from the uncorrected current source.
  • Because the corrected subframes anchor the overall brightness accurately, the uncorrected ones introduce only minor error that the eye does not detect.

The key insight is that not every sub-pulse of light needs to be perfect, only enough of them to keep the combined image within acceptable accuracy. This is handled entirely inside the pixel circuit, so no external image-processing chip is required to clean up the result afterward.

From the filing · THE ABSTRACT
Accelerated display and improved image quality are achieved without relying on external correction. A display device that performs gradation display of a plurality of pixels in one frame including a plurality of subframes includes a light emitting element and a pixel circuit that controls a current for driving the light emitting element.

Translation: Sony is building a screen that speeds up image processing by handling brightness adjustments directly inside the pixels.

What this means for high-refresh OLED screens

For consumer electronics, faster display response and higher frame rates are two of the most visible quality markers, especially for gaming monitors, high-end TVs, and VR headsets where even a few milliseconds of lag is noticeable. By cutting the correction overhead on some subframes, Sony could push refresh rates higher without redesigning the underlying OLED panel or adding an external correction processor, keeping cost and complexity down.

Display pixel-circuit patents like this one tend to be quiet infrastructure work, but they set the floor for what premium panels can do without expensive workarounds. Sony's display division supplies screens to its own televisions and PlayStation hardware, so the approach has a clear internal home. Readers who follow Big Tech patent news around display and chip technology will recognize this as part of an ongoing push by panel makers to squeeze more performance out of OLED architectures that are already close to their theoretical limits.

Sony's 349th filing we've tracked in our Sony coverage since May adds to a run that includes fixing where cameras think you're looking and previewing parking spots via nearby cars.

Source: US 2026/0245511 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 17 sheets

17 drawing sheets from US 2026/0245511 A1 · click any drawing to enlarge

Overall pixel array circuit layout, drawing sheet 1 from US 2026/0245511 A1

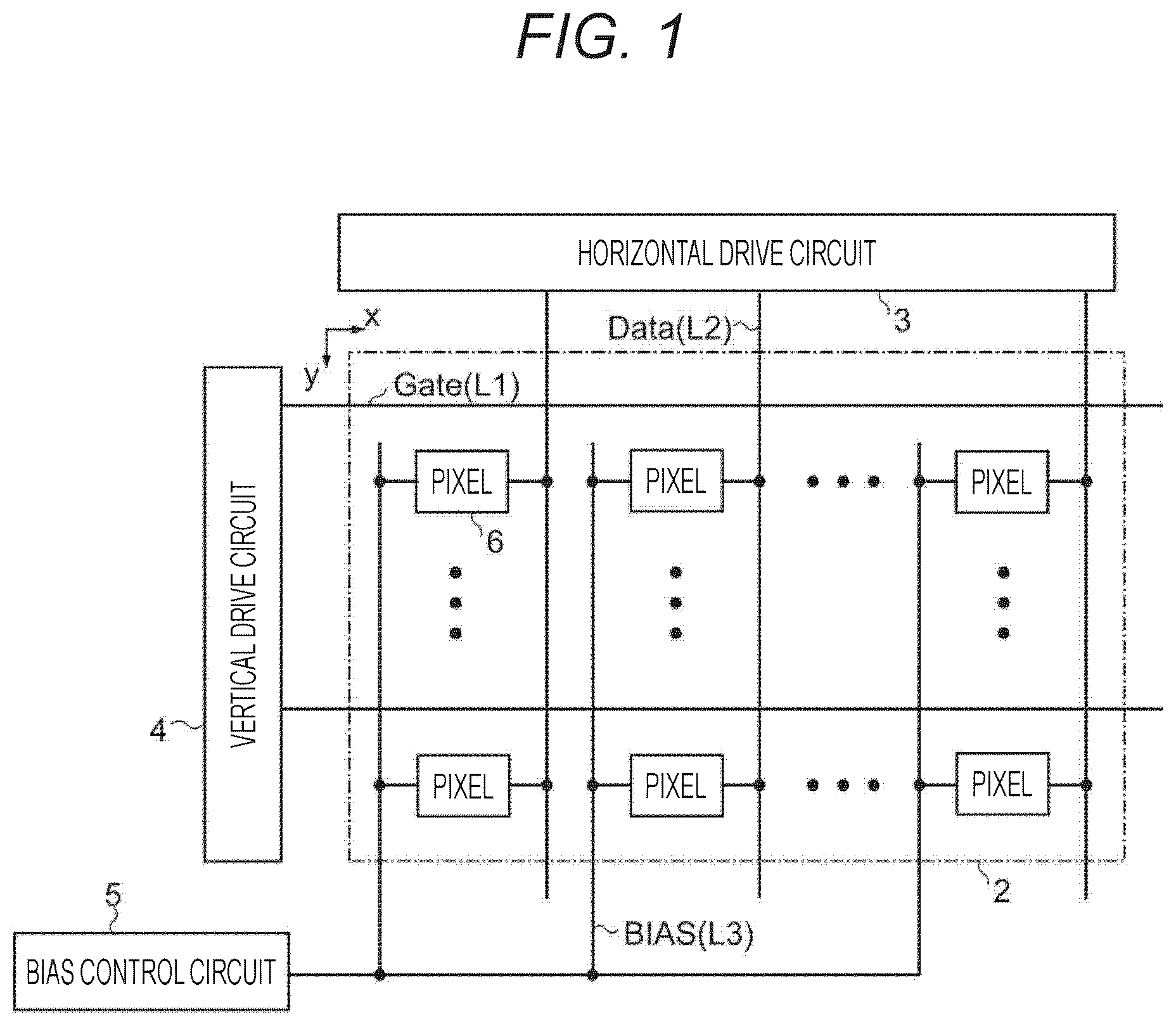

Sheet 1 Overall pixel array circuit layout

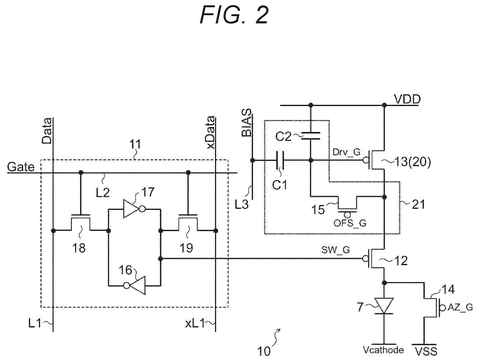

Individual pixel driver and switch circuit, drawing sheet 2 from US 2026/0245511 A1
Sheet 2 Individual pixel driver and switch circuit

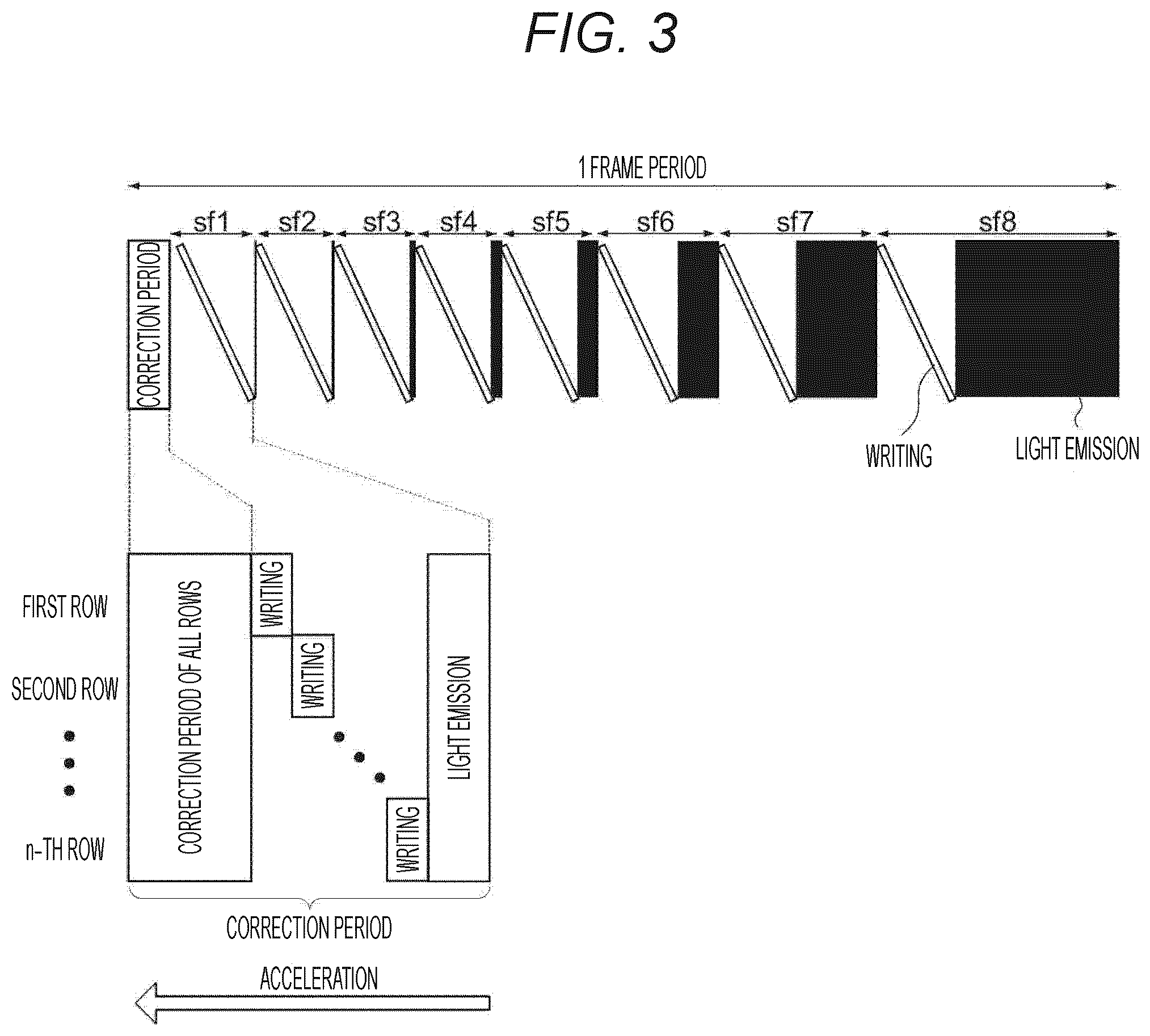

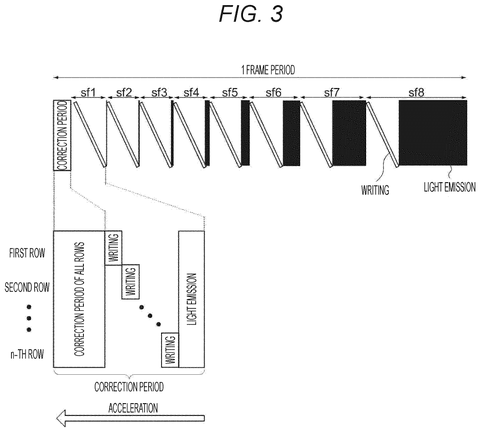

Subframe timing with row correction, drawing sheet 3 from US 2026/0245511 A1
Sheet 3 Subframe timing with row correction

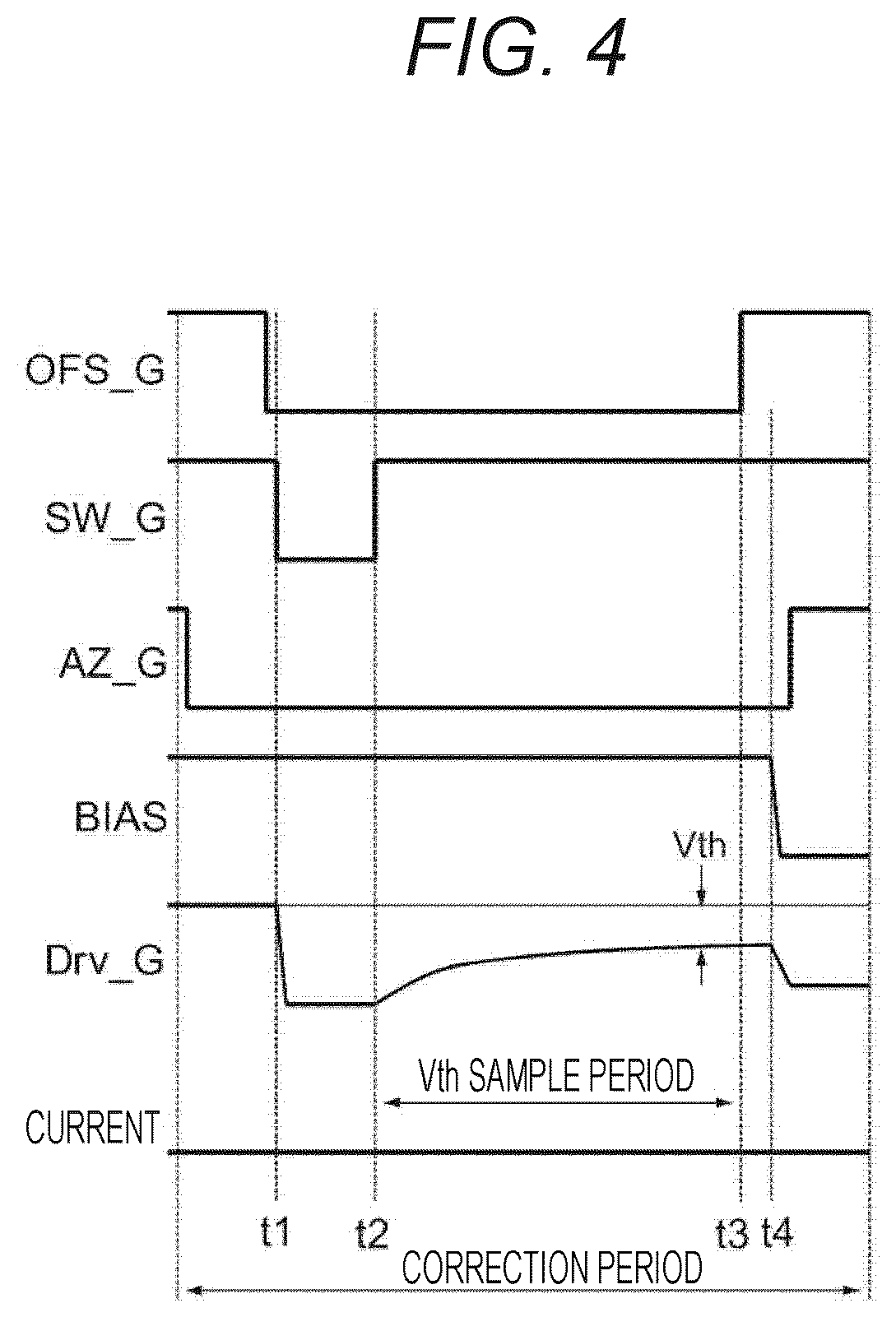

Waveforms during pixel correction period, drawing sheet 4 from US 2026/0245511 A1

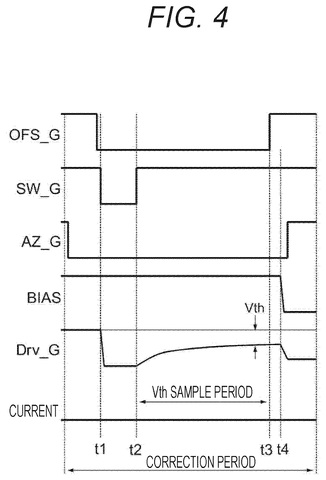

Sheet 4 Waveforms during pixel correction period

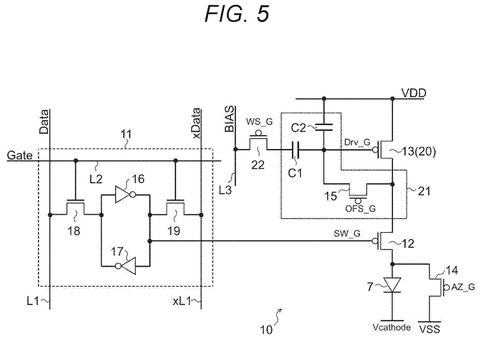

Pixel circuit with write switch, drawing sheet 5 from US 2026/0245511 A1

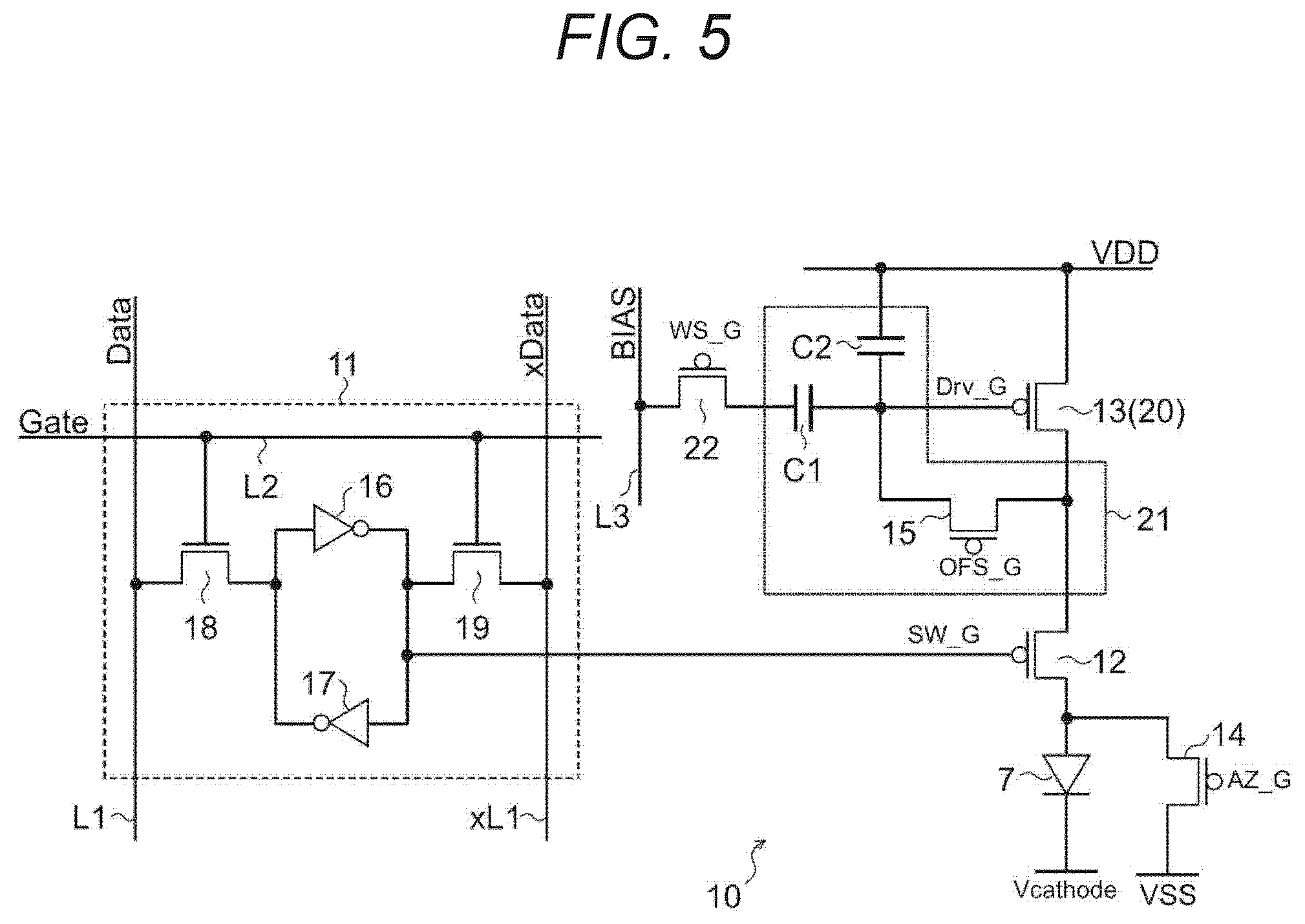

Sheet 5 Pixel circuit with write switch

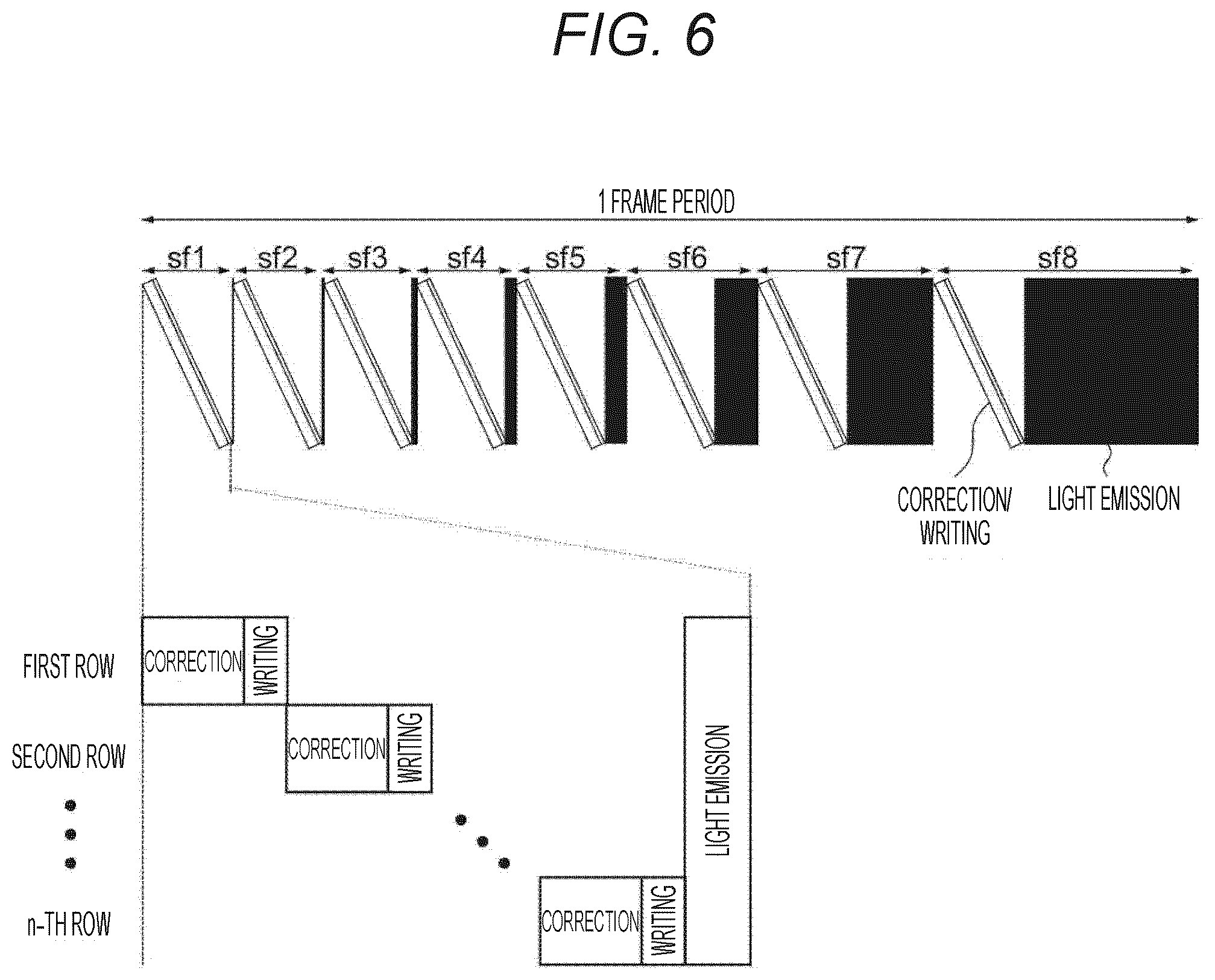

Subframe timing with alternating correction, drawing sheet 6 from US 2026/0245511 A1
Sheet 6 Subframe timing with alternating correction

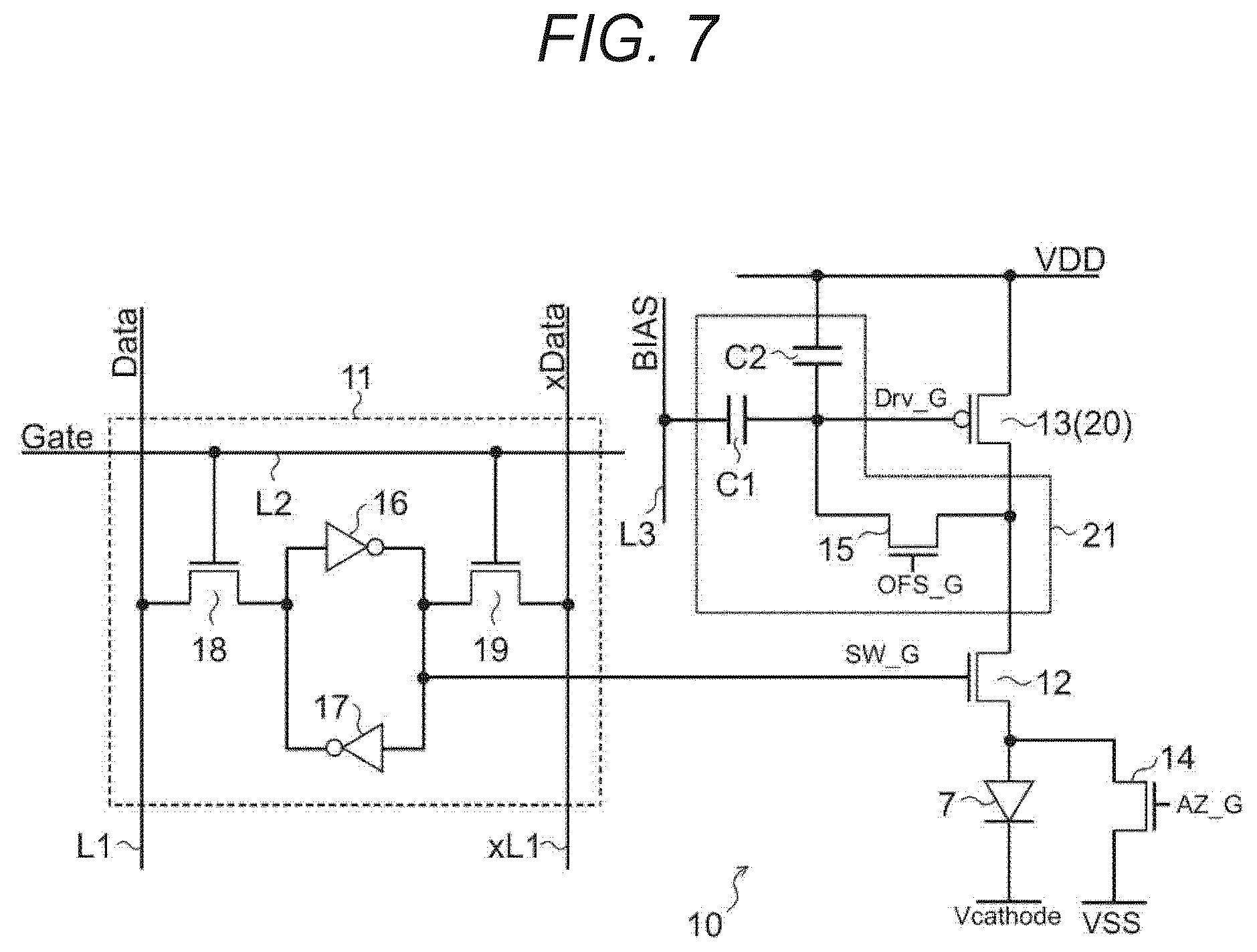

Pixel circuit with alternative switches, drawing sheet 7 from US 2026/0245511 A1
Sheet 7 Pixel circuit with alternative switches
Subframe timing with continuous correction, drawing sheet 8 from US 2026/0245511 A1

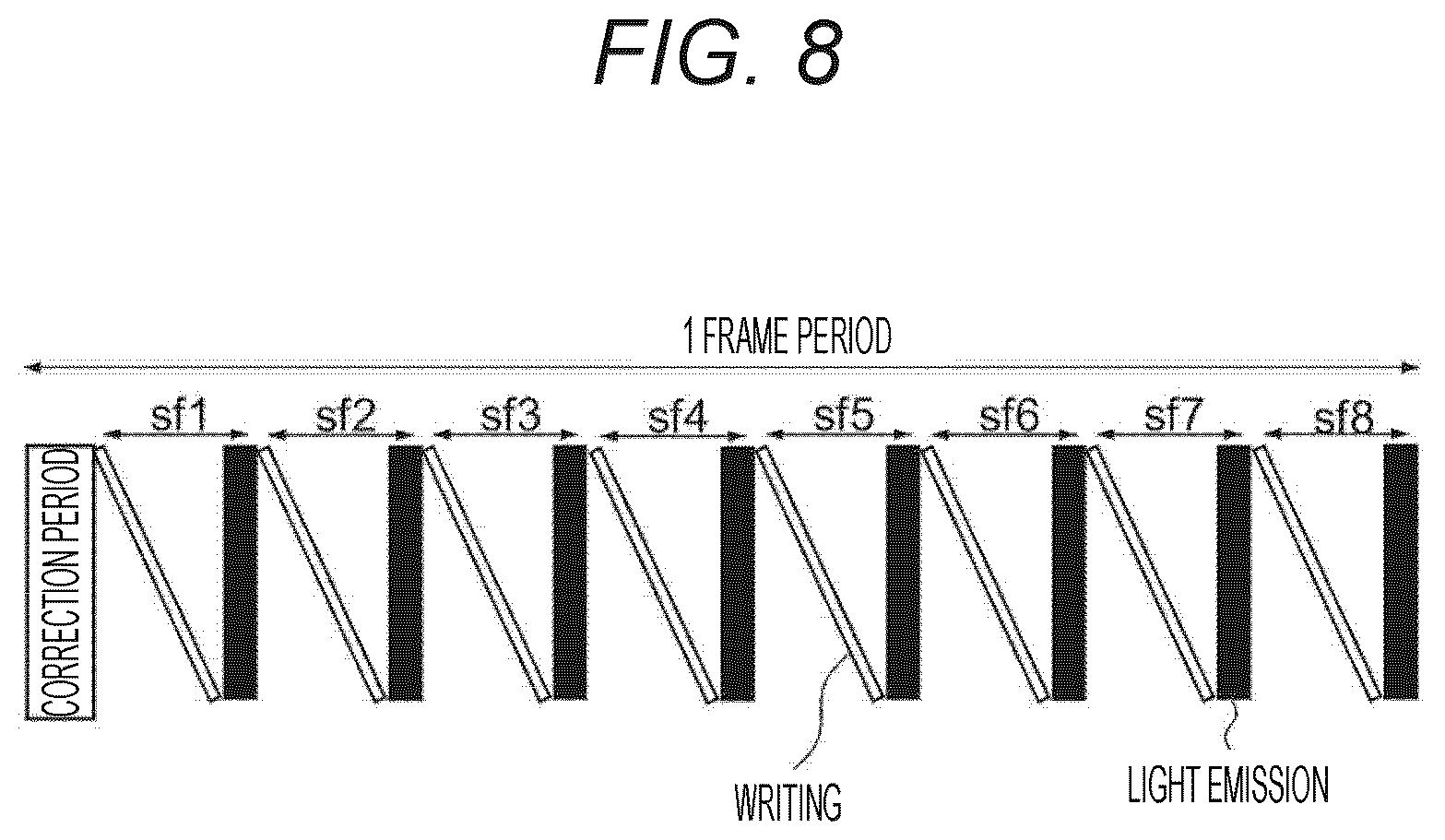

Sheet 8 Subframe timing with continuous correction
Show the other 9 sheets
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 9
Sheet 9
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 10
Sheet 10
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 11
Sheet 11
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 12
Sheet 12
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 13
Sheet 13
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 14
Sheet 14
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 15
Sheet 15
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 16
Sheet 16
Sony Patents a Display That Skips Color Accuracy Steps to Refresh Faster patent drawing, sheet 17
Sheet 17
