Sony Patents an Image Sensor That Converts Light to Data Faster and at Lower Power
Sony has filed a patent for an image sensor design that uses a bank of switches to control when each pixel's comparator receives a reference signal, cutting the electrical load on that shared wire and making analog-to-digital conversion faster and cheaper to power.
What Sony's pixel signal switching system actually does
Imagine your camera takes a photo and the sensor has to instantly measure the brightness at millions of tiny points, then convert all those measurements into numbers your phone can store. That conversion process is one of the main reasons cameras use battery power and why some sensors struggle to shoot fast video.
Sony's patent describes a way to reduce the electrical strain on one of the busiest parts of that process. Inside an image sensor, every pixel's signal gets compared against a steady reference value to figure out its brightness. When thousands of comparators all pull from the same reference wire at once, that wire gets loaded down, slowing everything down. Sony's fix is to add switches between the reference wire and each comparator, so the signal only travels where it's needed at any given moment.
The practical payoff, according to the patent, is faster conversion, higher frame rates, and lower power draw, all things that matter whether you're shooting 4K video on a phone or capturing images in a medical device.
… a plurality of switches that switches whether or not to input the reference signal to the plurality of comparators.
Translation: Switches control when the reference signal reaches the comparators.
How the comparator switches reduce reference signal load
An image sensor converts light into electrical charges at each pixel (a photoelectric conversion element), then turns those charges into digital numbers through a process called analog-to-digital conversion, or ADC. This patent targets one specific bottleneck in that pipeline.
The core mechanism involves:
- Pixel circuits that read the accumulated charge at each pixel and output an analog voltage representing brightness.
- Comparators that check each pixel's voltage against a steadily changing reference signal, marking the moment the two cross. The timing of that crossing encodes the brightness value.
- A digital signal generator that watches the comparators and records the crossing times to produce the final digital image data.
- A bank of switches placed between the shared reference signal wire and each individual comparator. Each switch can open or close, connecting or disconnecting that comparator from the reference line.
The key insight is that the reference signal wire's electrical load (the total demand placed on it by all connected comparators) slows down how quickly the reference voltage can ramp and settle. By opening switches for comparators that don't need the signal right now, Sony's design reduces that load, letting the reference ramp faster and more accurately. The result is quicker ADC cycles, which translates directly into higher frame rates and lower power consumption per frame.
By reducing the load of the signal wiring of a reference signal, it is possible to realize speeding up AD conversion, an increase in a frame rate, and a reduction in power consumption.
Translation: Lightening the signal wiring load makes the sensor faster and more energy efficient.
What this means for cameras in phones and other devices
Faster, more efficient ADC inside image sensors matters across a wide range of devices. In smartphones, it can mean higher video frame rates or better performance in low-light burst shooting without draining the battery as fast. In industrial cameras or automotive sensors, faster conversion can mean capturing more detail when things are moving quickly.
Sony Semiconductor's steady run of image sensor filings shows the company pushing on efficiency at a very granular level. This patent doesn't reinvent the sensor, but it addresses a real physical constraint in how reference signals propagate across a chip. Whether it reaches production or gets folded into a broader design is an open question, but the underlying problem it solves is genuine.
Sony's 74th filing in the Display patents we cover since May follows one on battery drain detection and one on selective pixel streaming.
Adding a switch between the shared voltage signal and each individual measuring circuit reduces the electrical drag on that signal, letting it change faster and finish the job sooner. The cost is straightforward: more switches mean more physical space on the chip, and if any switch opens even slightly late, that measuring circuit starts from a different point than its neighbors, printing a subtle brightness difference across the image.
Sony leaves the harder question unanswered, which is how precisely those switches must fire to keep the inconsistency invisible to a viewer or a machine.
For a sports camera or a factory inspection system where raw speed is the priority, that trade reads as worth it. For a medical imager or a scientific instrument where uniform brightness across the frame is non-negotiable, the timing tolerance on those switches becomes the thing that determines whether this design actually delivers on its promise.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

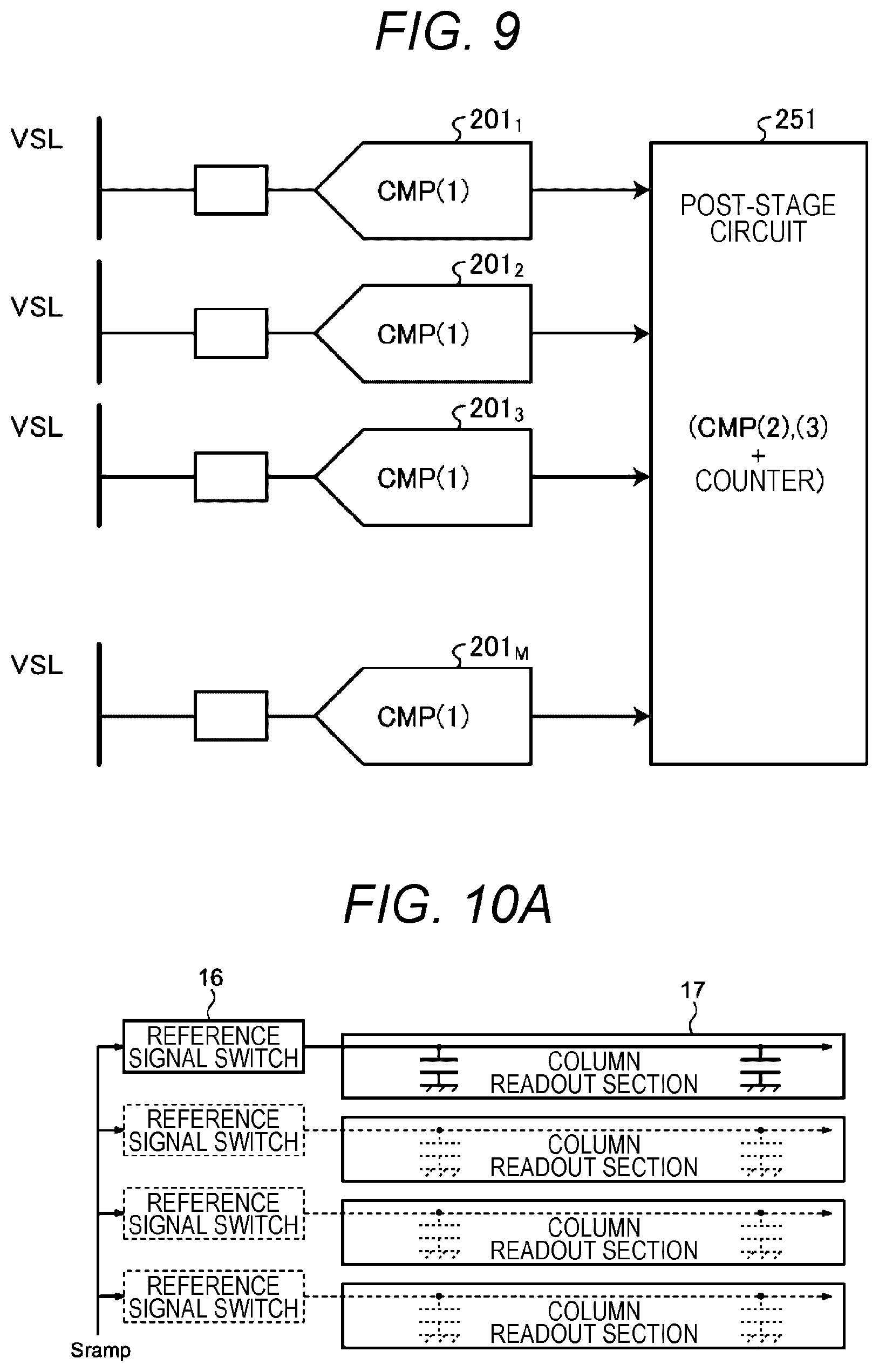

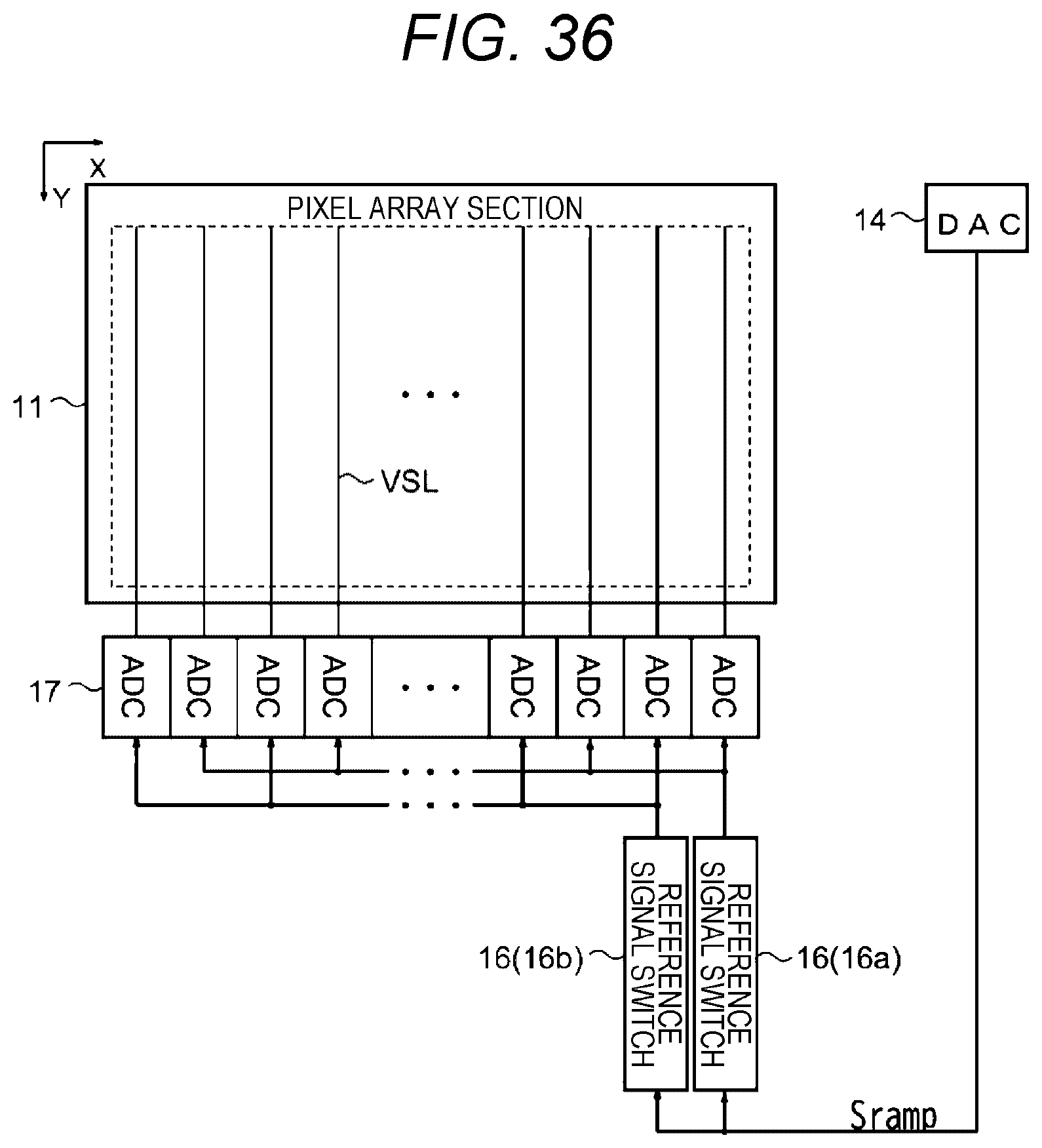

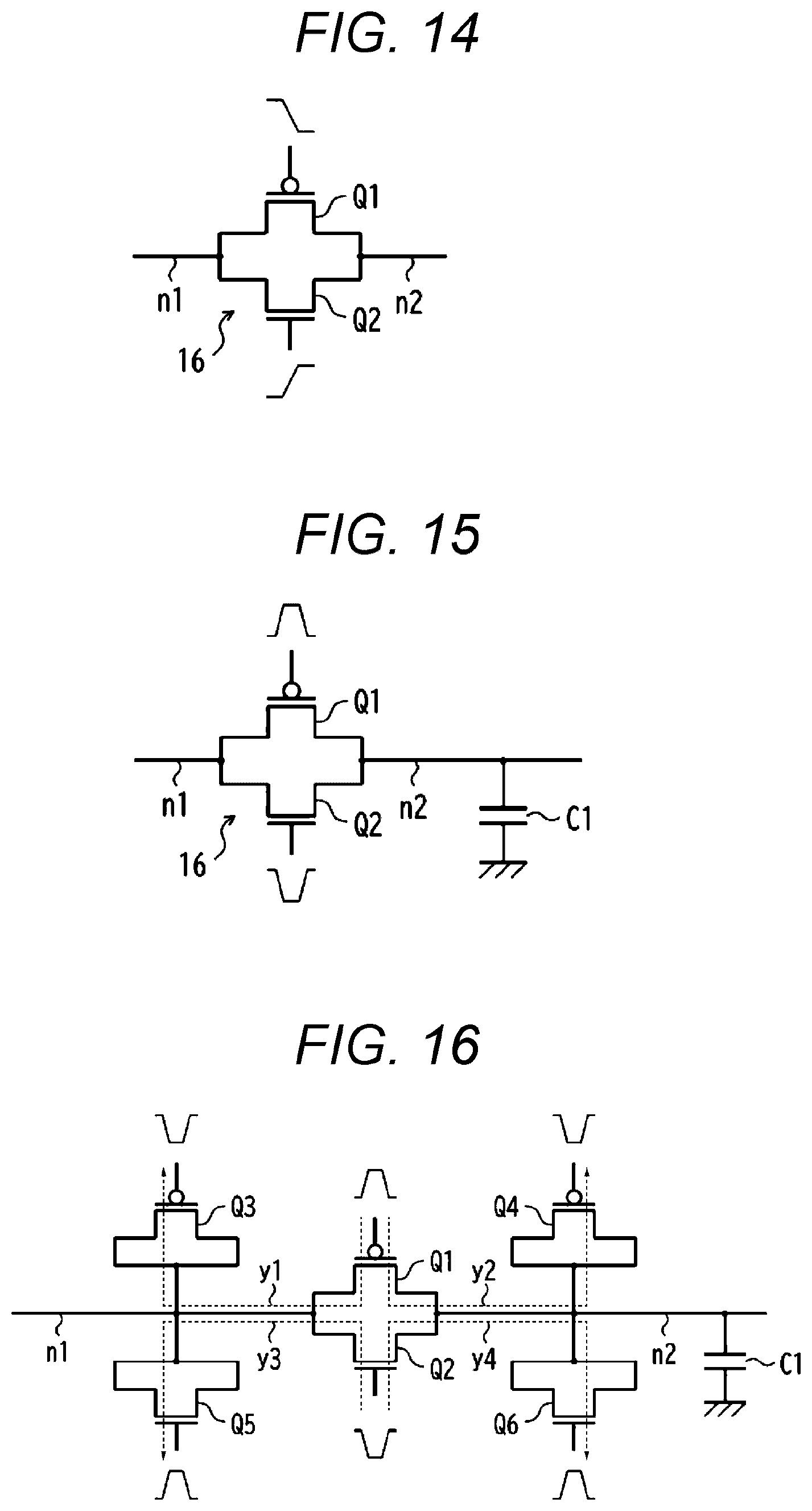

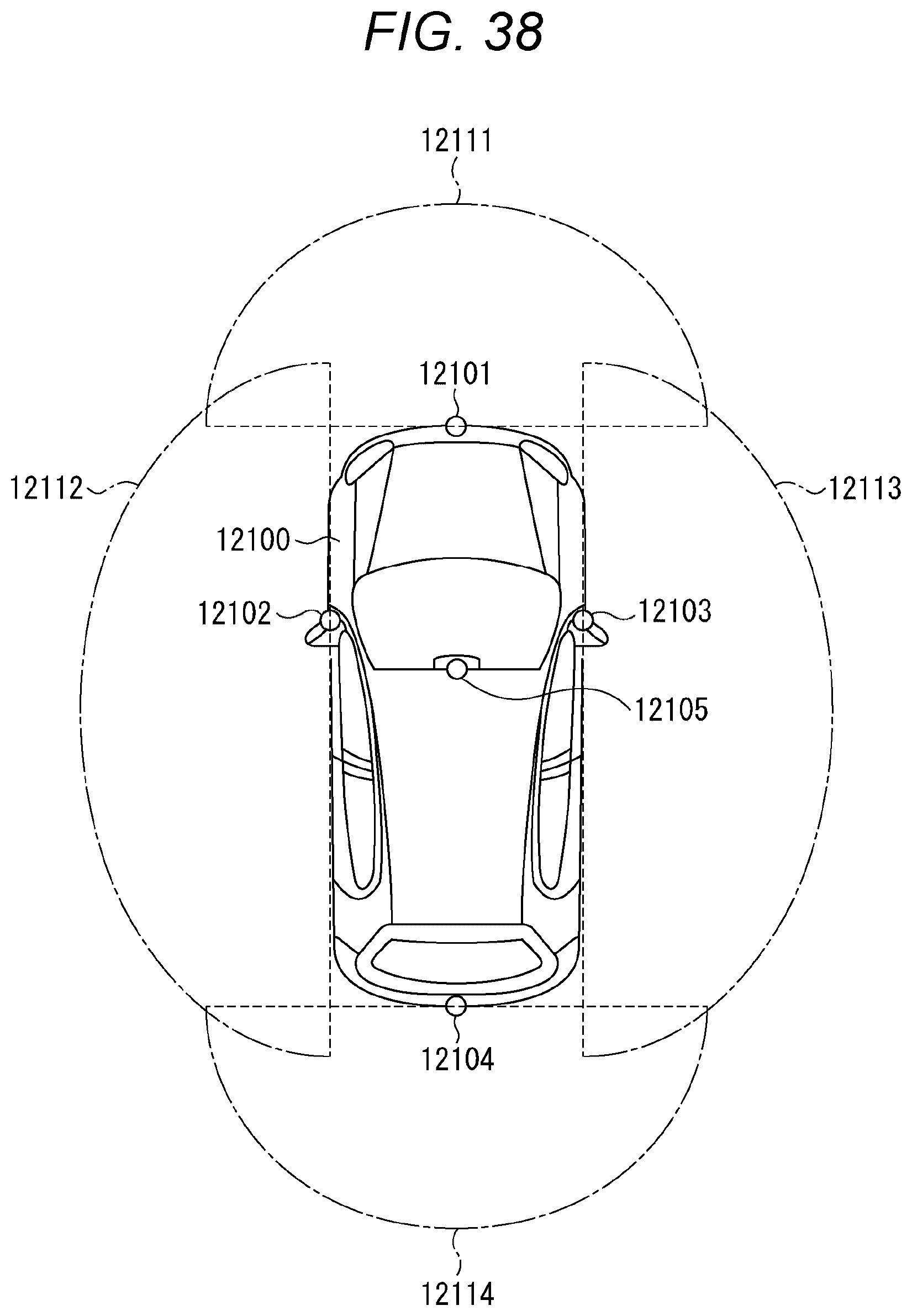

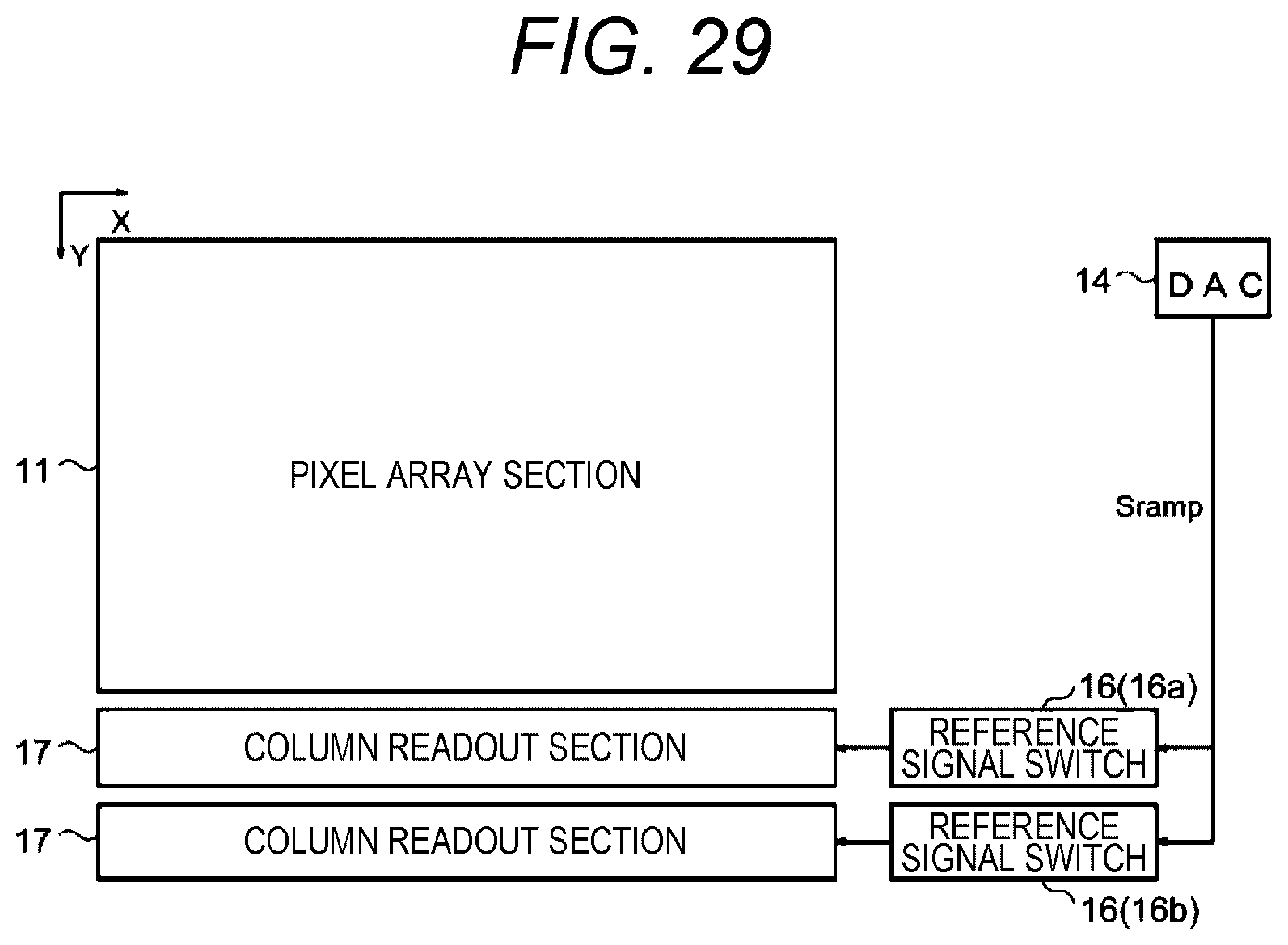

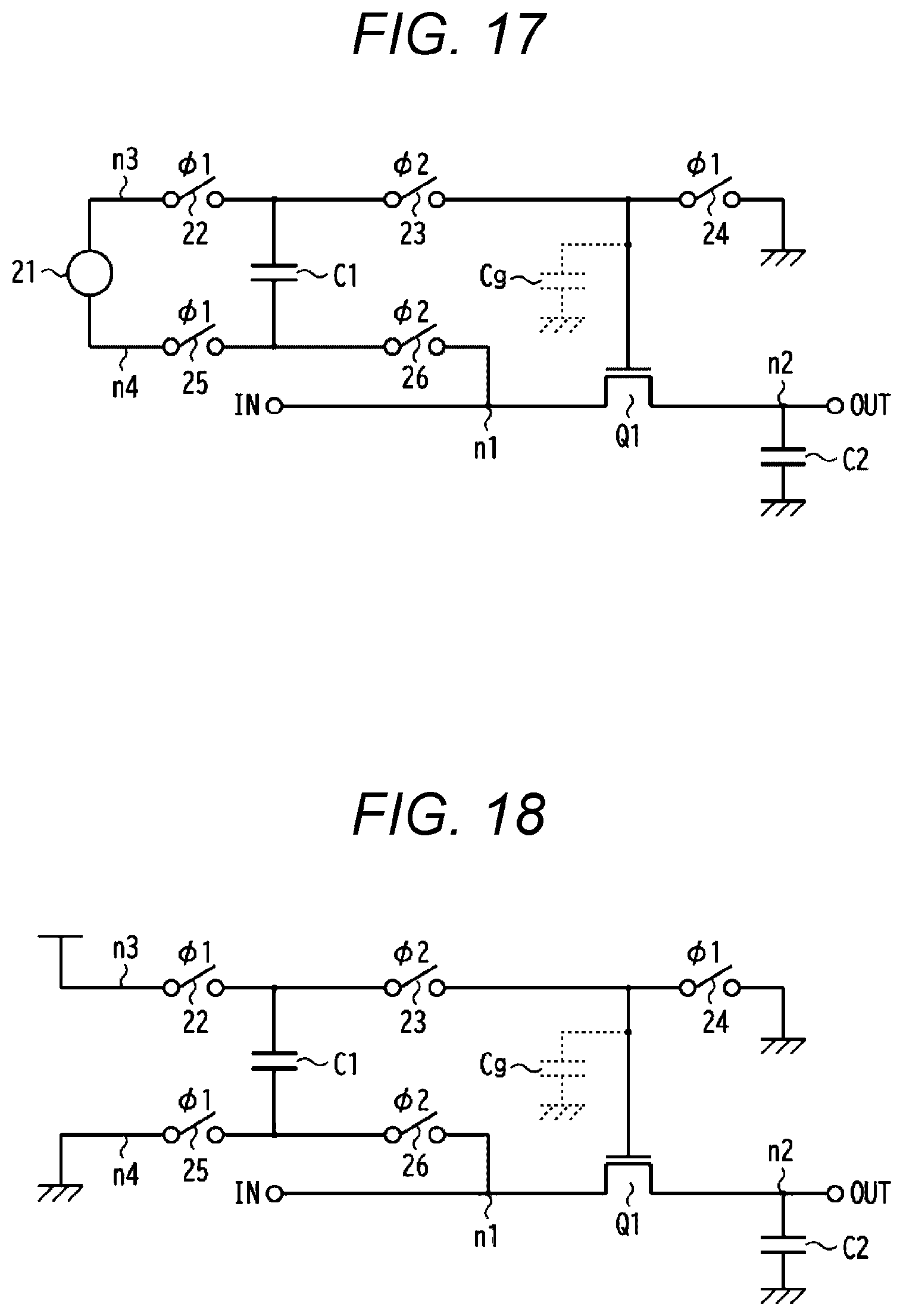

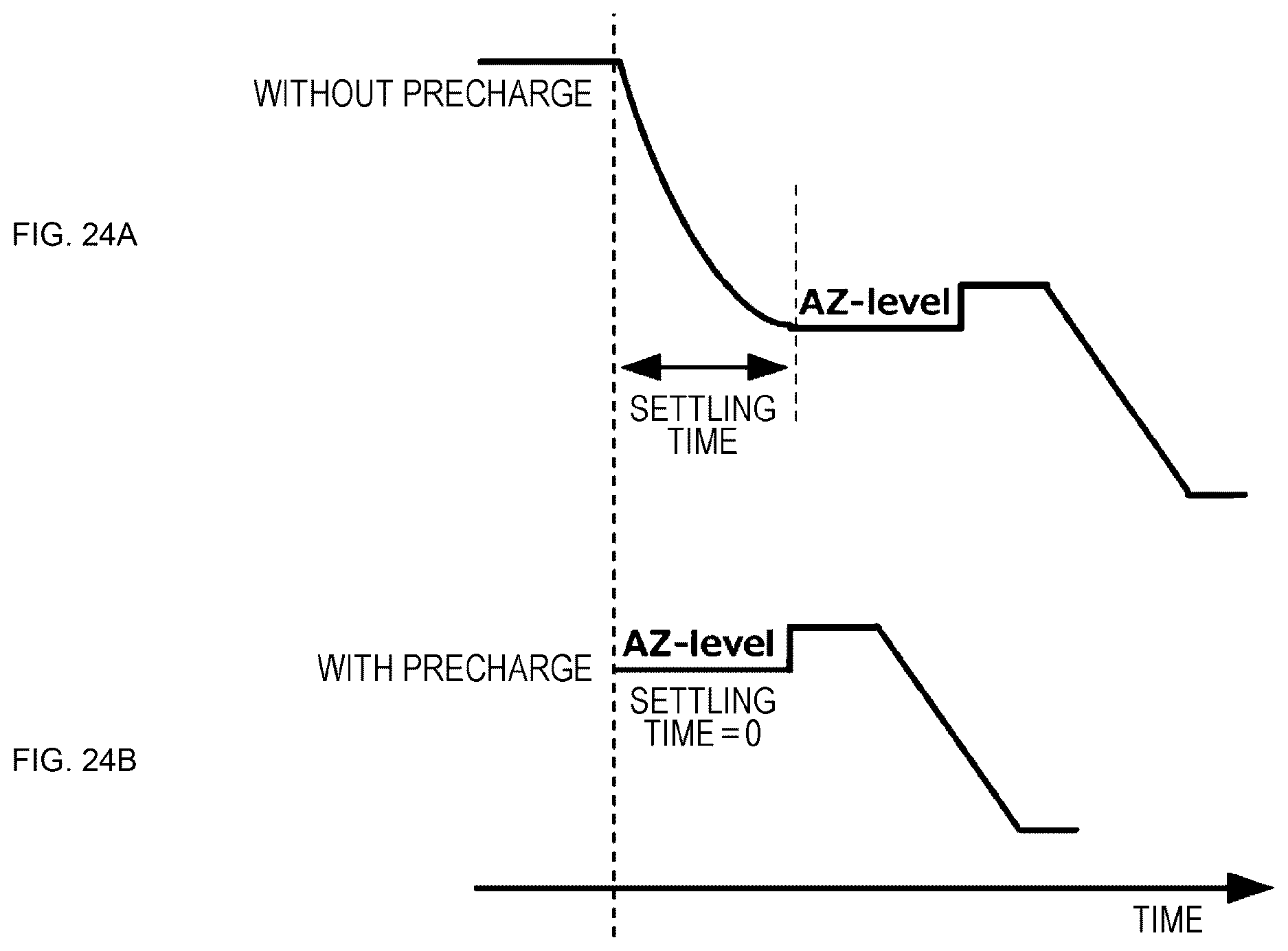

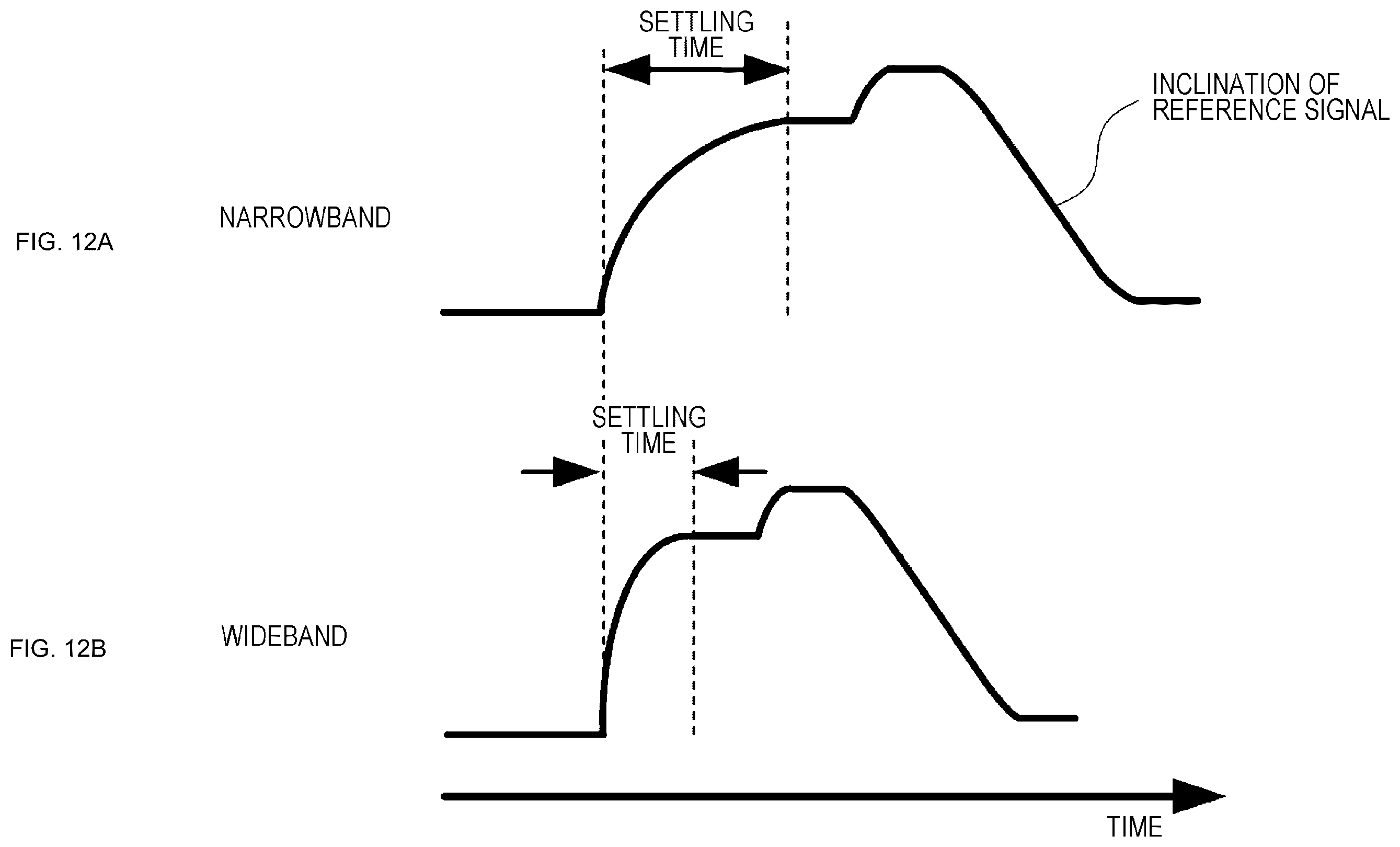

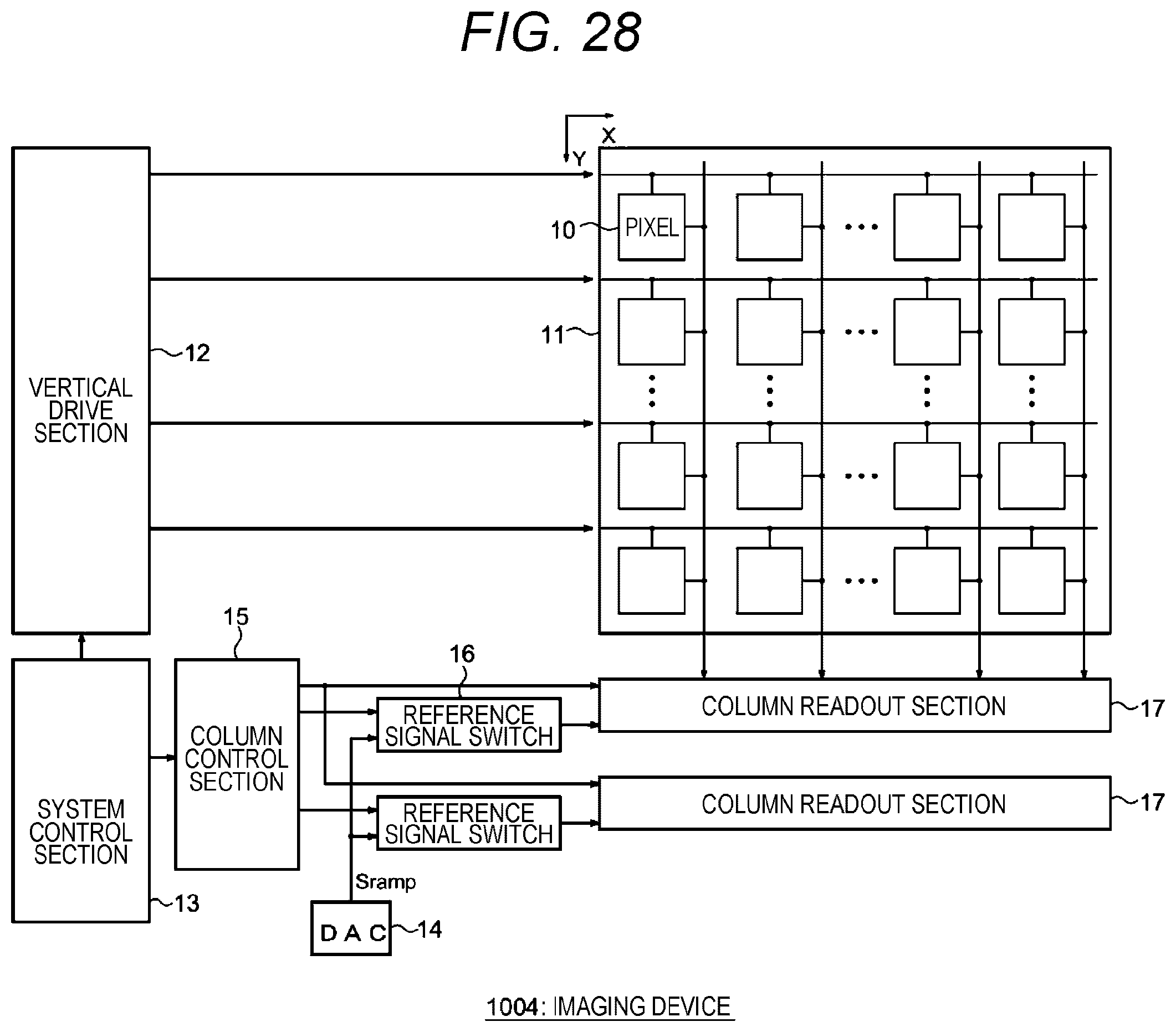

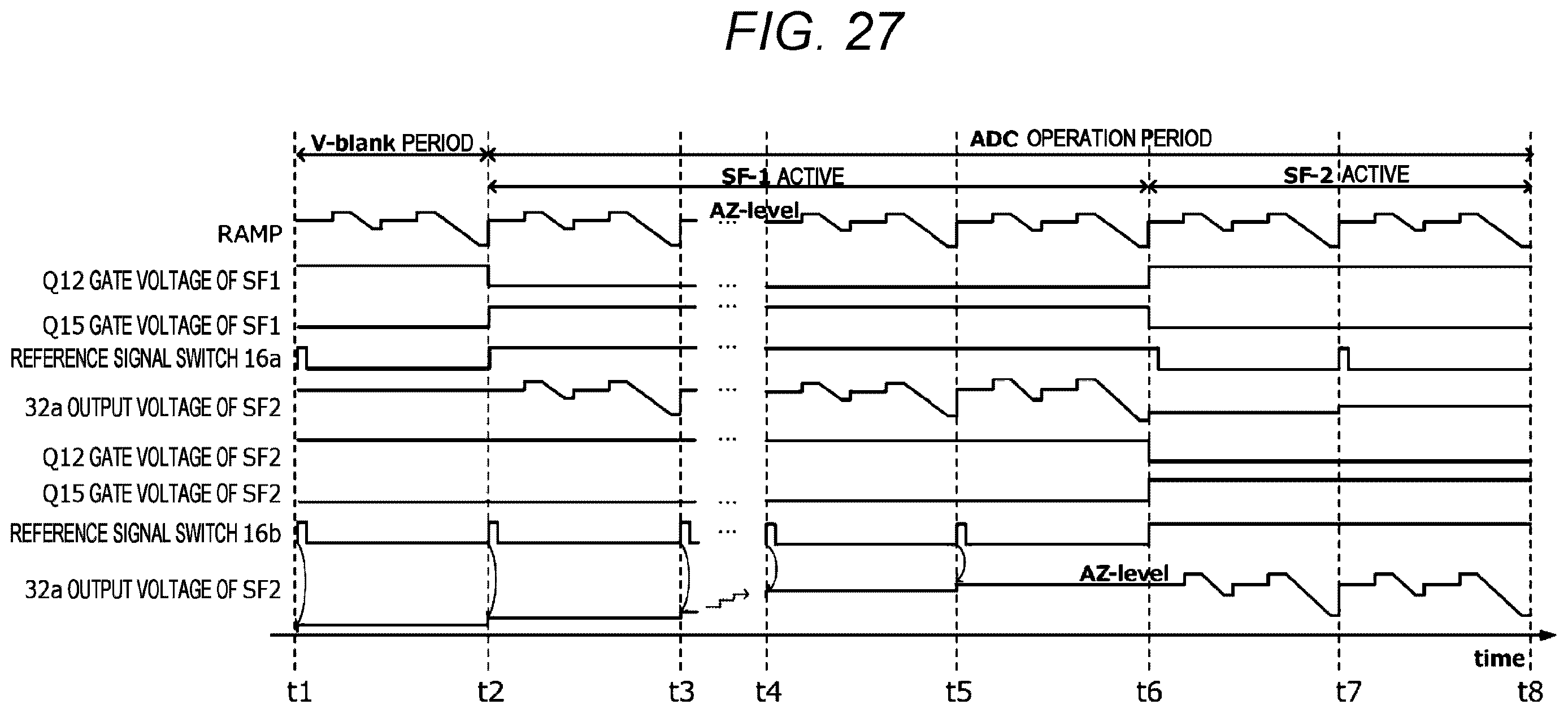

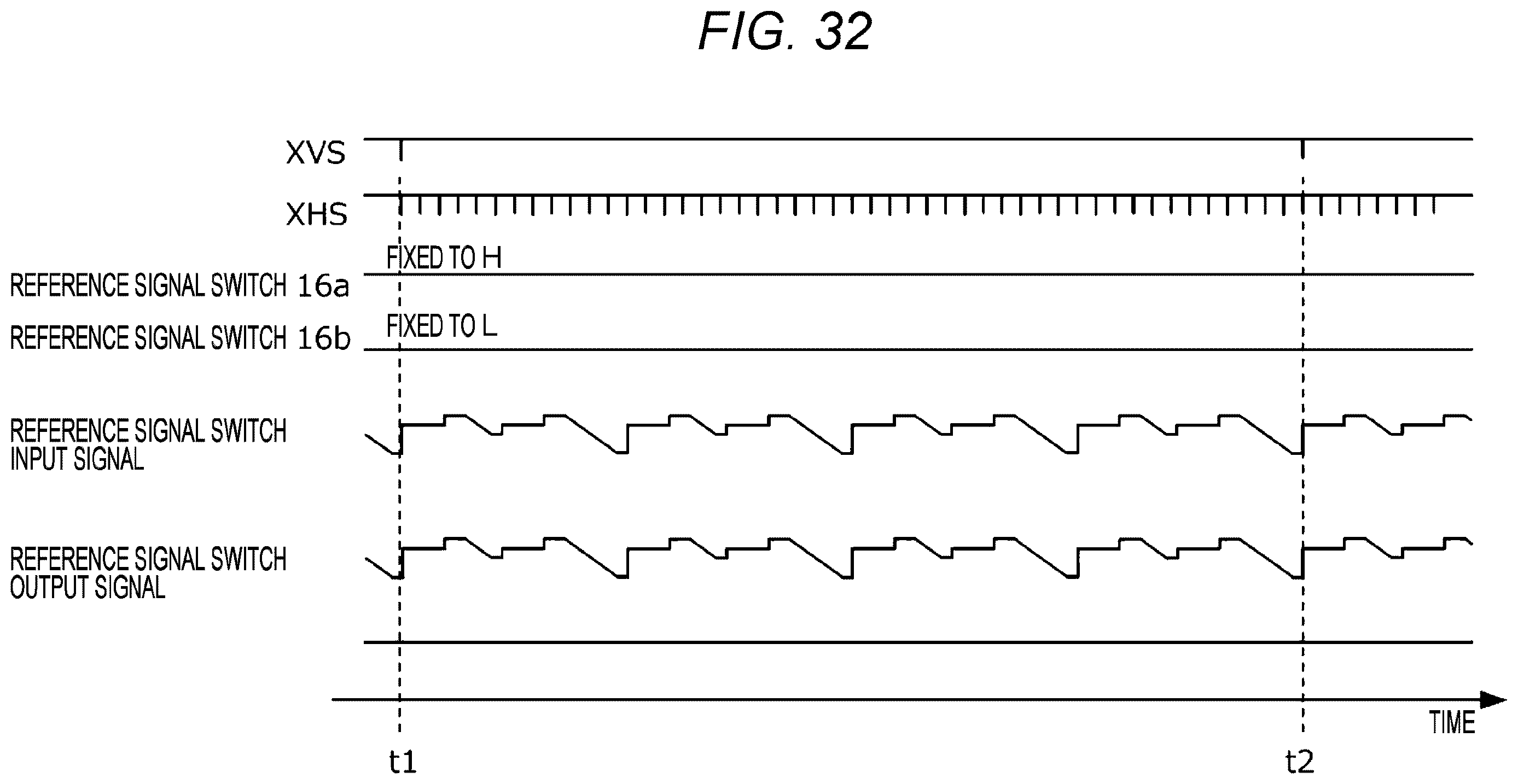

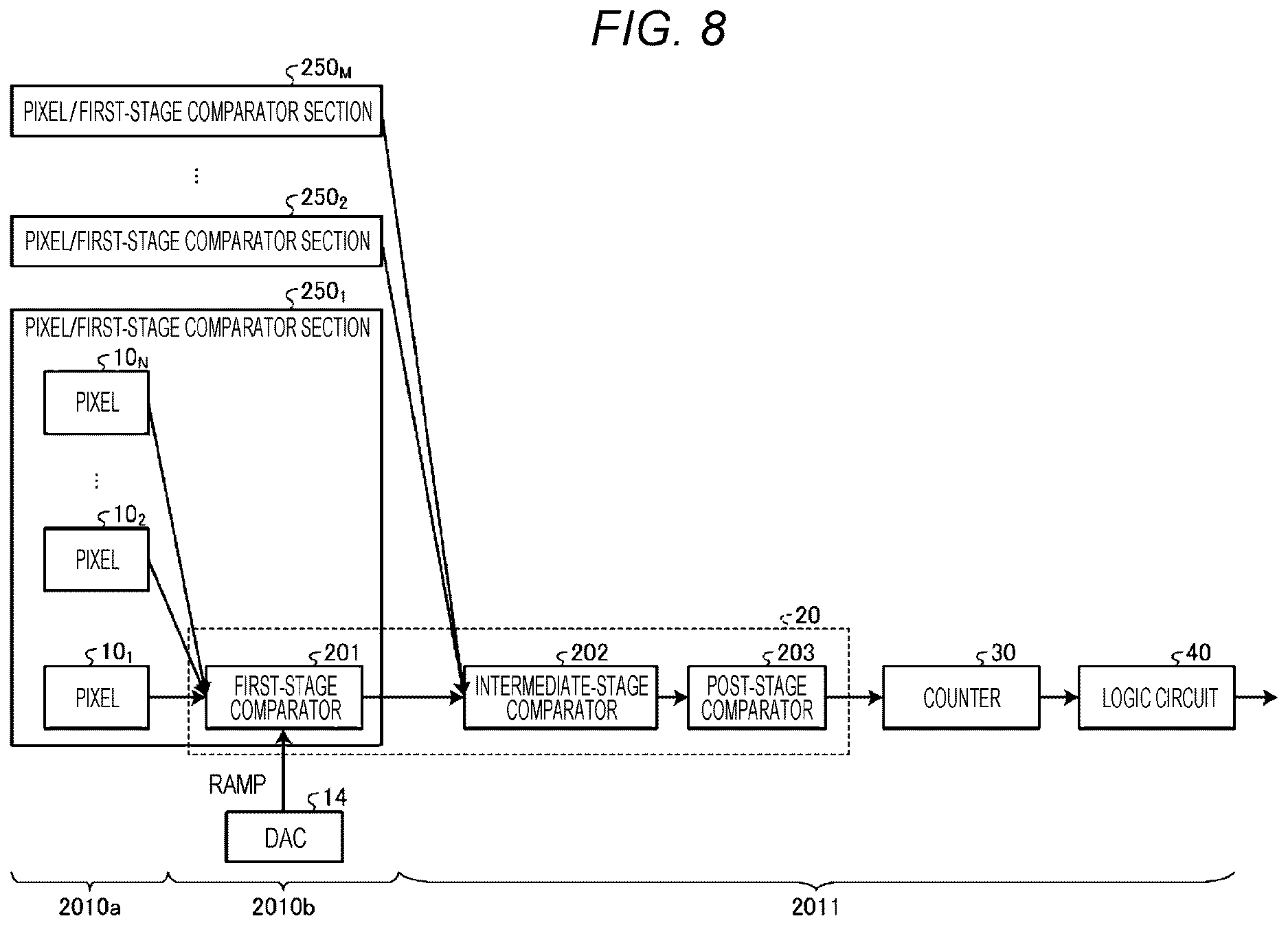

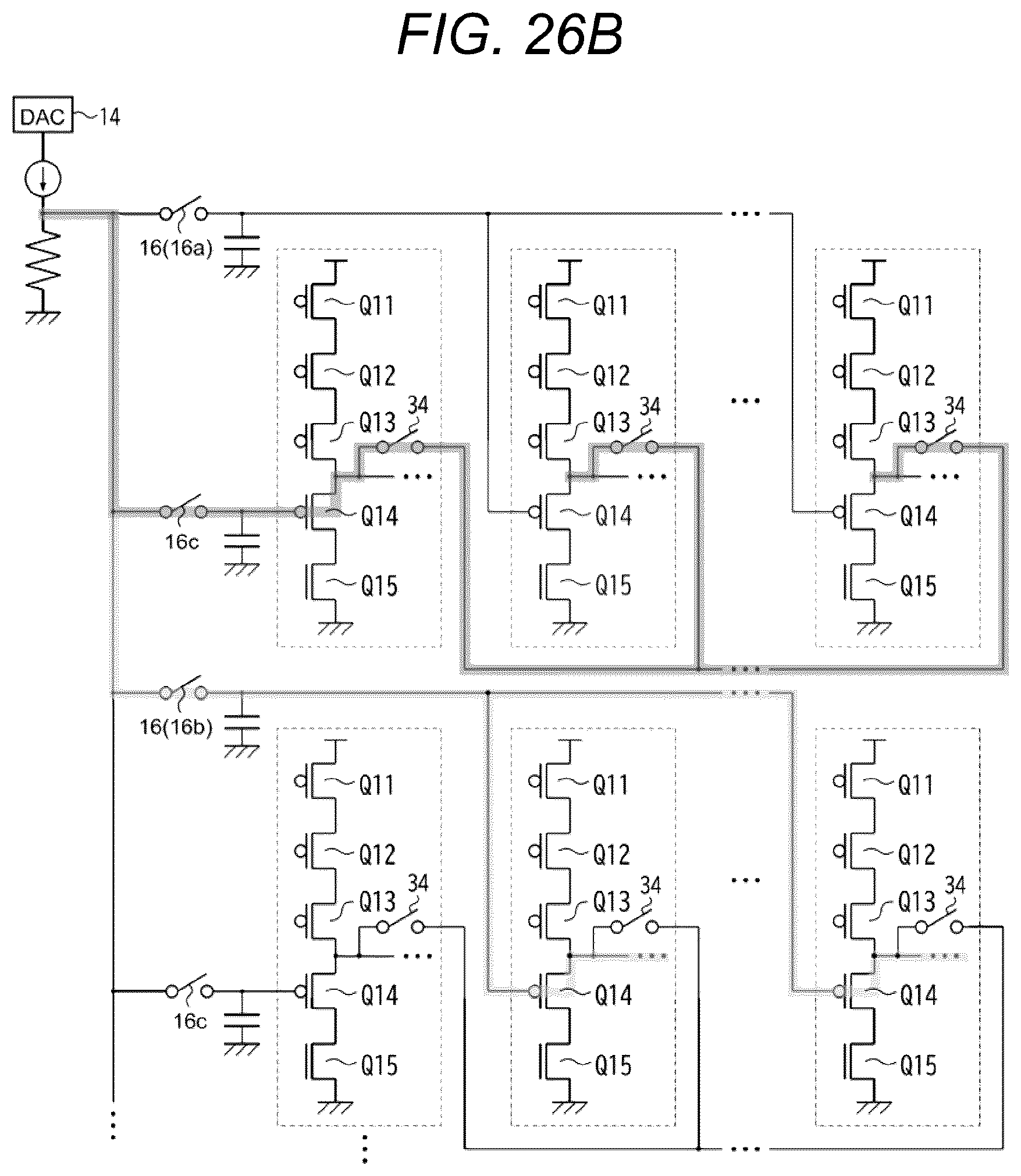

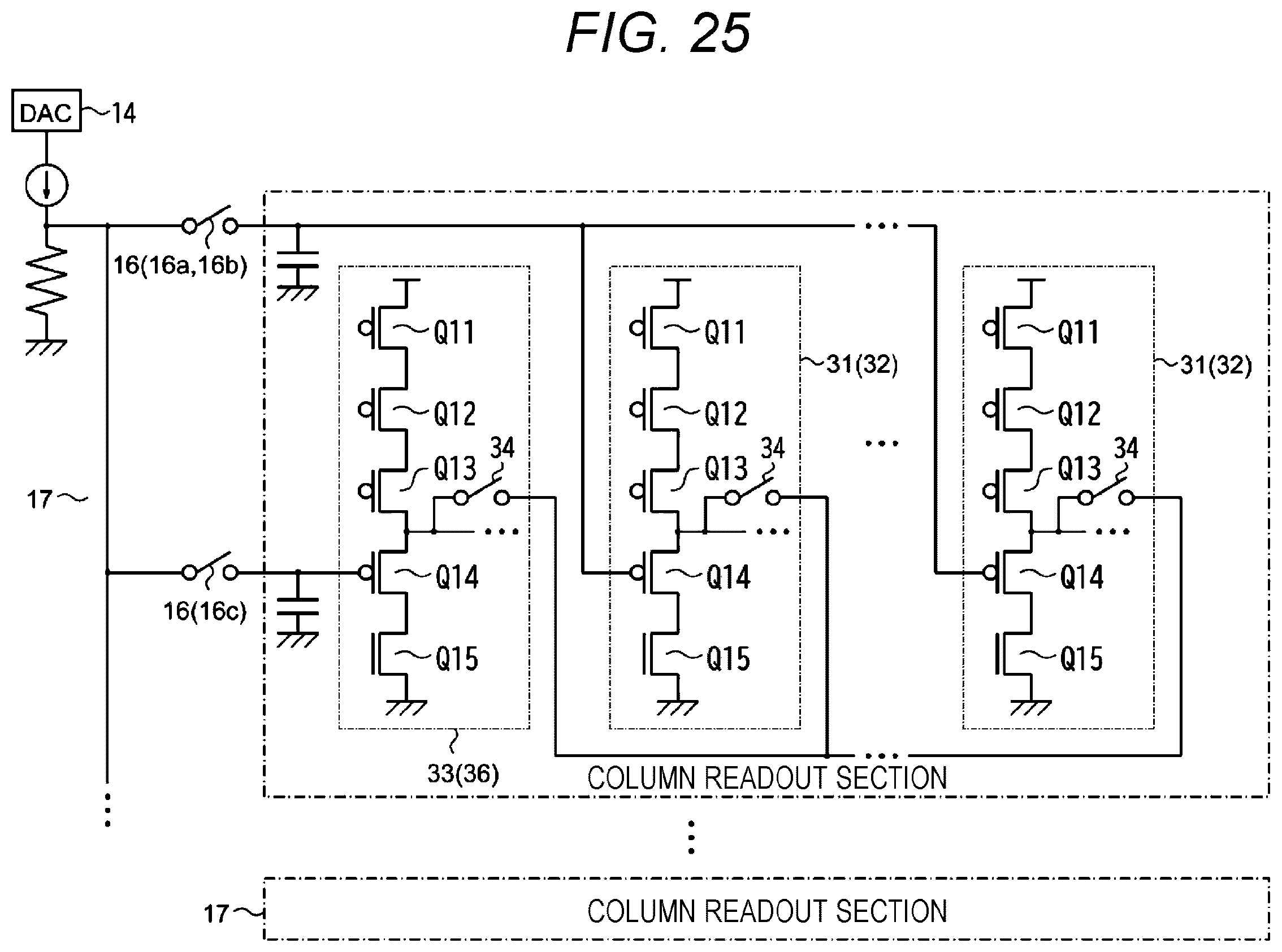

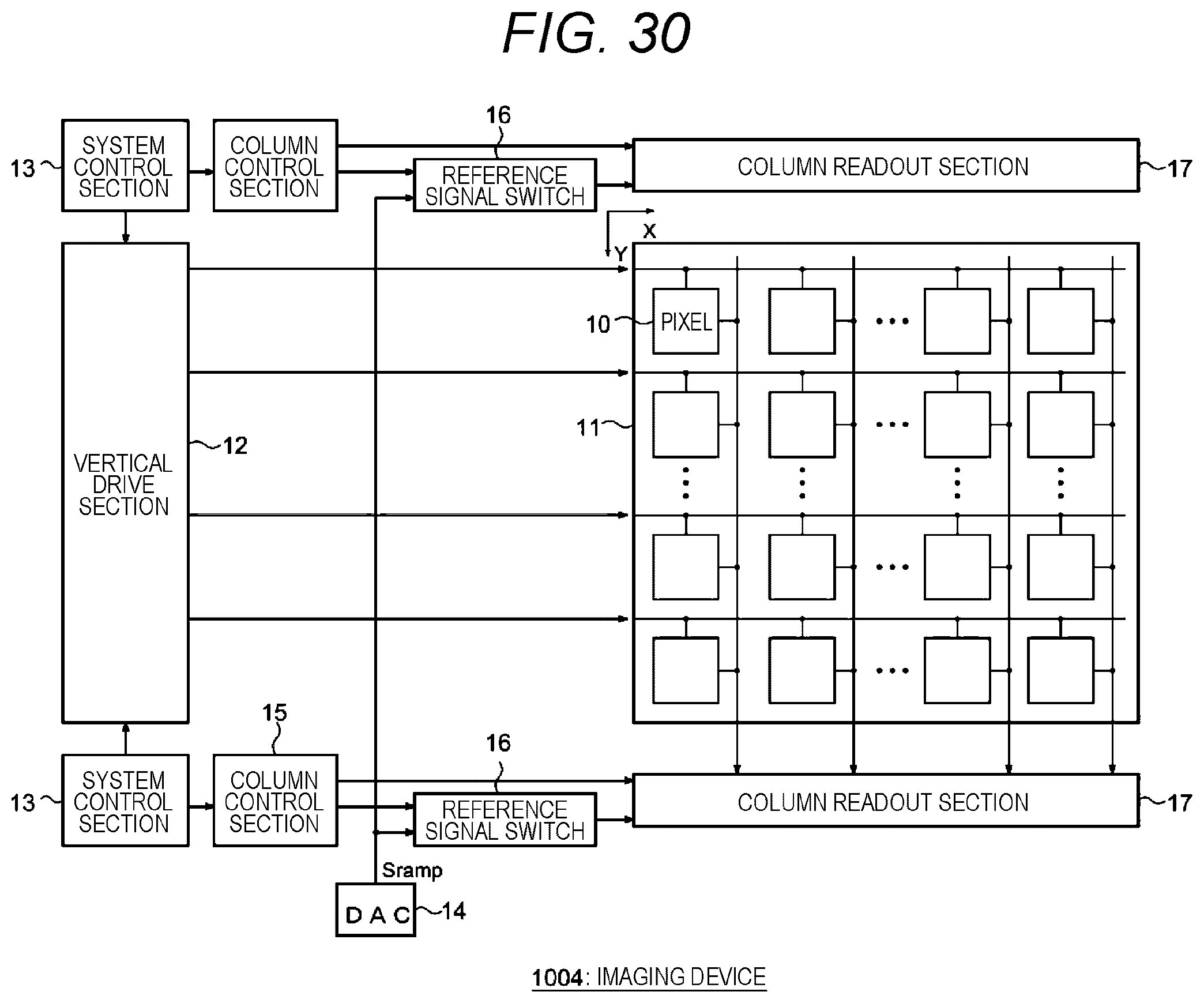

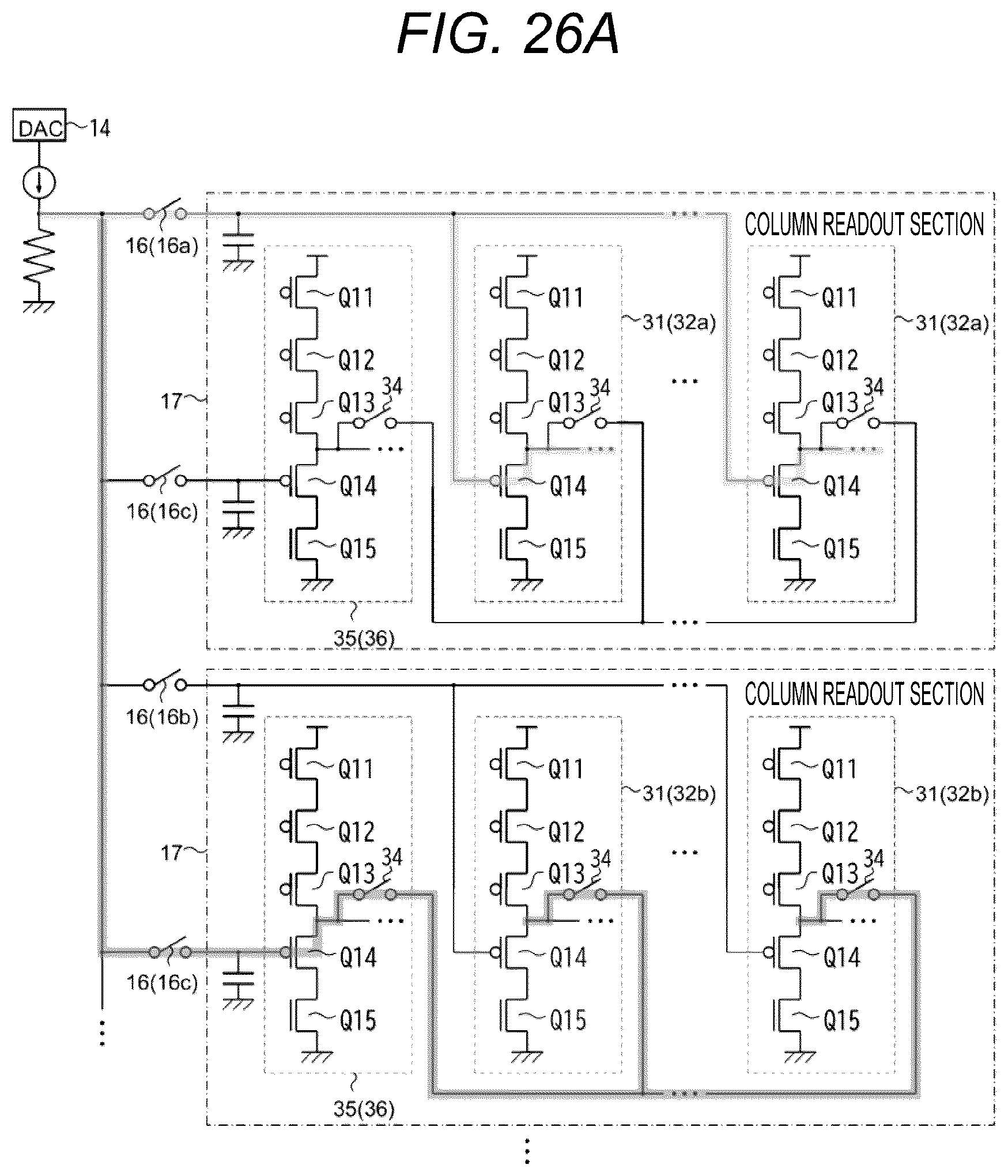

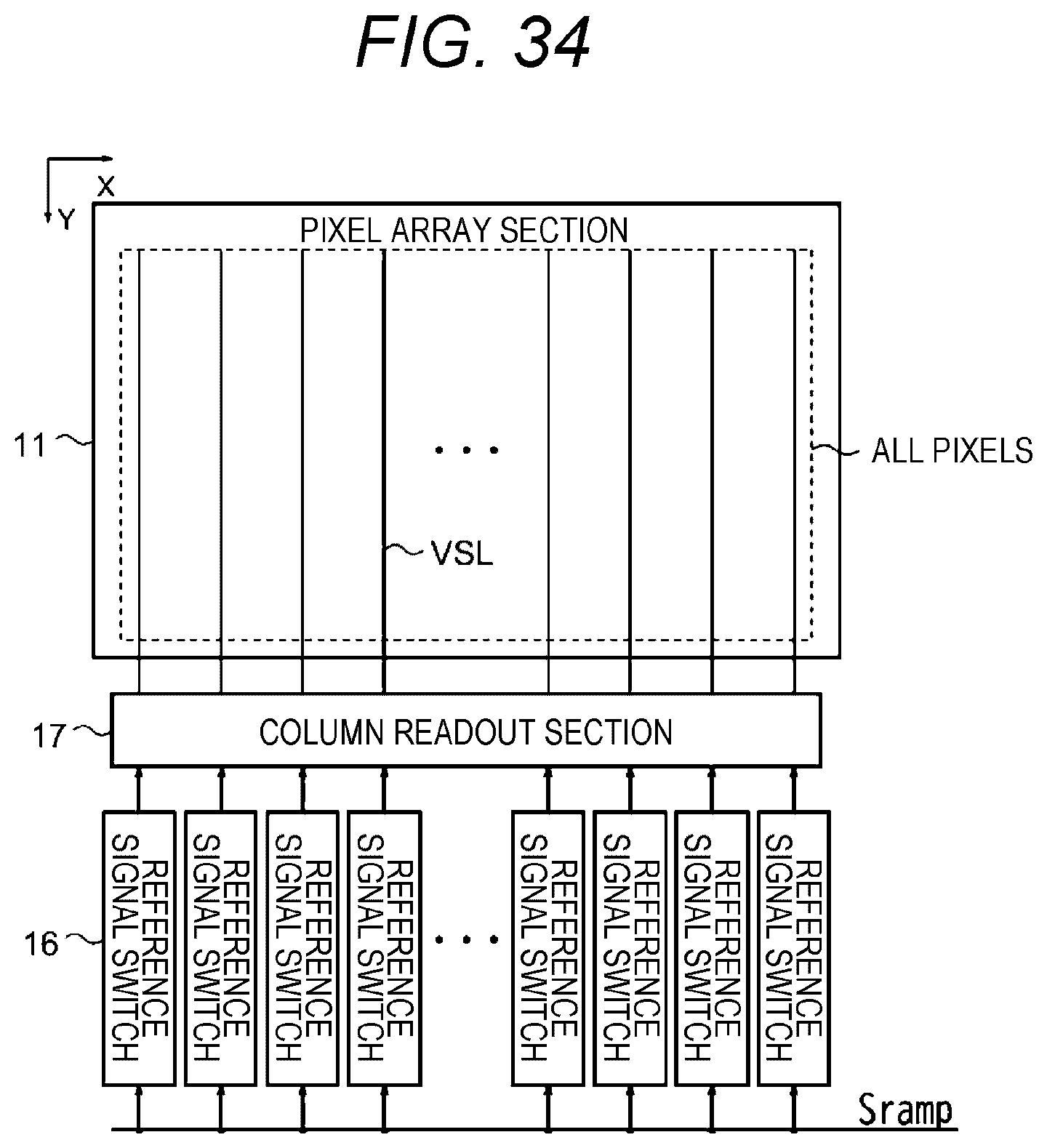

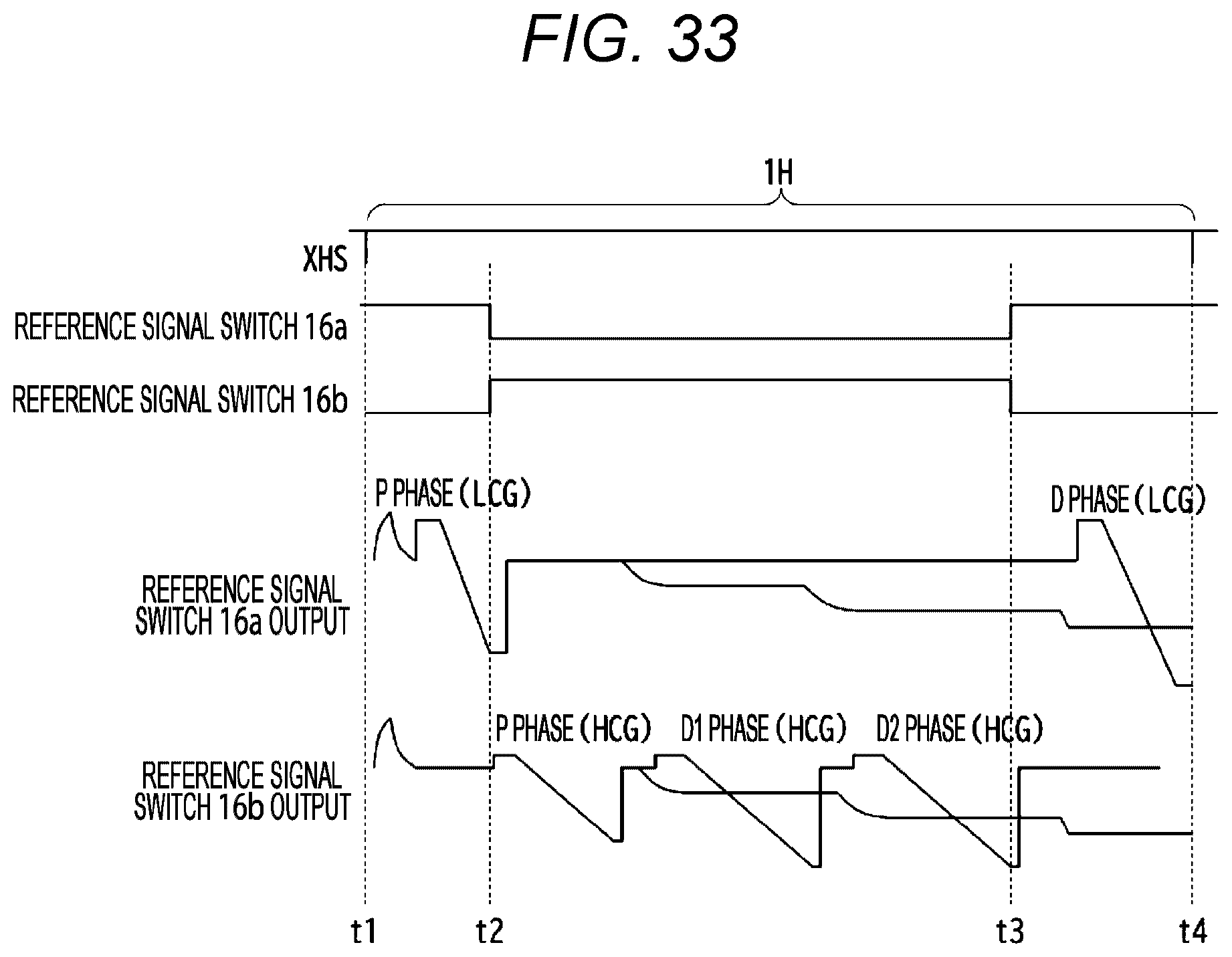

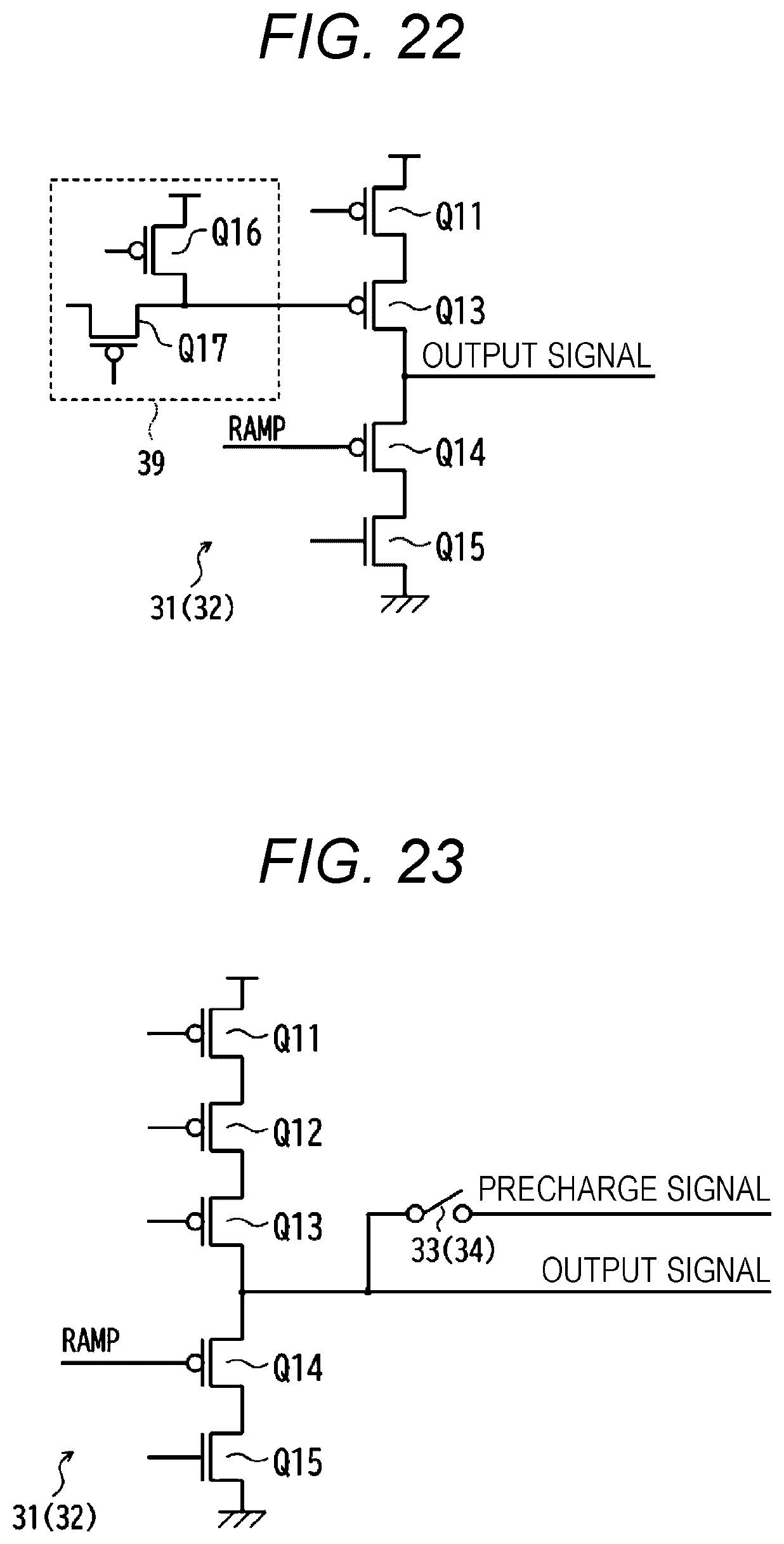

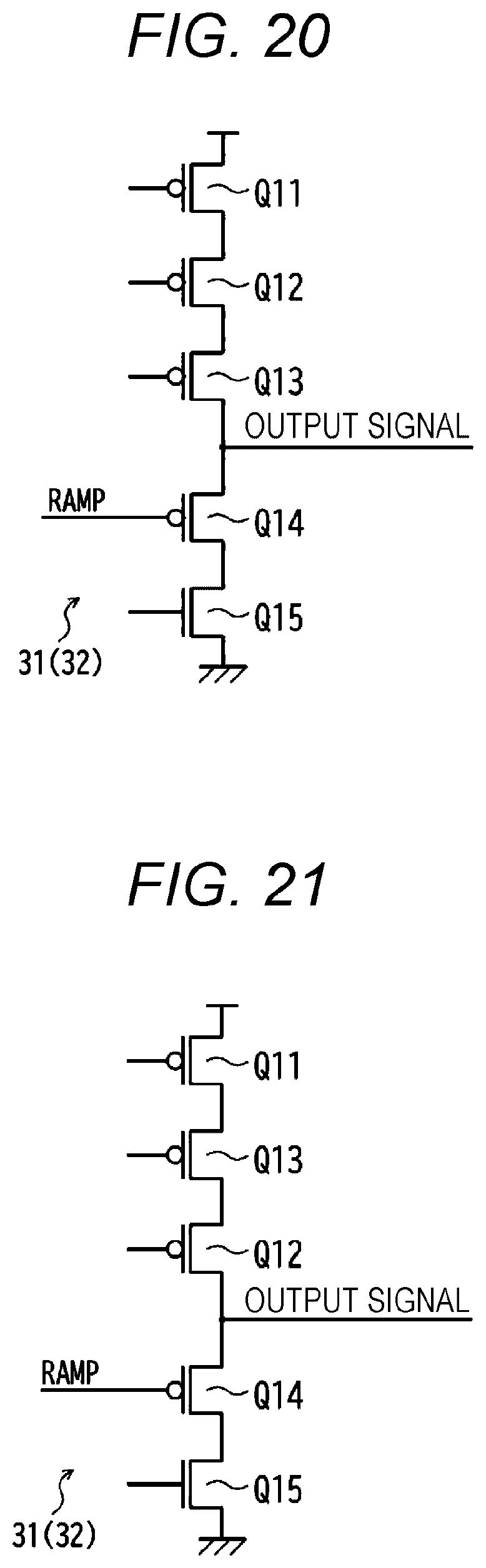

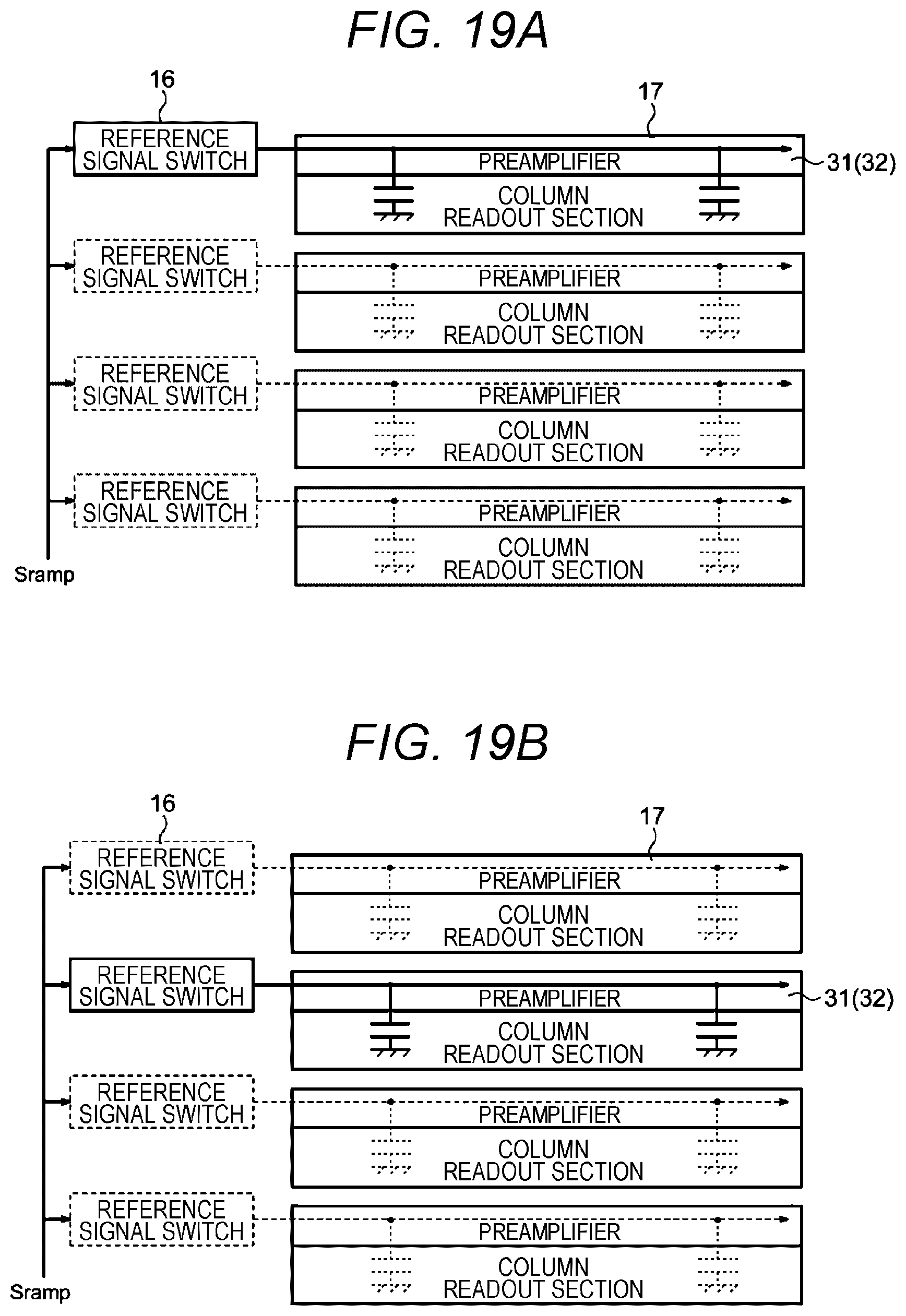

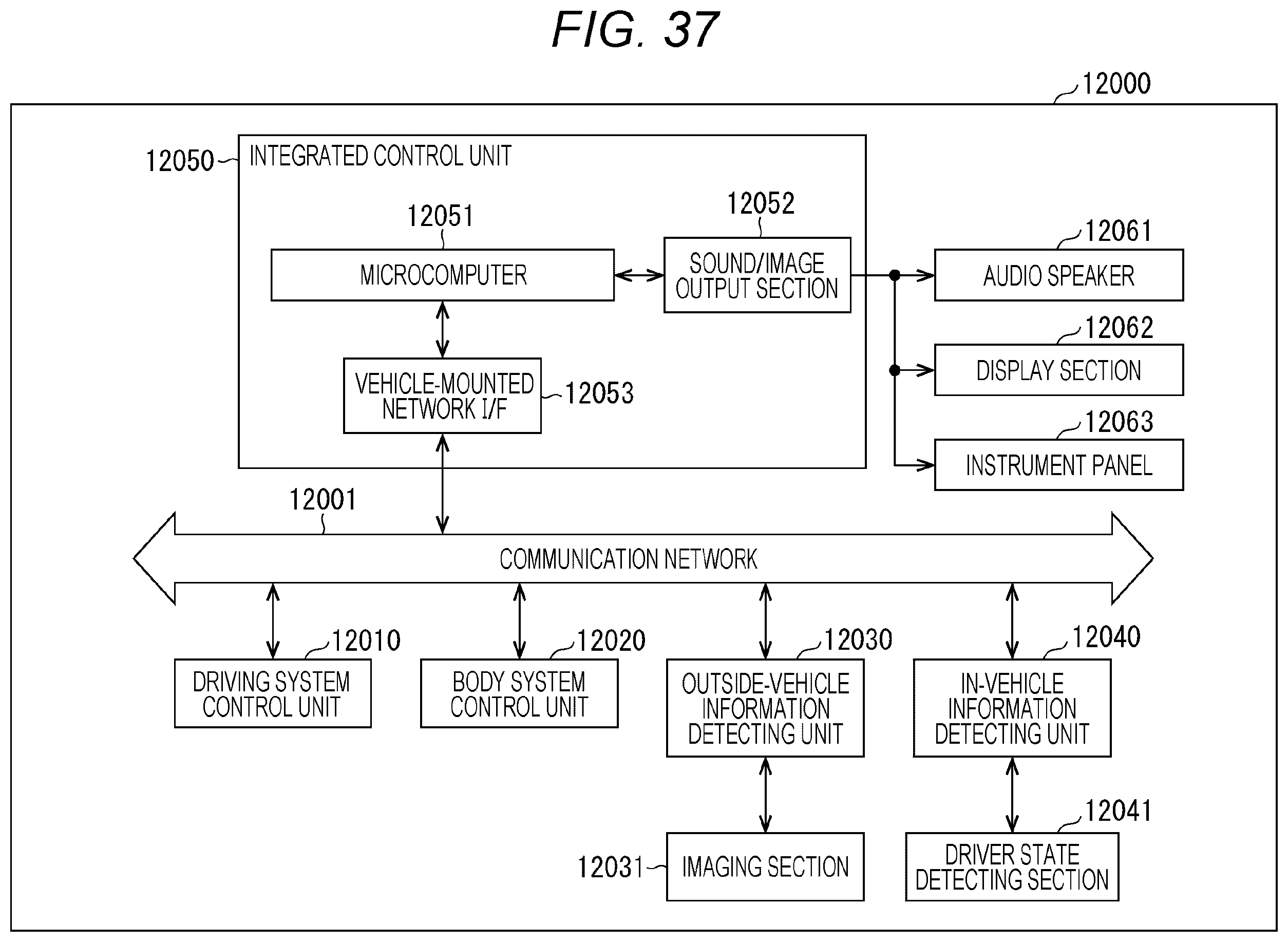

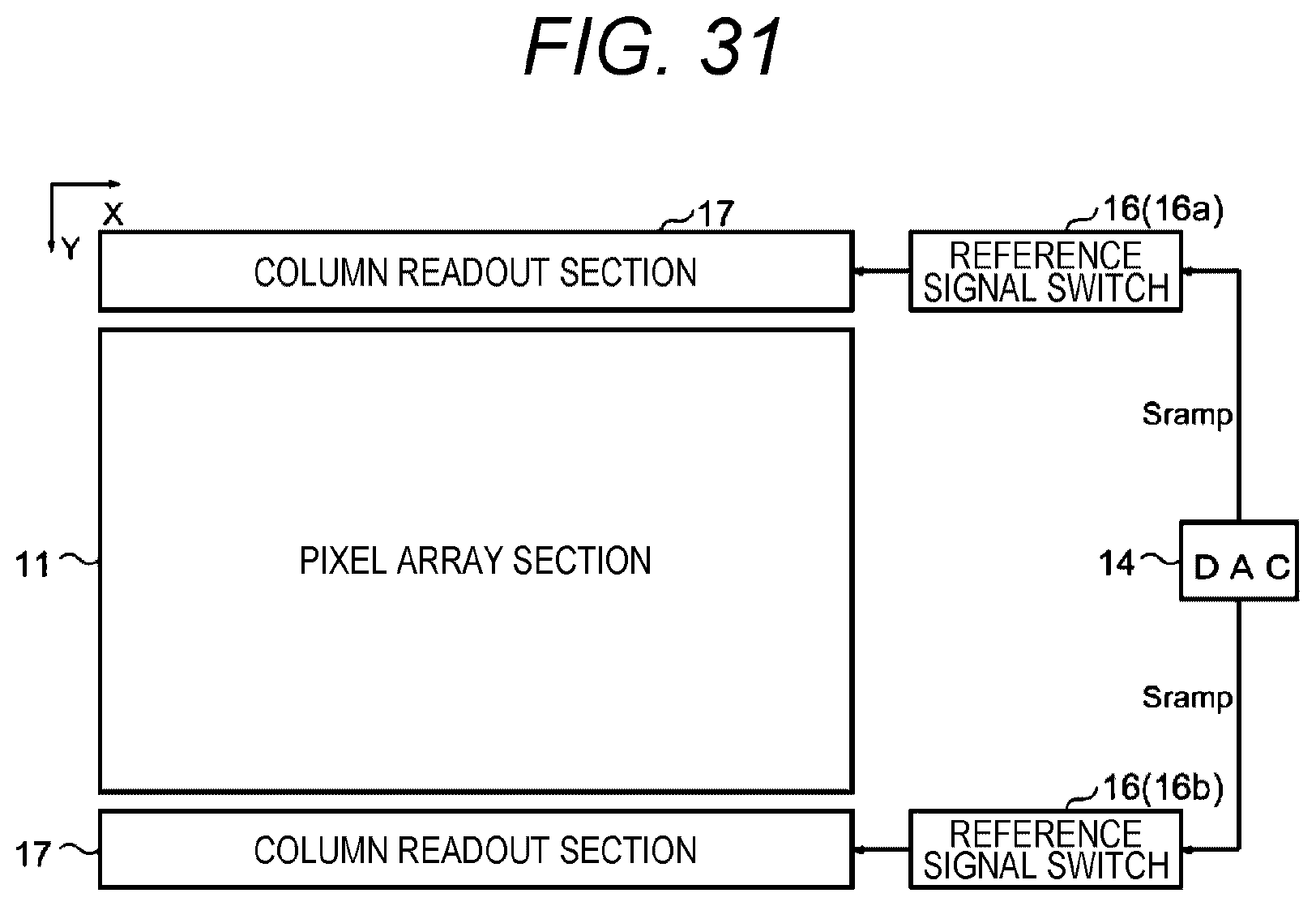

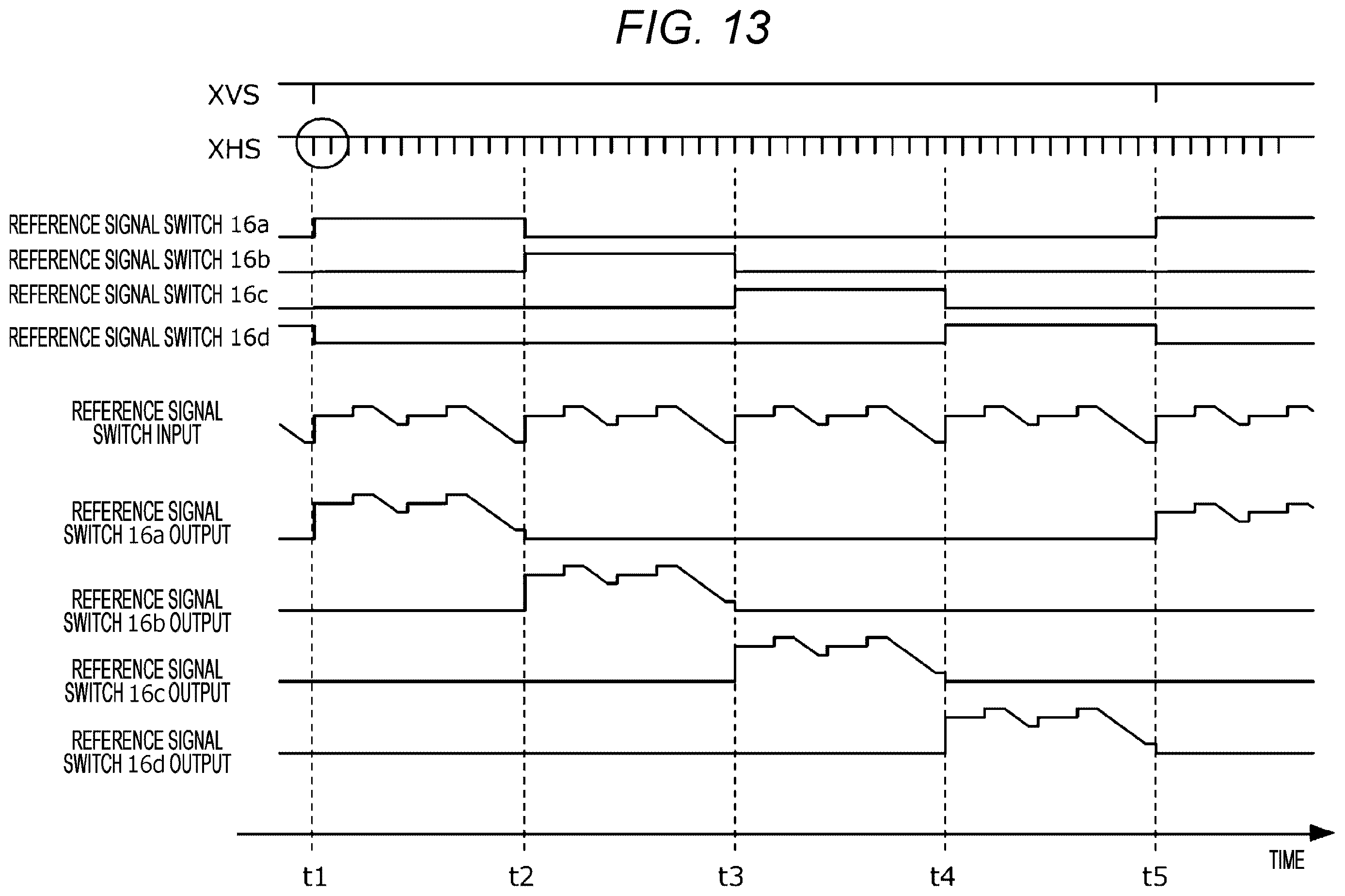

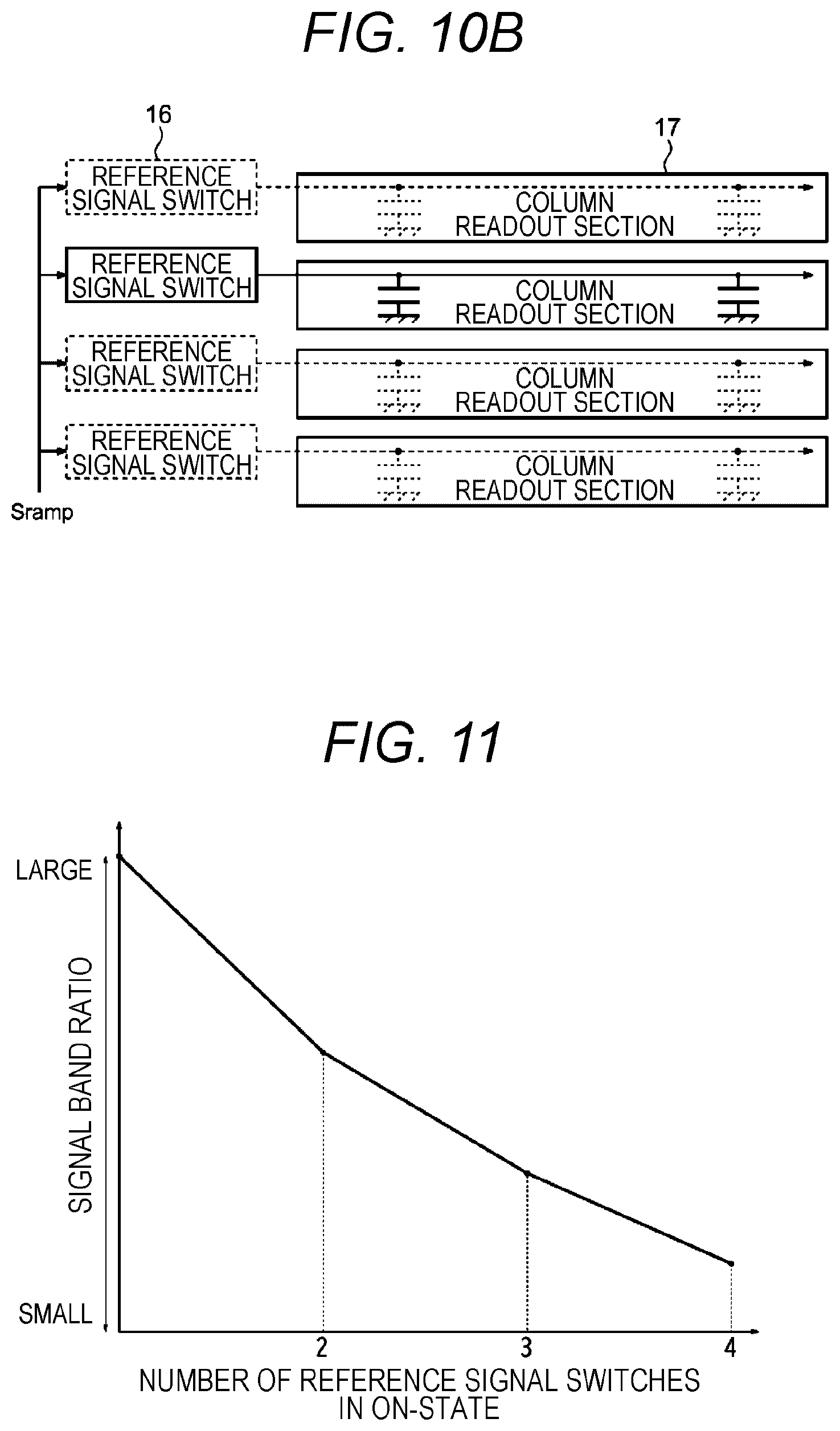

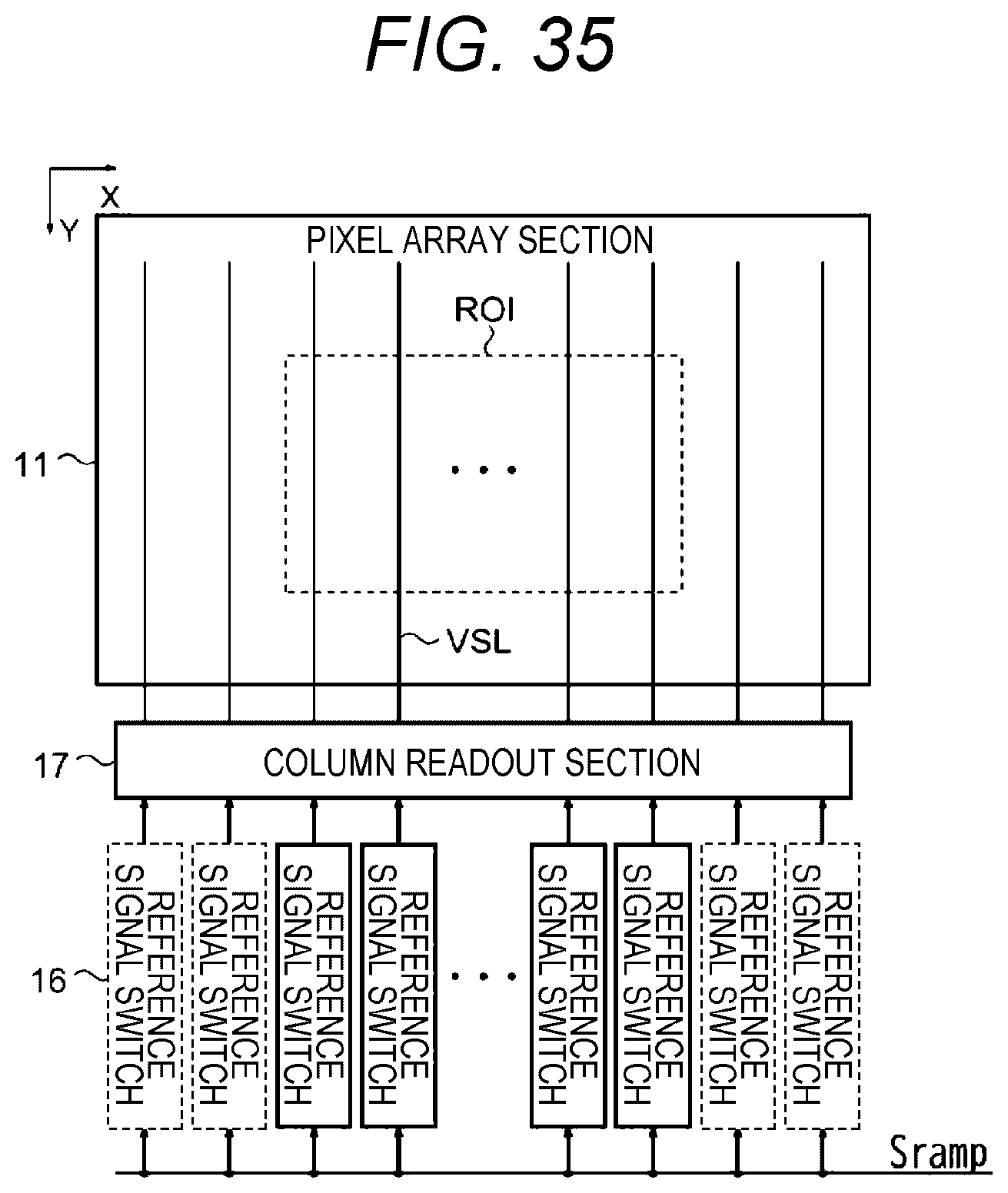

The drawings
