Tesla Patents a Per-Token Precision Trick to Speed Up Its Self-Driving AI

Tesla's newest patent tackles a problem every AI chip faces: the math that makes AI accurate is too slow for real-time driving, but the math that's fast enough tends to make mistakes. This filing describes a way to have both.

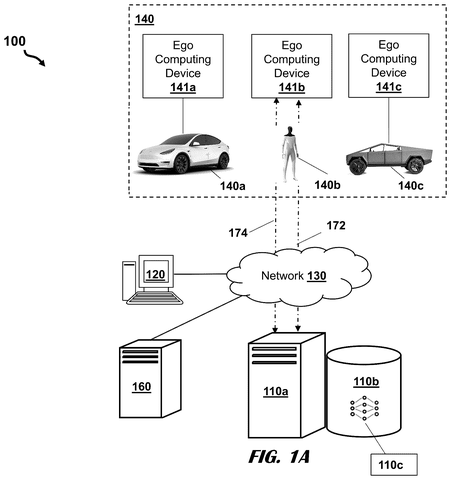

A self-driving car and a human with computing devices connect to a network and servers for AI processing. Drawing from patent filing US 2026/0299881 A1.
A self-driving car and a human with computing devices connect to a network and servers for AI processing.All 12 drawings ↓
Publication number
US 2026/0299881 A1(US20260299881A1)
Applicant
Tesla, Inc.
Filed · Published
Sep 8, 2025 · Oct 1, 2026
Inventors
Ritvik RAWAT, Valeriy ROTAN, Alex SINGH, Srihari SAMPATHKUMAR
Status when we published
Waiting for an examiner
Document
20 claims
US classification
706/21
Parent application
Claims priority from a provisional application 63780053 (filed Mar 28, 2025)

How Tesla's self-driving chip balances speed and accuracy

Ever tried to cram a high-resolution photo into a tiny file without making it look terrible? That tradeoff, quality versus size, is basically what AI chips face every time they process data.

Your car's self-driving system processes sensor readings dozens of times per second. The most accurate calculations use big, precise numbers, but those take more time and power. Cheaper, smaller numbers are faster but less accurate. Tesla's patent describes a method where the chip automatically figures out, for each individual chunk of data, exactly how much precision that chunk needs, then converts it on the fly before doing the heavy math.

The result is that the AI can use fast, low-power hardware for most of the work, while keeping accuracy where it counts. That means the same chip can do more thinking in less time, which matters a lot when your car is deciding whether something in the road is a shadow or a rock.

From the filing · CLAIM 1
generating, by the processor, a token scale factor based on a range of values associated with the token; and executing, by the processor, a quantization operation on the token of the input data using the token scale factor …

Translation: It calculates a custom scale for each token to safely shrink its data size.

How the quantization layer rescales each token before compute

The patent describes a transformer architecture (the same class of AI model that powers large language models, adapted here for sensor data) that runs in mixed precision: different parts of the calculation use different numeric formats depending on what is needed.

The key mechanism is a dynamic quantization layer. "Quantization" means converting a high-precision floating-point number (think: a decimal carried out to many places) into a lower-precision integer (a rounded whole number). Tesla's system does this not once globally, but per token. A "token" here is a discrete chunk of input data, such as a patch of a camera image or a slice of a LiDAR scan.

For each token, the system:

  • Inspects the range of values inside that token
  • Calculates a scale factor tuned to that specific range
  • Converts the token from high-precision (FP32, or 32-bit floating point) down to low-precision (INT8, or 8-bit integer) using that scale factor
  • Passes the scaled-down token to fast integer multiply-accumulate (MAC) hardware, which is far more power-efficient than floating-point units

Because each token gets its own scale factor rather than sharing one global setting, the precision loss is minimized. The hardware described includes both INT8 MAC units (fast, efficient integer math) and FP32 SIMD processors (slower but fully precise, used where needed), letting the chip allocate the right tool to each part of the job.

From the filing · THE ABSTRACT
The machine-learning architecture implements a transformer that includes dynamic quantization layers that dynamically quantize tensors, per-token, for downstream operations …

Translation: The system adjusts the data precision token by token as it flows through the AI model.

What this means for Tesla's in-car AI chip performance

For Tesla, the constraint is real: the AI computer inside a car must process multiple camera feeds, radar, and other sensors in real time, all on a power budget that won't drain the battery or overheat the cabin. Getting more AI throughput without bigger, hotter chips is a genuine engineering priority, and per-token dynamic quantization is one of the more principled ways to do it.

For you as a driver, this kind of optimization is what allows the same physical hardware to handle increasingly capable AI models over time, potentially through software updates rather than new chips. the pattern in Tesla's AI silicon filings points toward the company wanting its vehicles to do more computation onboard rather than relying on cloud processing, and this patent fits that direction precisely.

Tesla's second filing we've tracked in the AI chip competition since October follows its method to tune in-car chips.

Source: US 2026/0299881 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Tesla patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 12 sheets

12 drawing sheets from US 2026/0299881 A1 · click any drawing to enlarge

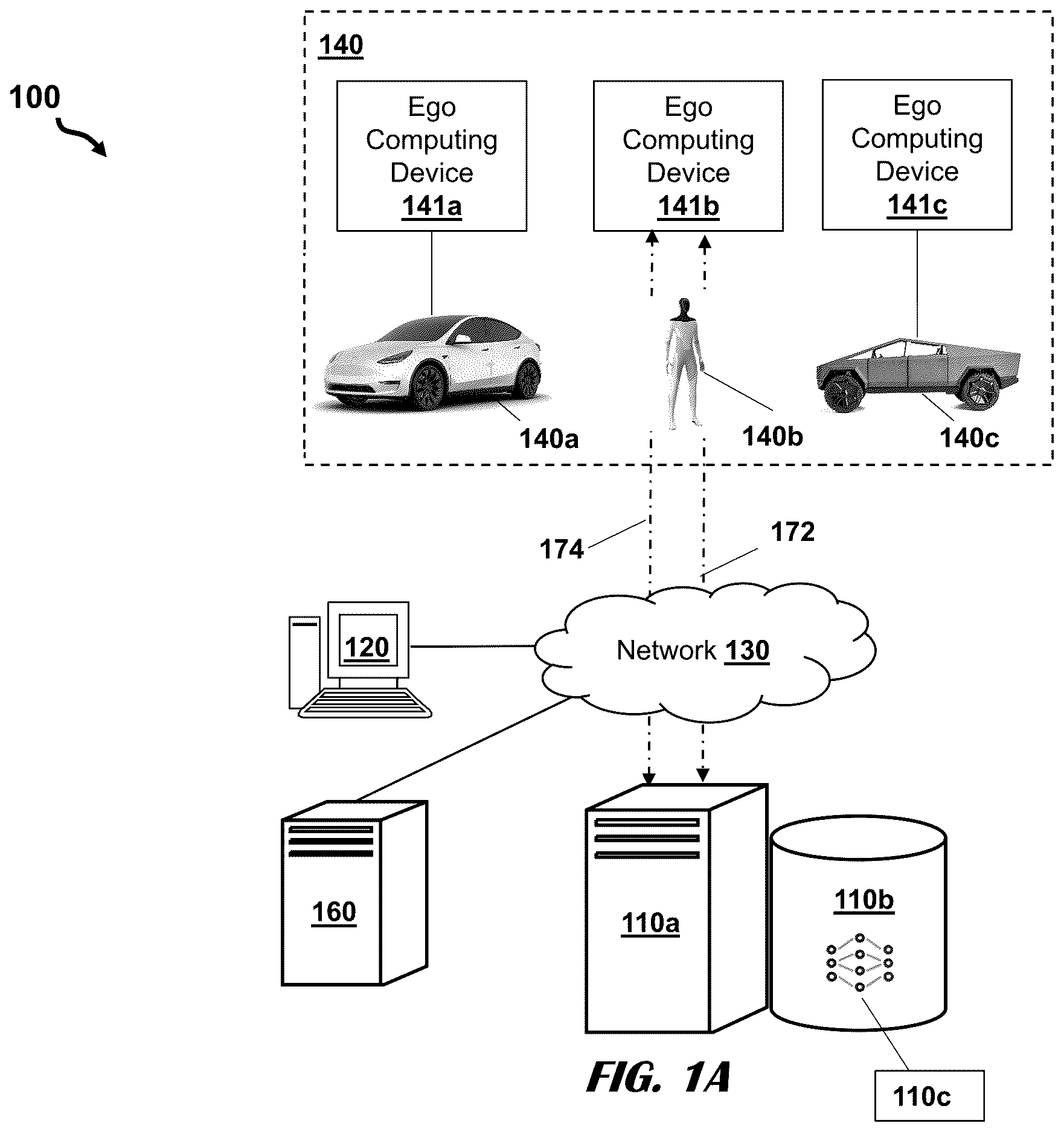

Self-driving cars and AI system., drawing sheet 1 from US 2026/0299881 A1
Sheet 1 Self-driving cars and AI system.

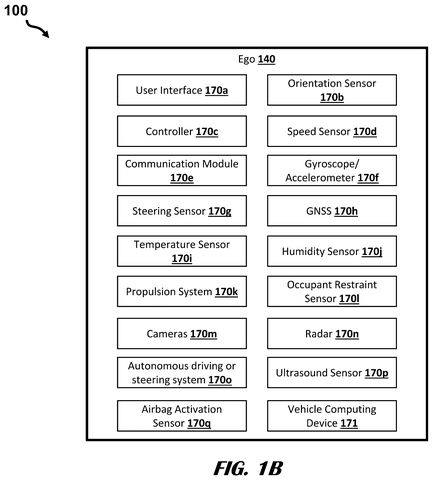

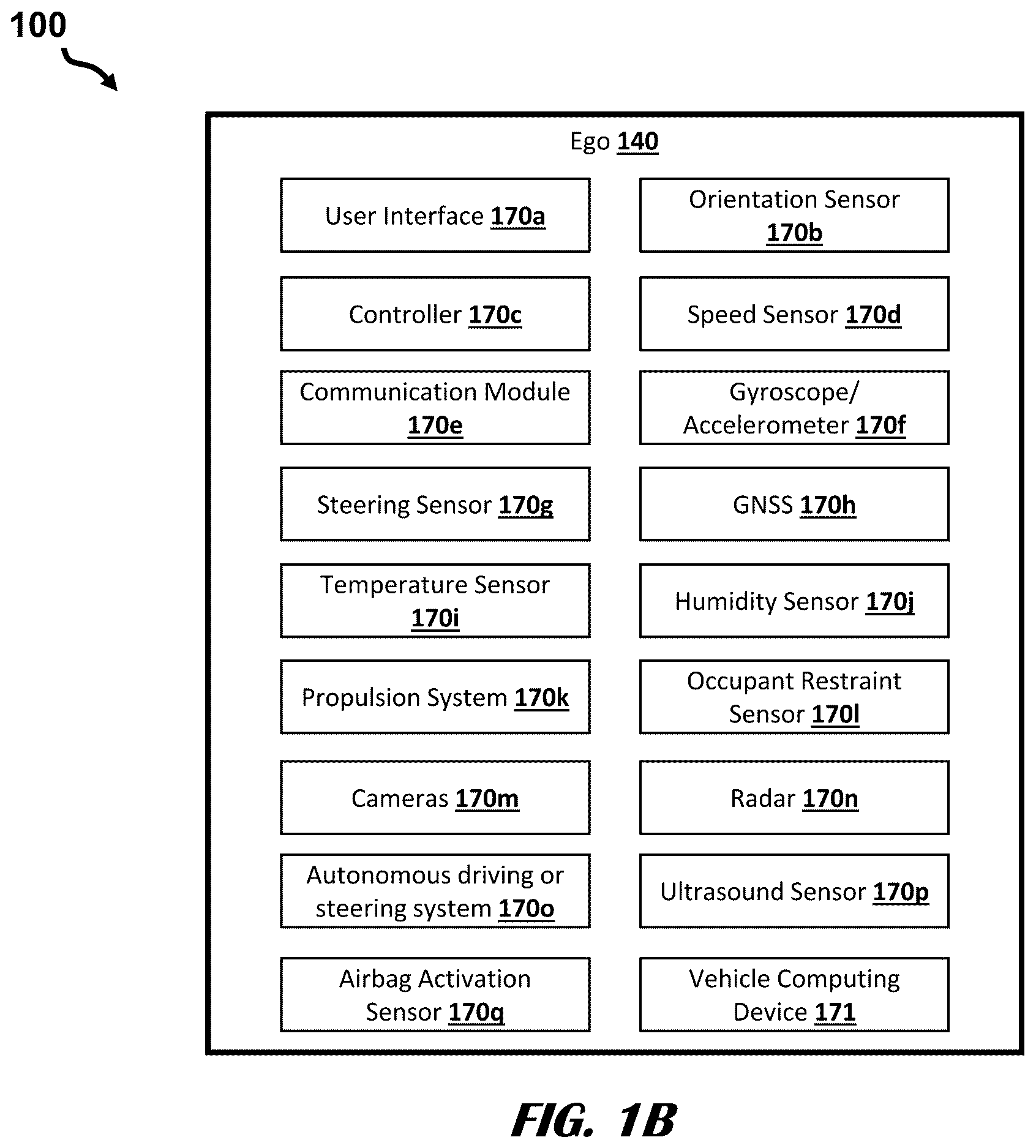

Self-driving car sensors and controls., drawing sheet 2 from US 2026/0299881 A1
Sheet 2 Self-driving car sensors and controls.

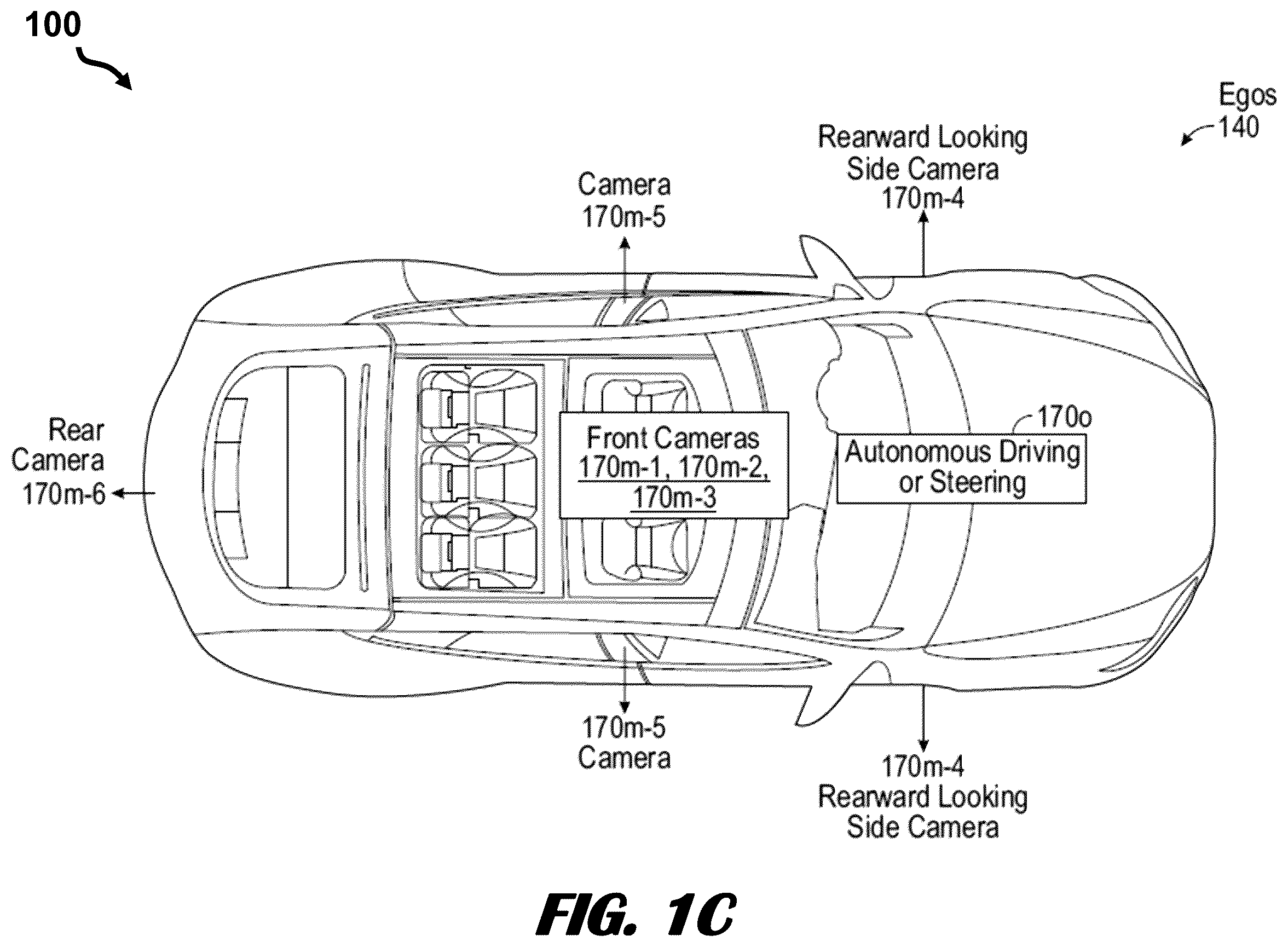

Self-driving car with cameras., drawing sheet 3 from US 2026/0299881 A1
Sheet 3 Self-driving car with cameras.

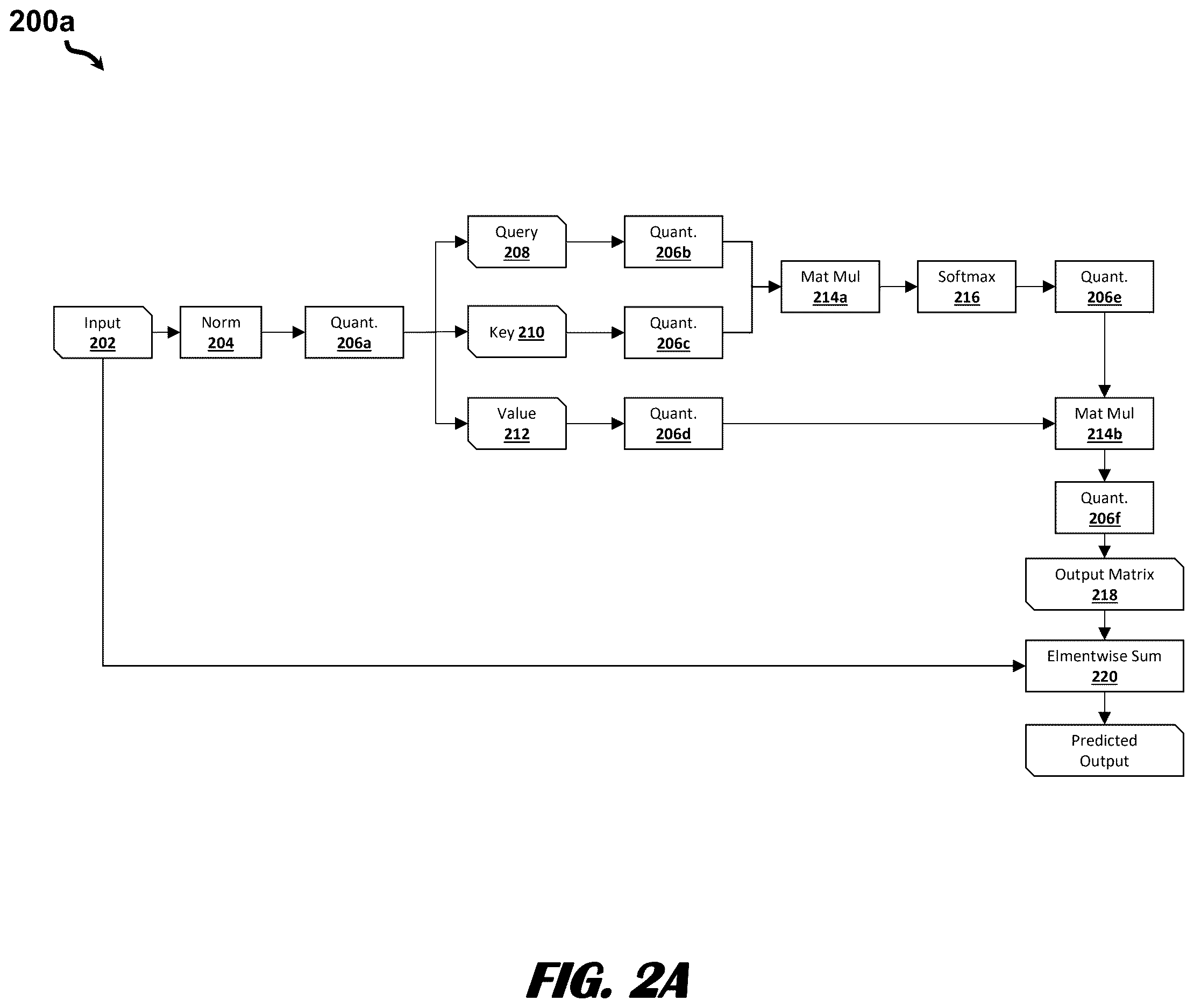

Neural network attention mechanism., drawing sheet 4 from US 2026/0299881 A1
Sheet 4 Neural network attention mechanism.

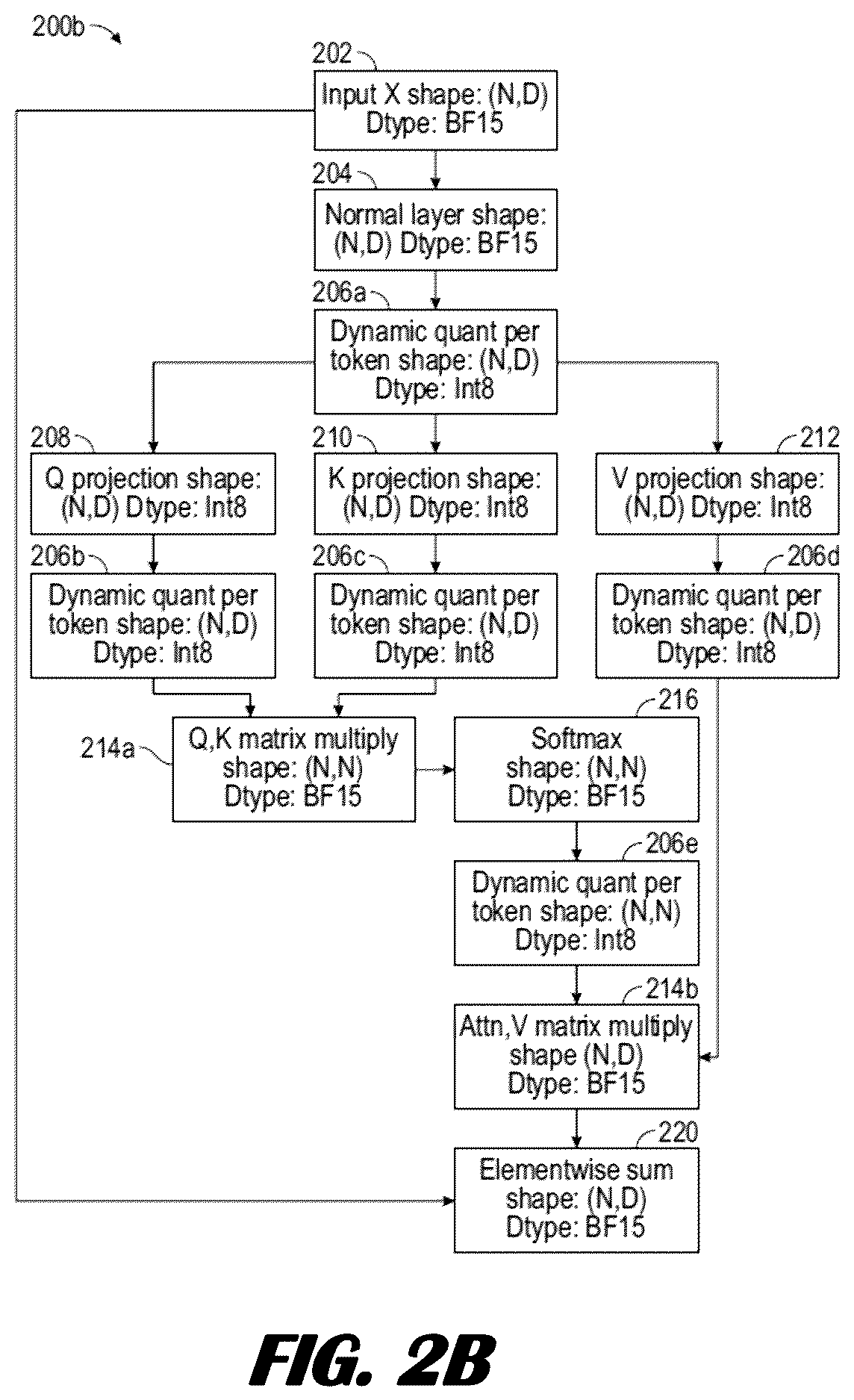

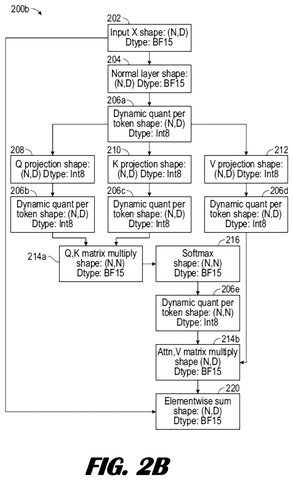

Neural network attention mechanism details., drawing sheet 5 from US 2026/0299881 A1
Sheet 5 Neural network attention mechanism details.

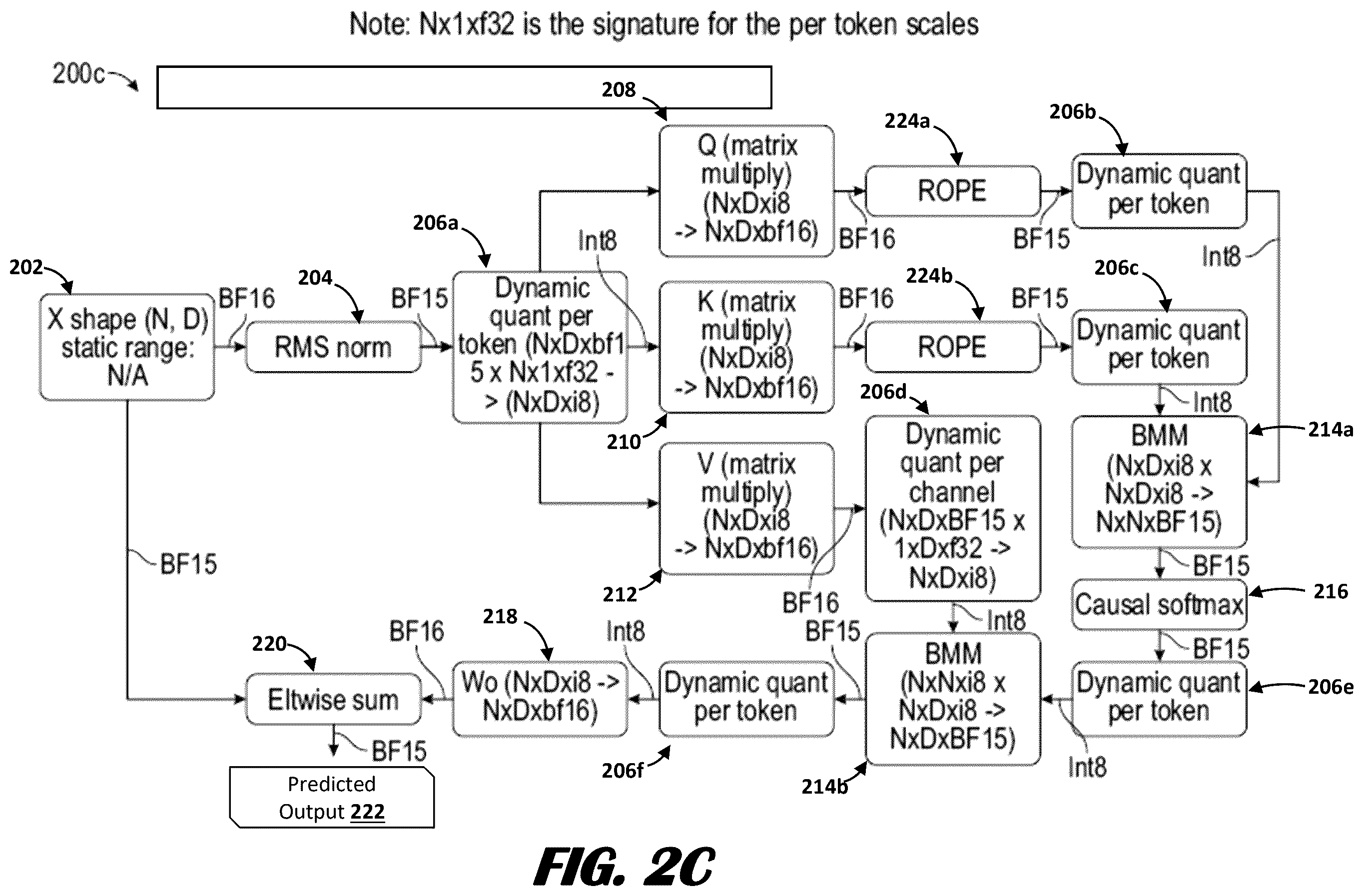

Quantized neural network attention., drawing sheet 6 from US 2026/0299881 A1
Sheet 6 Quantized neural network attention.

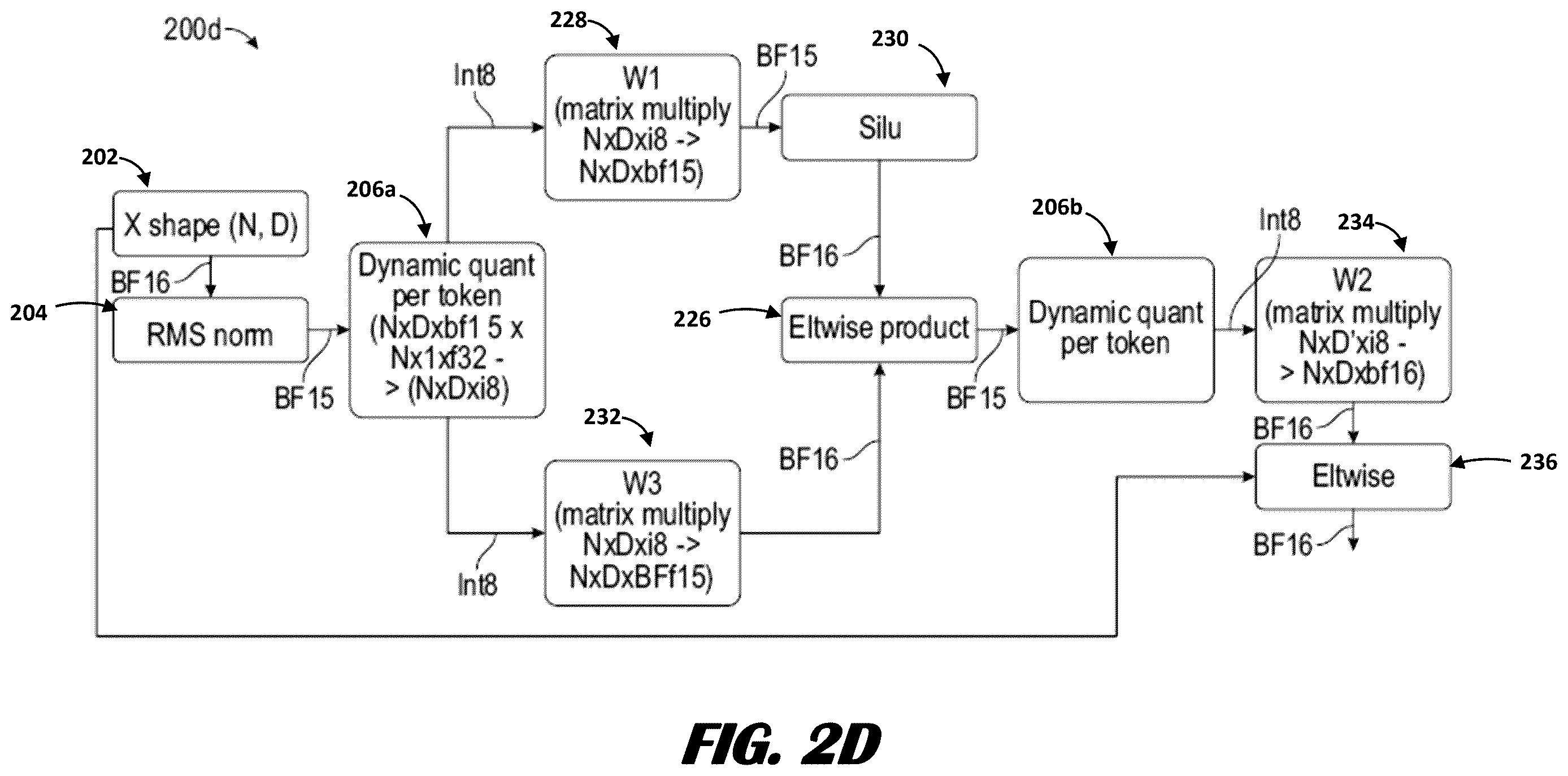

Quantized neural network feedforward., drawing sheet 7 from US 2026/0299881 A1
Sheet 7 Quantized neural network feedforward.

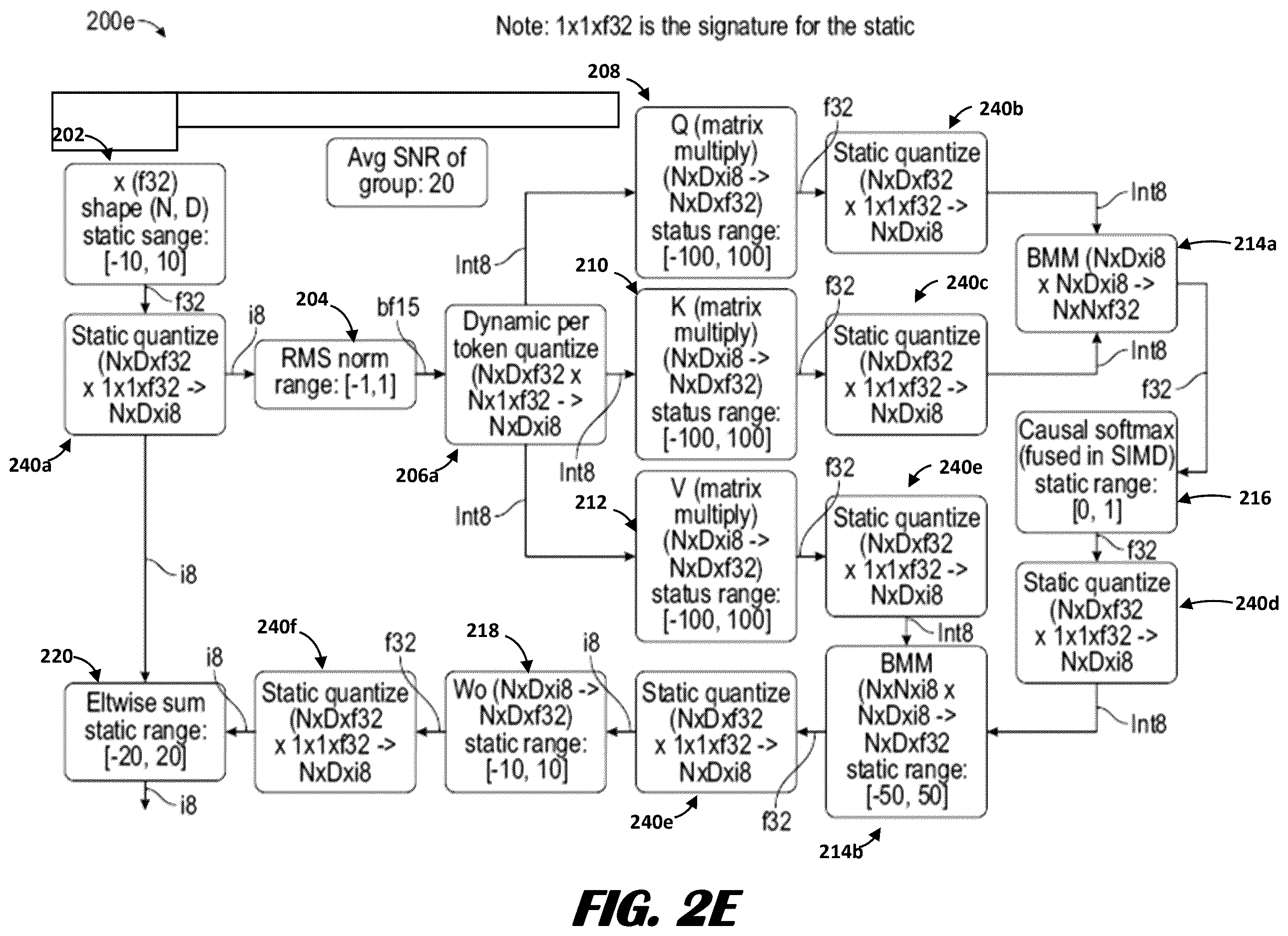

Static quantized neural network., drawing sheet 8 from US 2026/0299881 A1
