Microsoft · Chip · Filed Mar 13, 2026 · USPTO published Oct 1, 2026 · Oct 1 release

Microsoft Patents a System That Shifts Storage Space Automatically as Task Demands Change

When a chip's memory is carved into fixed buckets, some buckets overflow while others sit empty. Microsoft's new patent describes a controller that watches those buckets in real time and redraws the lines.

A processor-based device with a storage controller circuit manages dedicated storage by dynamically adjusting memory pools and thresholds based on usage statistics. Drawing from patent filing US 2026/0299806 A1.
A processor-based device with a storage controller circuit manages dedicated storage by dynamically adjusting memory pools and thresholds based on usage statistics.All 6 drawings ↓
Publication number
US 2026/0299806 A1(US20260299806A1)
Applicant
Microsoft Technology Licensing, LLC
Filed · Published
Mar 13, 2026 · Oct 1, 2026
Inventors
Cameron CARD, Thomas BASNIGHT, Jason PANAVICH, Venkata Ravichandra RAVI
Status when we published
Waiting for an examiner
Document
20 claims
US classification
711/154
Parent application
Continuation of 18/680,356 (filed May 31, 2024)(18680356)

How Microsoft's self-adjusting memory pools actually work

Today's processors often divide their internal storage into separate sections, each reserved for a different type of task. The problem is that those sections are usually set at a fixed size, so a busy section can run out of room even when the section next to it is half-empty.

Microsoft's patent describes a controller that watches how much of each section gets used over a measured window of time. If one section is consistently packed while another is consistently light, the controller adjusts the size limits, giving more room to the busy section and pulling back from the idle one. No human has to intervene.

The idea is that memory allocation tracks actual demand rather than a one-size guess made at setup time. For devices running many different jobs at once, that could mean fewer slowdowns when one task suddenly needs more breathing room.

From the filing · CLAIM 1
collect a usage statistic for the pool during a sampling period; determine, based on the usage statistic, whether to modify the pool threshold value corresponding to the pool among the plurality of pool threshold values; and responsive to determining to modify the pool threshold value corresponding to the pool, modify the pool threshold value based on the usage statistic.

Translation: The system monitors usage over time to decide if storage limits need to be changed.

How the controller tracks usage and moves storage limits

The patent describes a storage controller circuit that sits between a processor and a memory device. Inside that controller is a chunk of dedicated fast storage, divided into multiple pools. Each pool is associated with one or more Quality-of-Service (QoS) levels (essentially priority tiers: think of QoS as the rulebook that says which tasks get served first and how much resource they're guaranteed).

Each pool has a pool threshold value, a number that defines how large that pool's slice of the storage is allowed to be. Normally these thresholds would be static, set once during device configuration and left alone.

What the patent adds is a feedback loop:

  • During each sampling period, the controller records a usage statistic for every pool (how full it got, how often it hit its limit, etc.).
  • After the period ends, the controller checks whether each pool's current threshold is still a good fit for its actual usage.
  • If the fit is off, the threshold is updated, expanding the pool that needed more room or shrinking the one that had too much.

The adjustment happens automatically and repeatedly, so the allocations track changing workload patterns over time rather than reflecting only the conditions that existed when the device was first configured.

From the filing · THE ABSTRACT
Dynamically adjusting memory allocations based on Quality-of-Service (QoS) pool threshold values in processor-based devices is disclosed herein.

Translation: The patent describes automatically shifting device storage limits to match performance needs.

What this means for servers running mixed workloads

Servers and high-end processors routinely run dozens of competing tasks at once: database queries, background maintenance jobs, real-time user requests. When memory is partitioned badly, high-priority tasks get throttled not because the hardware is undersized but because the wrong parts of the hardware are undersized. That kind of waste is hard to diagnose and even harder to fix manually across a data center with thousands of machines.

A self-tuning approach reduces the need for engineers to hand-tweak memory settings every time a workload changes, which in practice means workloads change faster than anyone can keep up with anyway. For cloud providers like Microsoft's Azure, squeezing more efficiency out of existing hardware has direct cost implications at scale.

Microsoft's 18th filing we've tracked in the AI chip wars since July adds to earlier work on compressing AI math tables and running AI math on any processor.

Source: US 2026/0299806 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Microsoft patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 6 sheets

6 drawing sheets from US 2026/0299806 A1 · click any drawing to enlarge

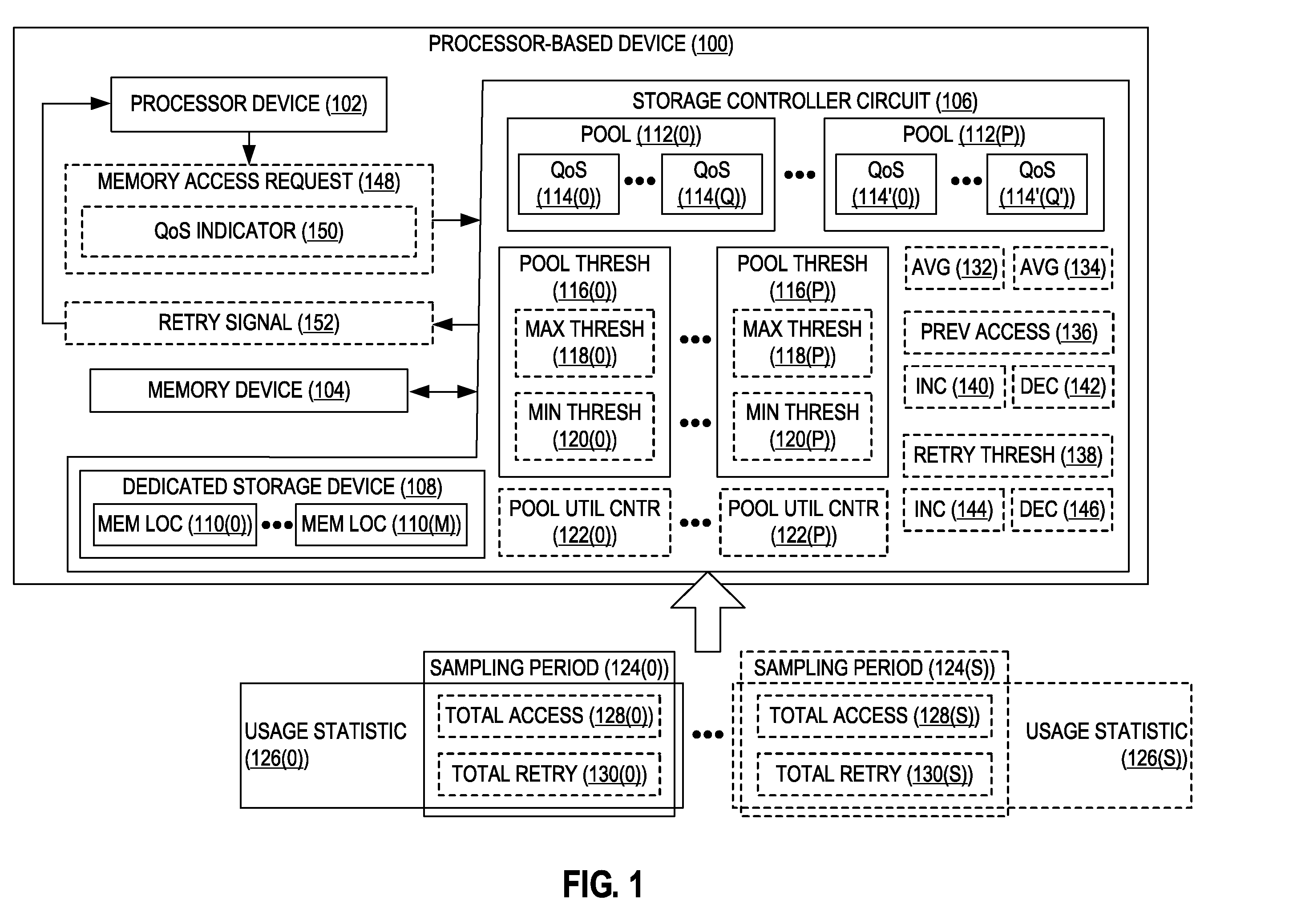

Processor-based device storage management system., drawing sheet 1 from US 2026/0299806 A1
Sheet 1 Processor-based device storage management system.

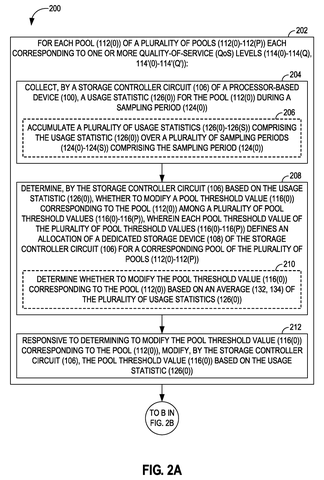

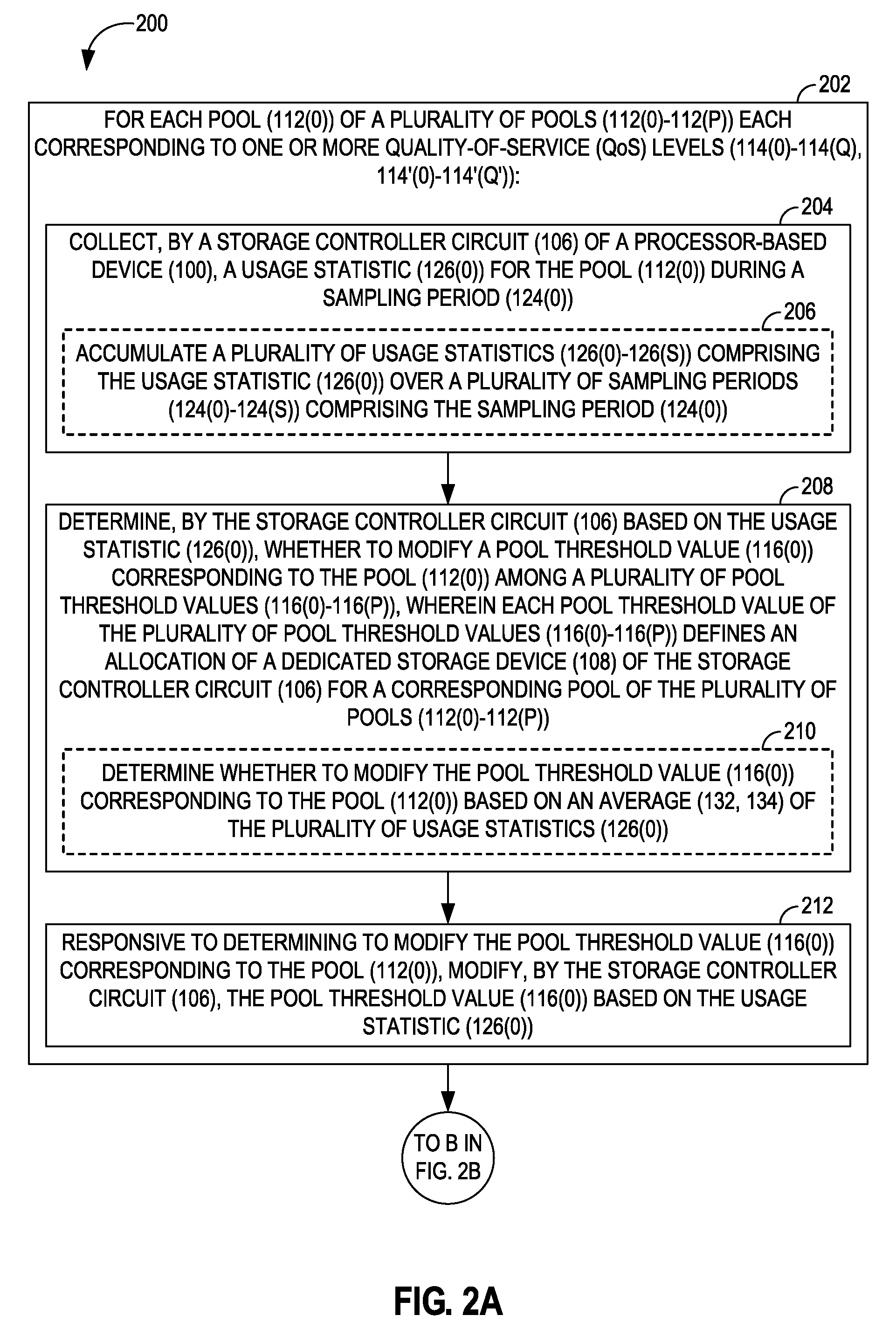

Method for modifying storage pool thresholds., drawing sheet 2 from US 2026/0299806 A1
Sheet 2 Method for modifying storage pool thresholds.

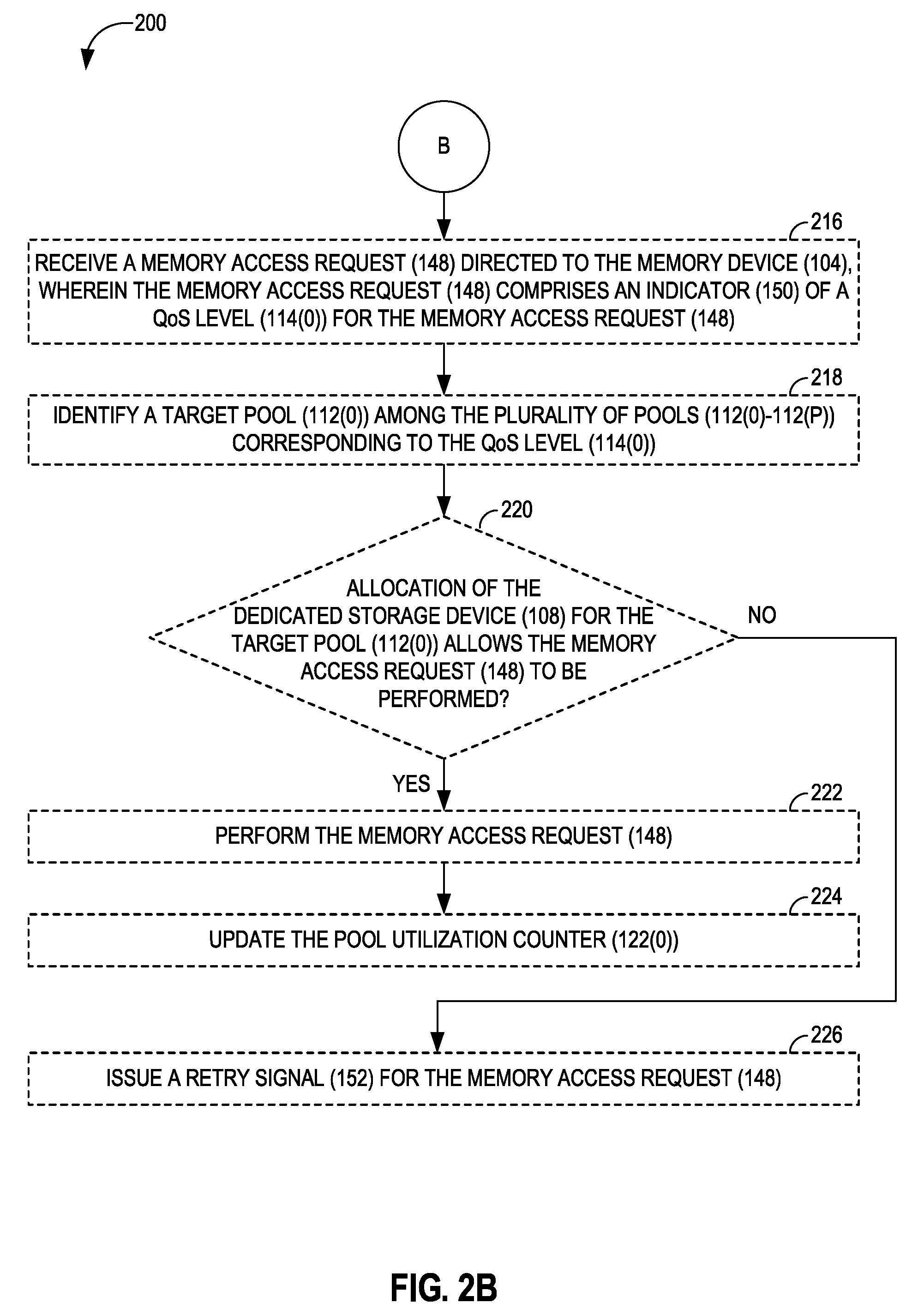

Method for processing memory access requests., drawing sheet 3 from US 2026/0299806 A1
Sheet 3 Method for processing memory access requests.

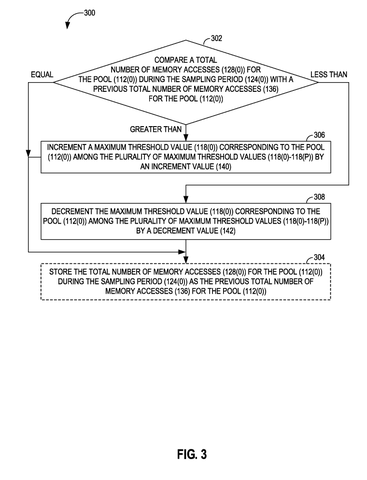

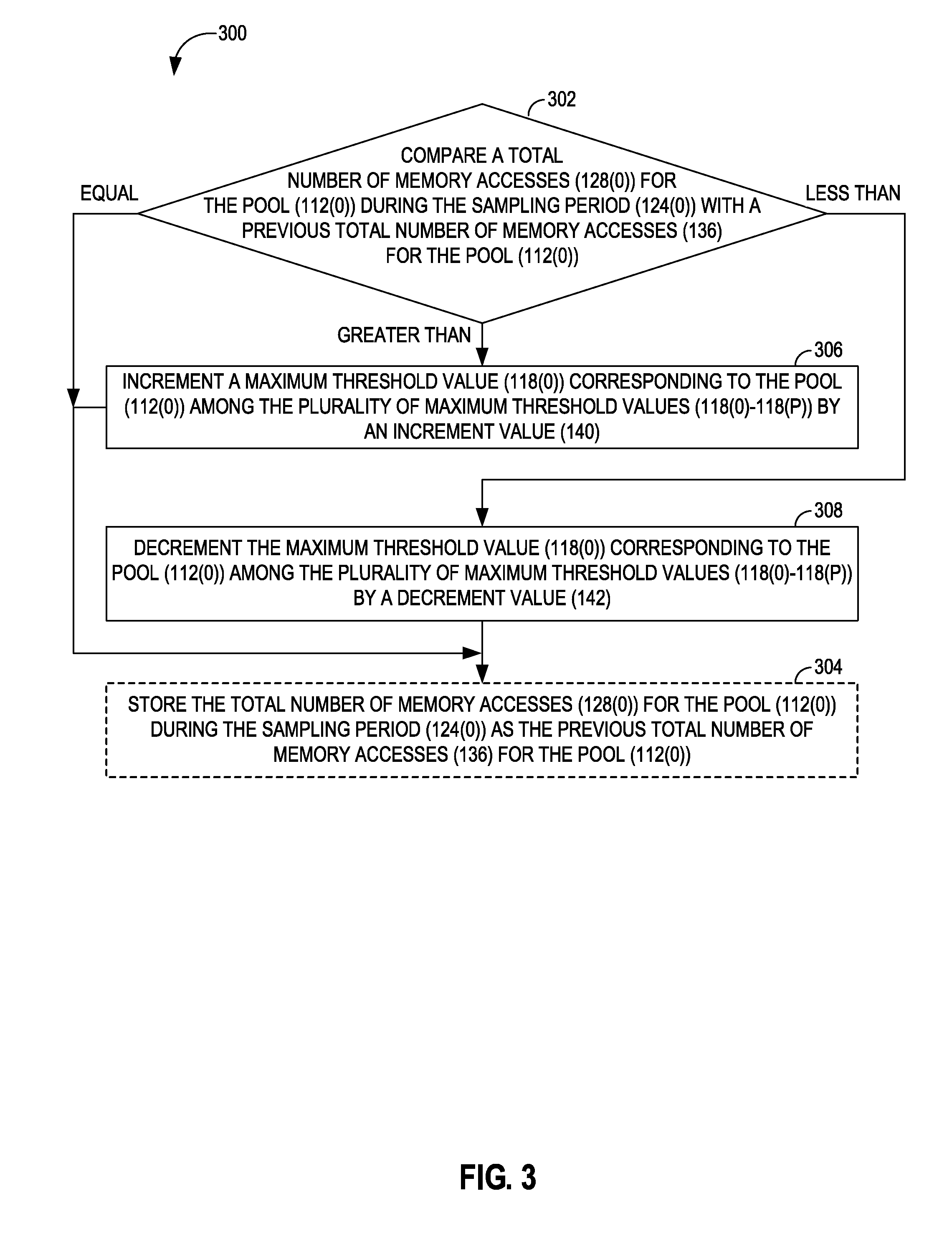

Method for adjusting maximum storage thresholds., drawing sheet 4 from US 2026/0299806 A1
Sheet 4 Method for adjusting maximum storage thresholds.

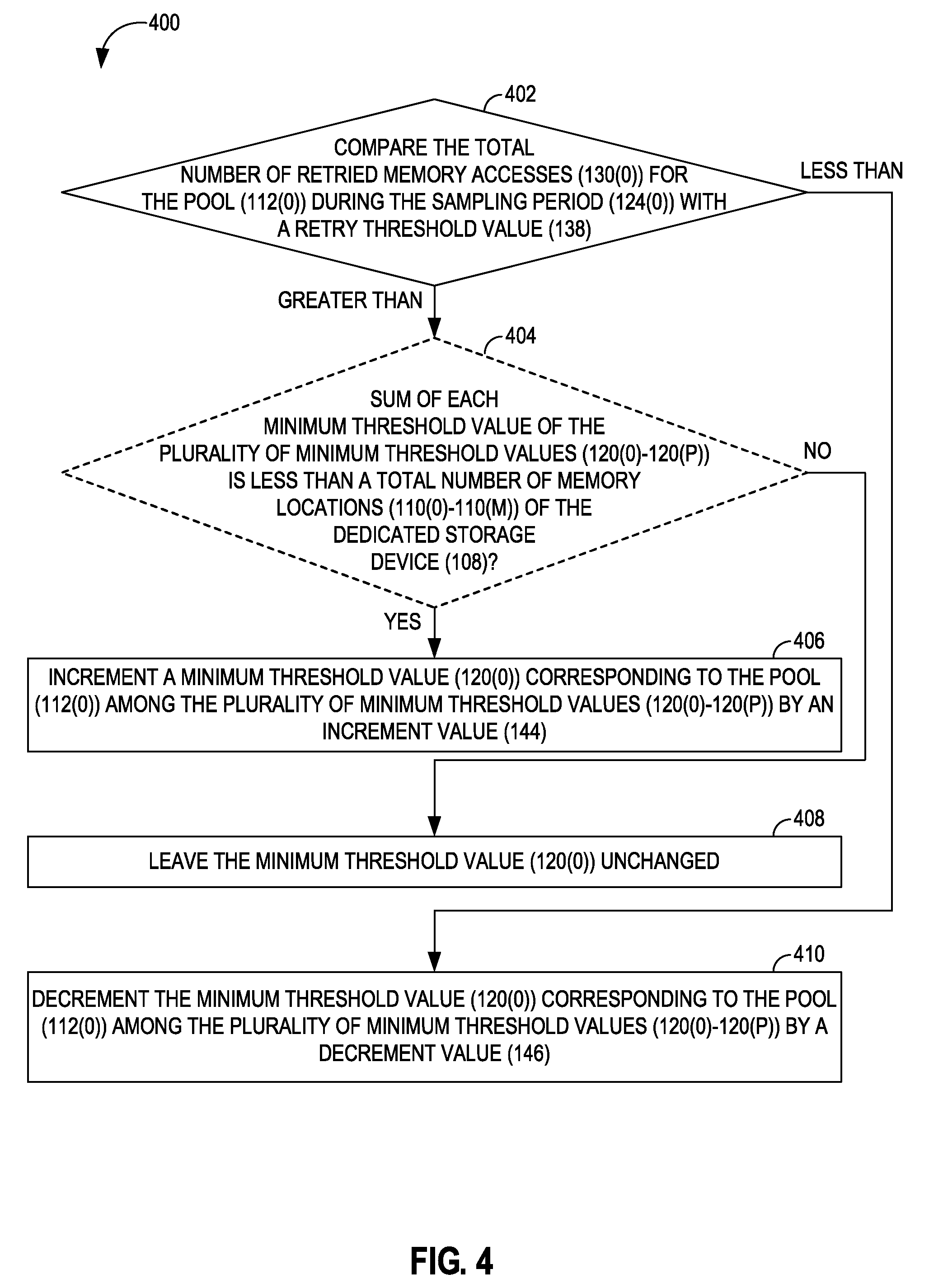

Method for adjusting minimum storage thresholds., drawing sheet 5 from US 2026/0299806 A1
Sheet 5 Method for adjusting minimum storage thresholds.

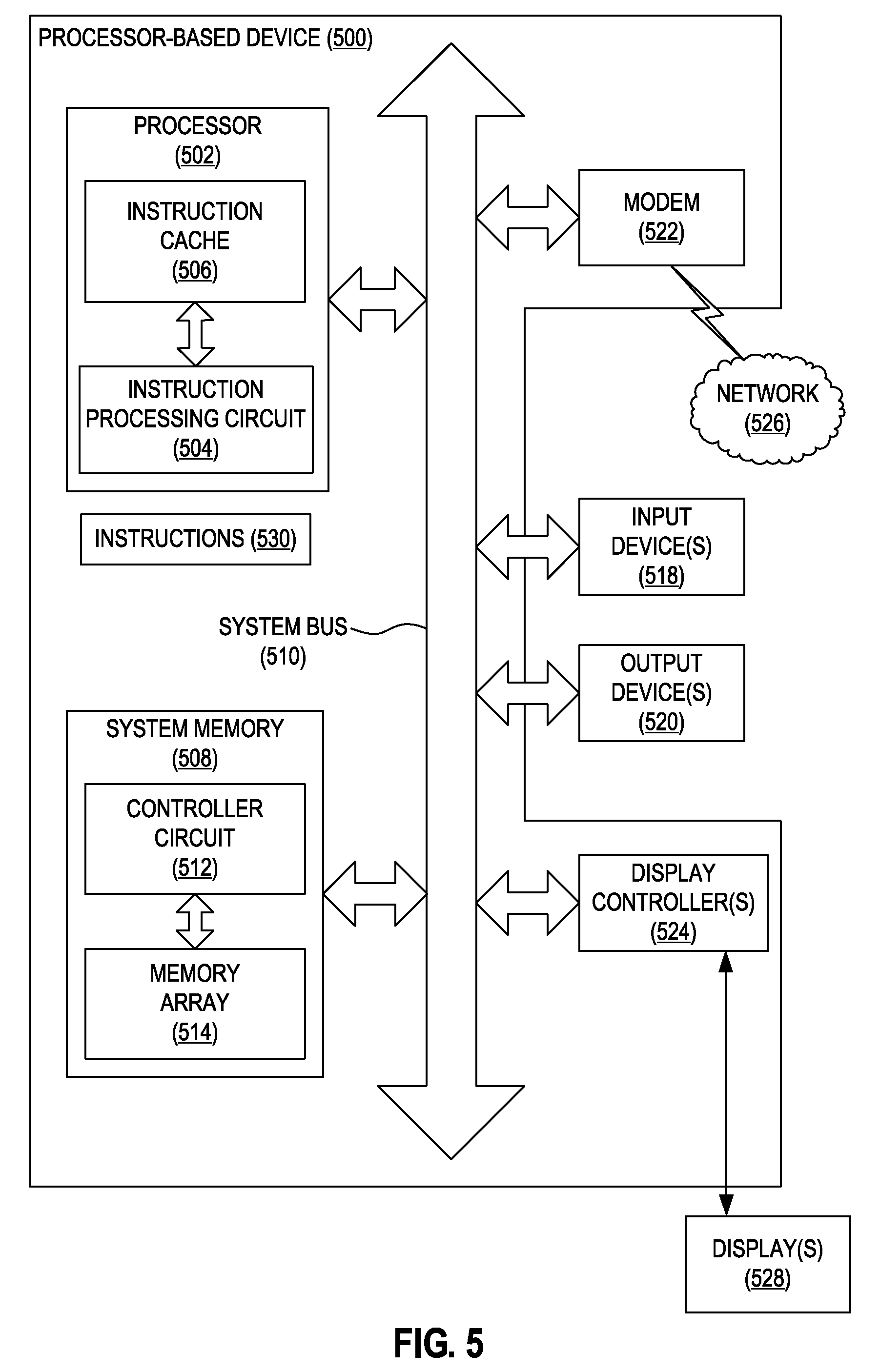

General processor-based computer system., drawing sheet 6 from US 2026/0299806 A1
Sheet 6 General processor-based computer system.
