Qualcomm Patents Technology That Stops AI Apps From Overheating Your Phone
Running multiple AI models on a phone at the same time generates serious heat. Qualcomm has filed a patent for a system that watches chip temperatures in real time and automatically adjusts power to keep things from slowing down or shutting off.
How Qualcomm's chip keeps AI from cooking itself
Ever felt your phone get hot and then slow to a crawl right when you needed it most? That's what happens when a chip runs too hard without any system managing the heat.
Qualcomm's patent describes a way for a chip to monitor its own temperature constantly and sort that temperature into one of several defined zones, think of them like low, medium, and high alert levels. Depending on which zone the chip is in, the system automatically changes how much power flows to each processor.
The goal is to keep multiple AI tasks running at the same time, like a photo model and a voice model both active at once, without the device overheating or killing performance. It's the difference between your phone handling a heavy AI workload gracefully and it getting hot, stuttering, and giving up.
monitor a first temperature of one or more of the plurality of processors, each of the one or more processors executing a machine learning model workload; determine if the first temperature of the one or more of the plurality of processors is within one of a set of temperature zones …
Translation: The system tracks how hot specific chips get while they are busy running AI tasks and checks which heat level they are in.
How temperature zones trigger power changes across processors

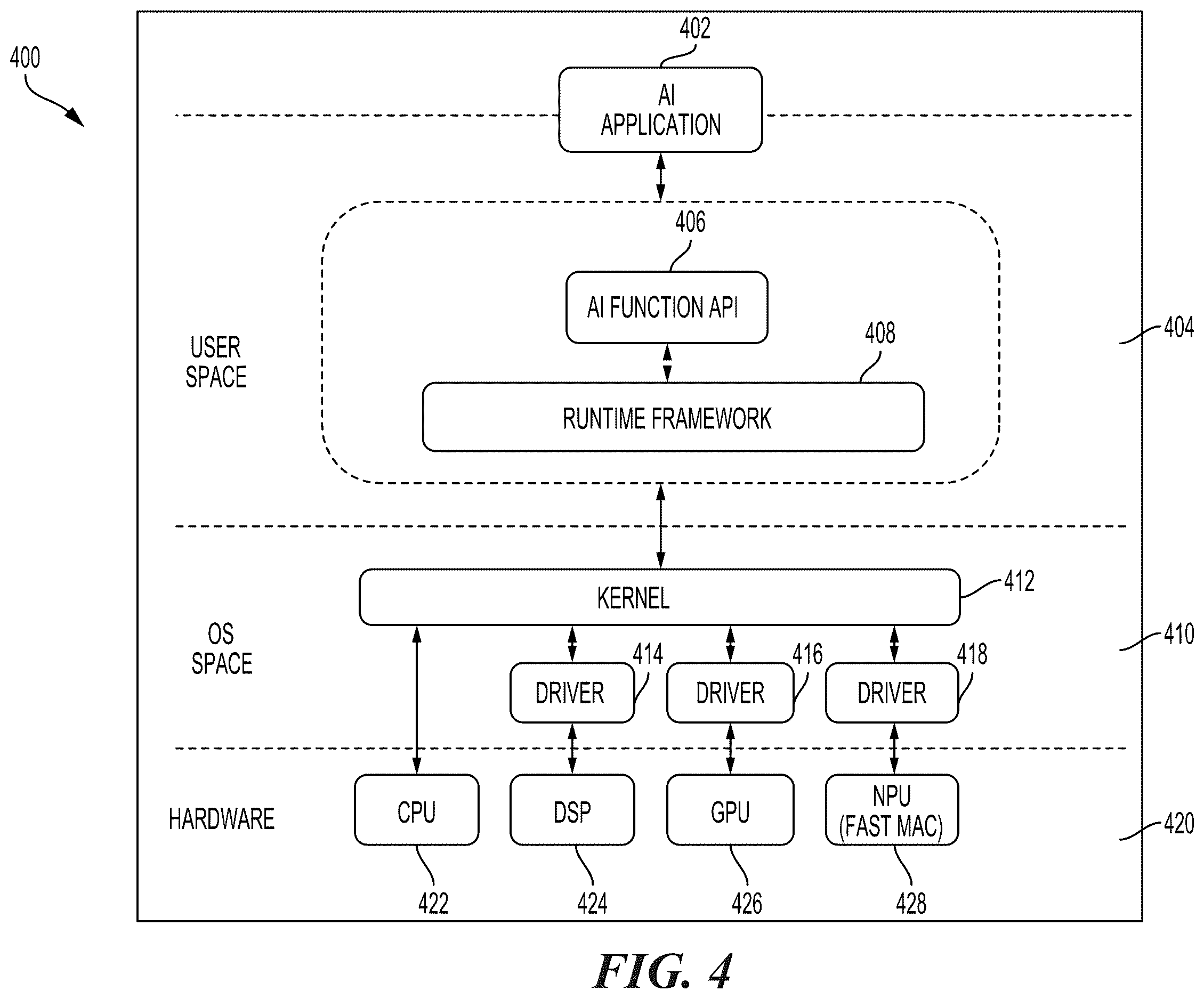

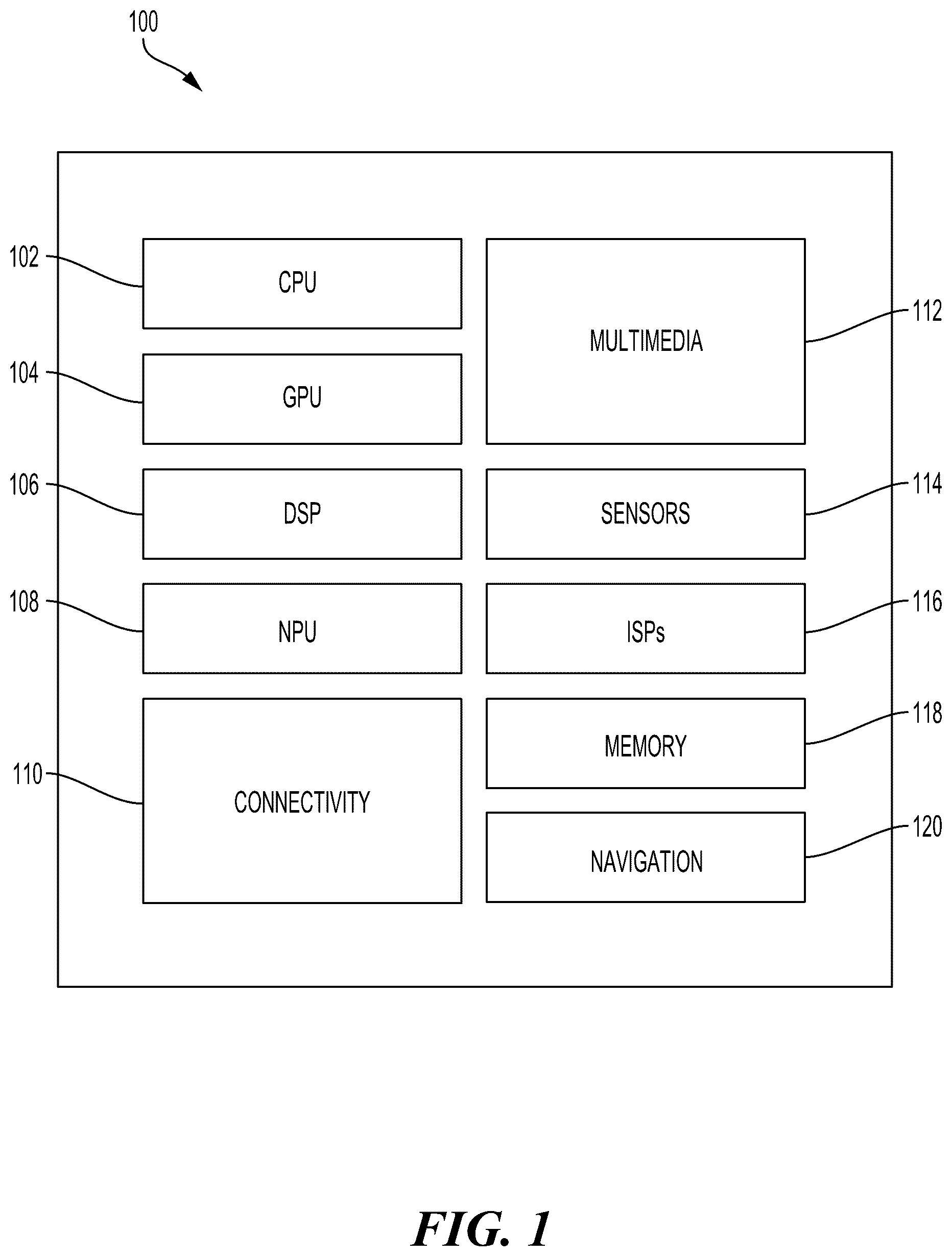

The patent describes an apparatus with a group of processors (a multi-processor chip, like those found in high-end smartphones) that share the job of running machine learning model workloads, meaning AI tasks like image recognition, voice processing, or language generation.

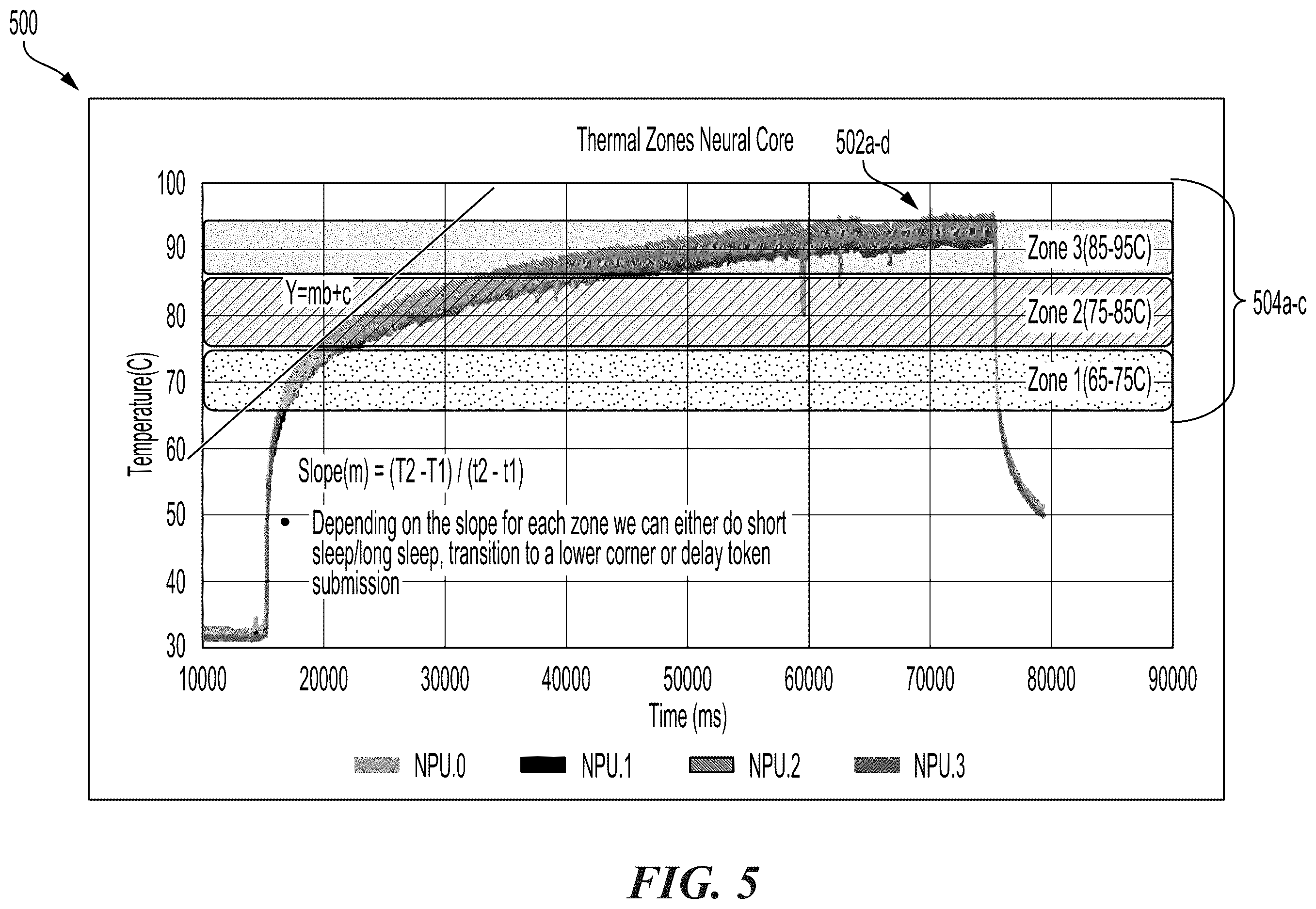

A monitoring layer watches the temperature of each active processor. That temperature reading is then matched against a set of predefined temperature zones (essentially a tiered scale, similar to a thermostat's heating stages). Each zone maps to a specific power-management response.

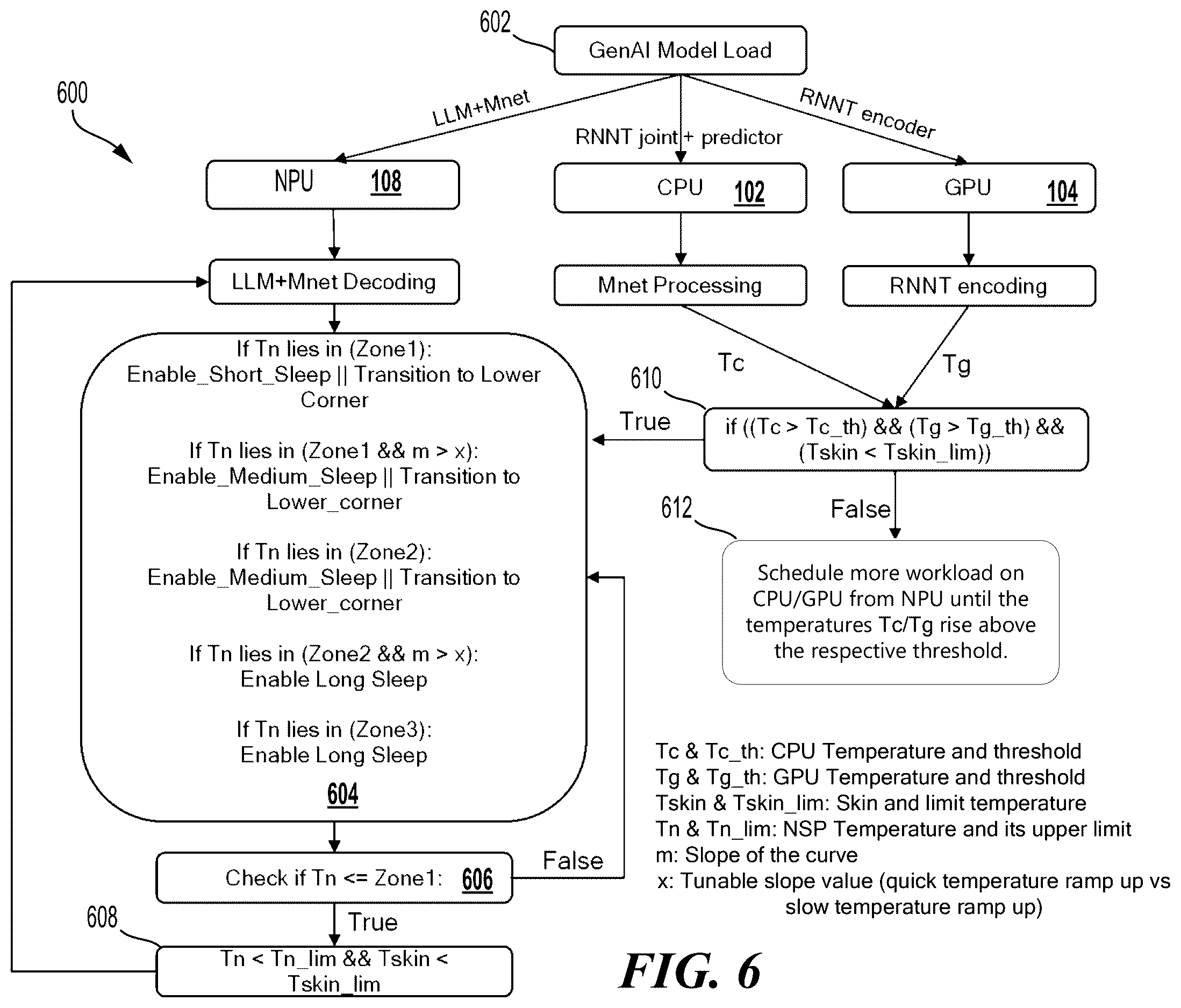

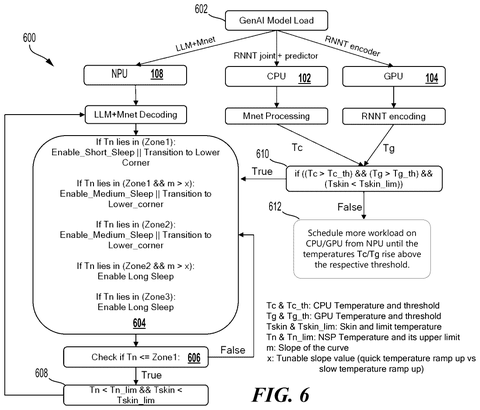

The control logic then adjusts power delivery to the processors based on which zone they fall into:
- Lower zones allow full or near-full power, letting the AI workloads run fast.
- Middle zones may begin throttling, reducing power to one or more processors to pull temperature down.
- Higher zones apply more aggressive cuts to prevent hardware damage or forced shutdown.
The key design goal is concurrent operation: keeping multiple large AI models active at the same time without one overheating processor forcing everything to stop. The system is described as processor-implemented, meaning the control logic lives on the chip itself rather than depending on a separate software layer on the device.

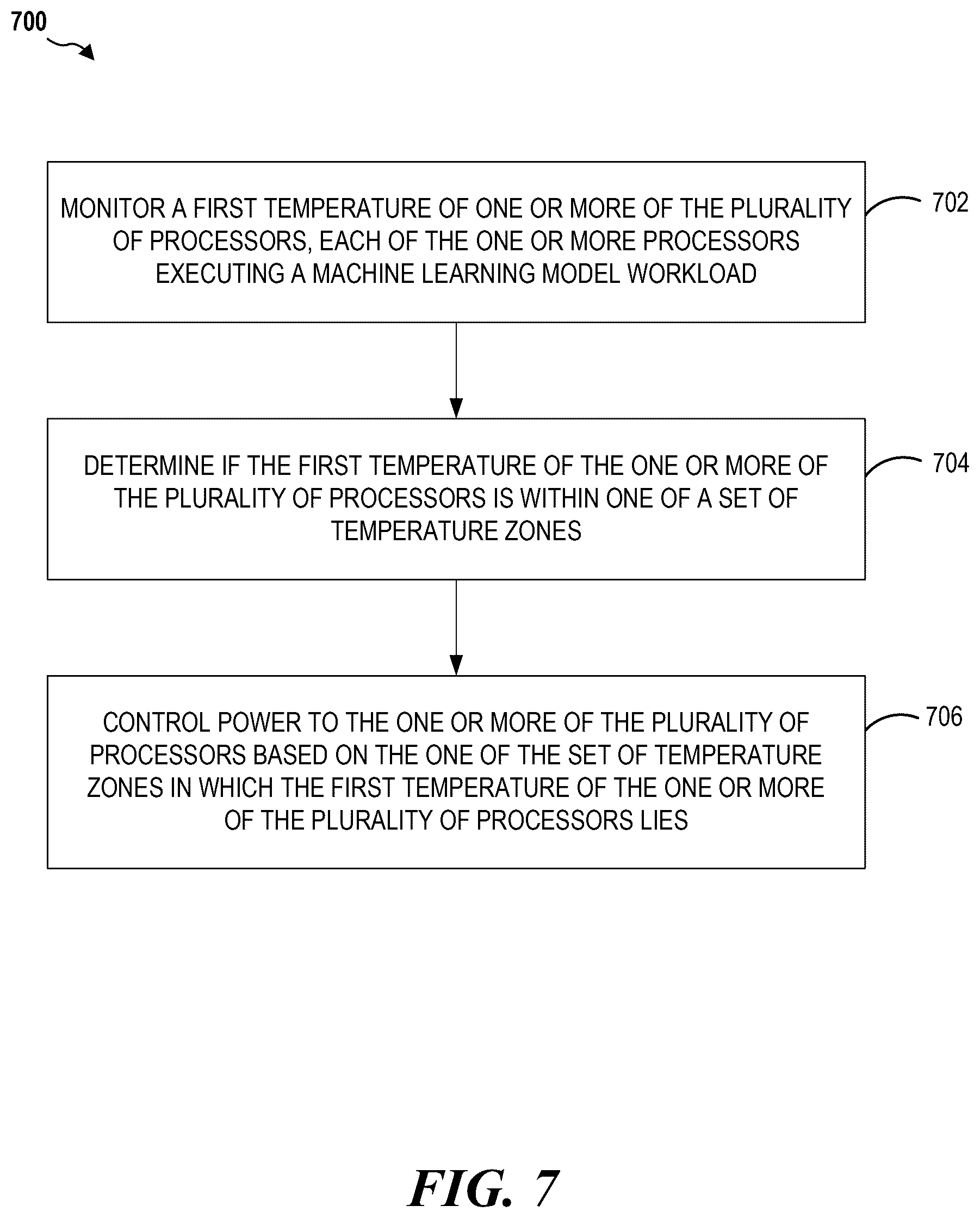

A processor-implemented method for thermal aware performance/power management for concurrent operation of large models includes monitoring a first temperature of one or more of the plurality of processors. Each of the one or more processors executes a machine learning model workload.
Translation: This method manages power and speed to keep chips cool when they are running several large AI models at the same time.
What this means for phones running multiple AI models at once
As smartphone makers push more AI features directly onto the device (rather than sending data to a server), the thermal challenge gets harder. Running two or three AI models at once on a phone chip is demanding work, and without active heat management, devices either throttle so aggressively that performance drops noticeably or they get uncomfortably hot in your hand.
Qualcomm supplies chips to a huge share of the Android phone market, so a thermal management system designed specifically for concurrent AI workloads could affect a wide range of devices. The filing sits alongside other new Big Tech patents in the on-device AI chip space, where the race to run more capable models locally, without melting the hardware, is driving a steady stream of power-management innovations.
Qualcomm's 43rd filing we've tracked since July in the AI chip wars space follows one cutting chip bandwidth use and one filtering key video frames.
The system this patent describes runs entirely in software, watching temperatures and throttling power without requiring any new chips or sensors. That makes the path to shipping it shorter than most patent filings suggest.
The hard part is calibration. Getting the temperature cutoffs right for two demanding AI tasks running simultaneously, say a voice assistant and a photo-processing tool both active at once, requires real-world testing across many devices and conditions that the document does not yet address.
If that tuning work lands well, the consumer payoff is straightforward: phone AI features that stay fast and stable instead of slowing to a crawl when the device gets warm. This patent lays a credible foundation for that, but the testing is where it either becomes a real feature or stays an interesting idea.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
7 drawing sheets from US 2026/0252152 A1 · click any drawing to enlarge
