Samsung Patents Technology That Reads Audio Structure Before Playback Starts
Before your phone plays a single note of audio, it has to figure out how the file is structured. Samsung's new patent describes a way to do that mapping step more deliberately, before the heavy decoding work begins.
What Samsung's audio frame configuration system actually does
You're playing a voice memo or streaming a podcast, and your phone is doing a lot of work behind the scenes: it has to break the audio into small chunks, figure out how big each chunk is, and then reassemble everything in order. That process can get messy if the device doesn't have a clear picture of the file structure upfront.
Samsung's patent describes a method where the device first collects information about the audio's frames, specifically how many there are and how large each one is, and builds a kind of map before decoding starts. Think of it like reading the table of contents before flipping through a book, rather than figuring out the chapter breaks as you go.
The idea is that having that configuration information ready lets the decoder work from a clear blueprint, rather than discovering the structure on the fly. The patent covers the device, the method, and the storage format for that configuration data.
… generate frame configuration information for one or more frames from among the plurality of frames, wherein the frame configuration information includes a number of the one or more frames and a size of each of the one or more frames …
Translation: The device figures out the count and size of audio pieces before playing them.
How the device maps frame size before decoding starts
Audio files are made up of many small segments called frames, each holding a slice of sound. To play audio back correctly, a device has to decode those frames in sequence. The challenge is that frames can vary in size, and figuring that out mid-stream adds overhead to the process.
Samsung's patent describes a system that generates frame configuration information before decoding begins. This configuration data includes two key things:
- The number of frames in the audio content
- The size of each individual frame
With that map in hand, the processor can perform decoding against a known structure rather than discovering it incrementally. The patent covers this as a device-level implementation, meaning the logic lives on the hardware itself, not in a remote server.
The claim is intentionally broad: it covers obtaining a frame set, generating the configuration information, and then using that information to drive the decoding step. The storage medium is also included in the scope, meaning the patent covers how this configuration data is saved and accessed, not just how it is computed.
… perform decoding of the frame set including the one or more frames based on the frame configuration information …
Translation: It decodes the audio data using that structural blueprint.
What this means for audio playback on Samsung devices
For most everyday audio playback, this kind of pre-mapping is a low-level optimization that users would never directly notice. The benefit, if the approach works as described, is a more predictable decoding process, which can matter in constrained environments like wearables, low-power earbuds, or devices handling multiple audio streams at once. Samsung's run of audio processing filings suggests the company is working to control more of the audio stack across its device lineup.
That said, this is a foundational infrastructure patent, not a feature announcement. It addresses a real engineering problem in audio decoding, but the gap between this filing and any audible improvement in your Galaxy phone or earbuds is wide and filled with implementation choices Samsung hasn't disclosed here.
Samsung's 212th filing in the cell phone patents we've tracked since May follows ideas like cutting a connection when overheating and speeding up Wi-Fi processing.
The problem this patent attacks is real: audio decoders that discover frame structure on the fly use more processing cycles and are harder to optimize for low-power hardware. In that narrow sense, the filing is solving something that matters to engineers building earbuds, hearing aids, and small speakers.
The trouble is that the solution described here is genuinely thin. Pre-computing frame count and frame size before decoding is a well-established idea in audio engineering, and the patent language is broad enough that it reads more like a placeholder than a novel mechanism. There is almost no description of how the configuration information is generated, only that it is.
For readers curious about where Samsung is taking its audio hardware, this filing offers very little signal. It is the kind of background infrastructure claim that companies file to protect flexibility, not to announce a direction.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

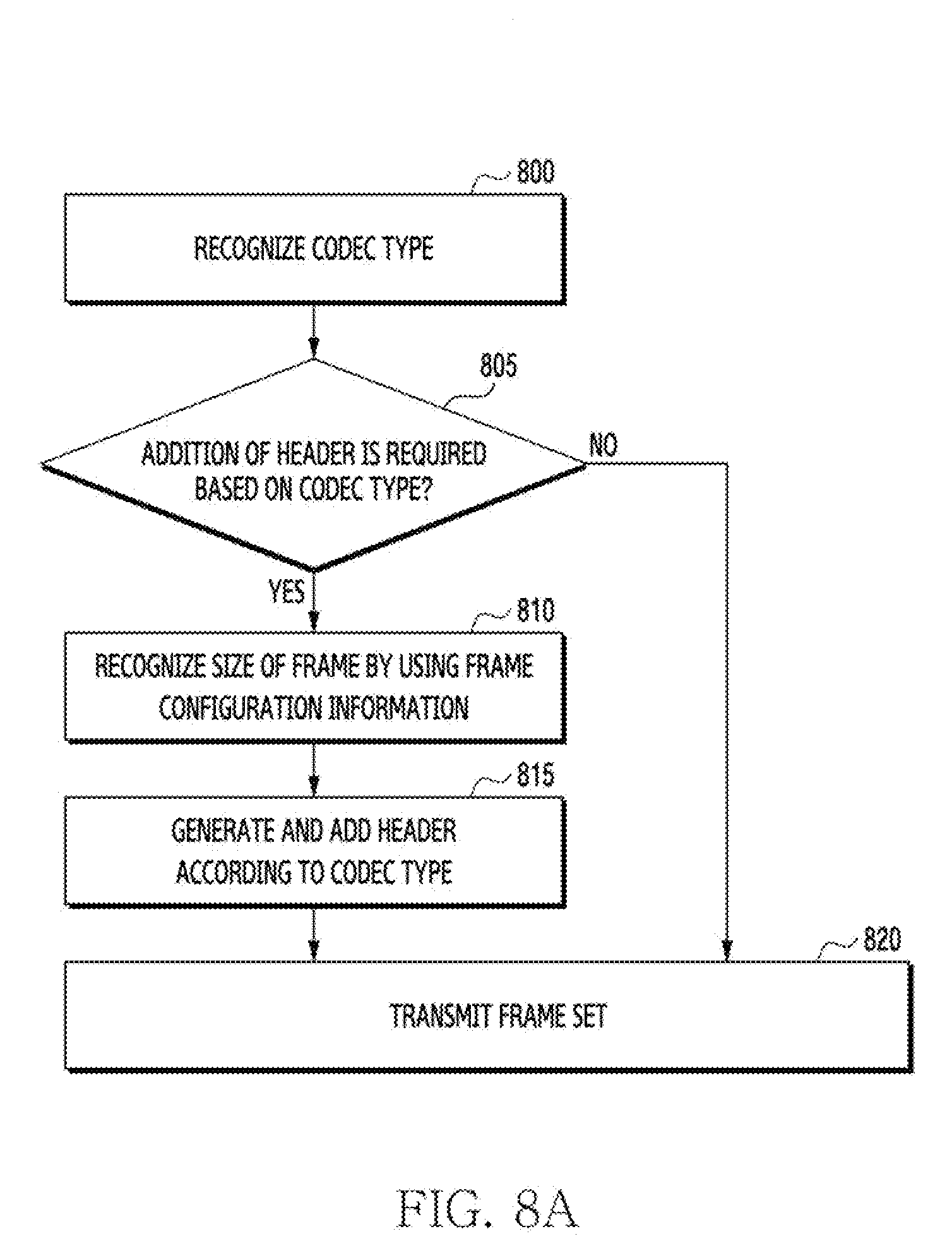

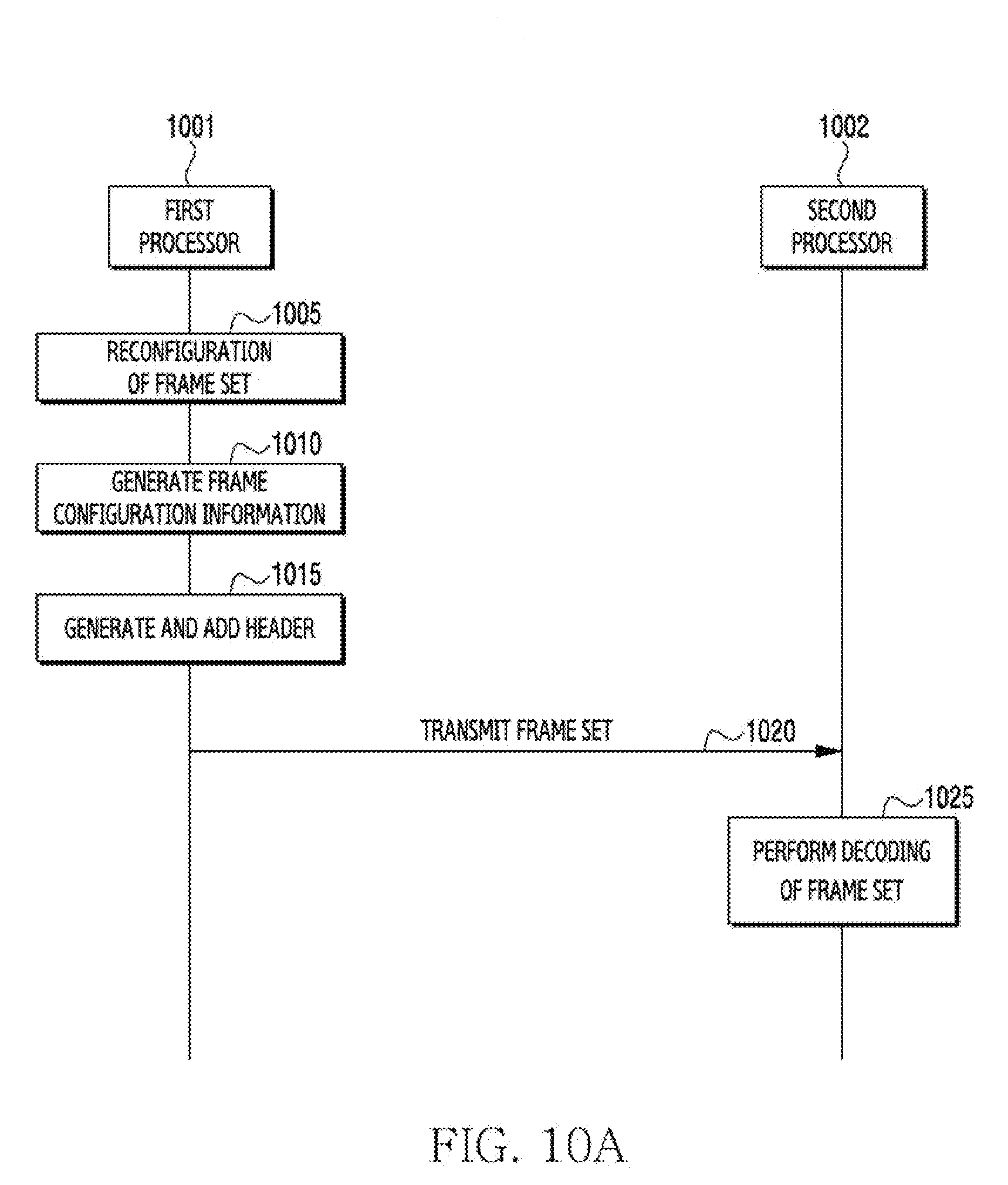

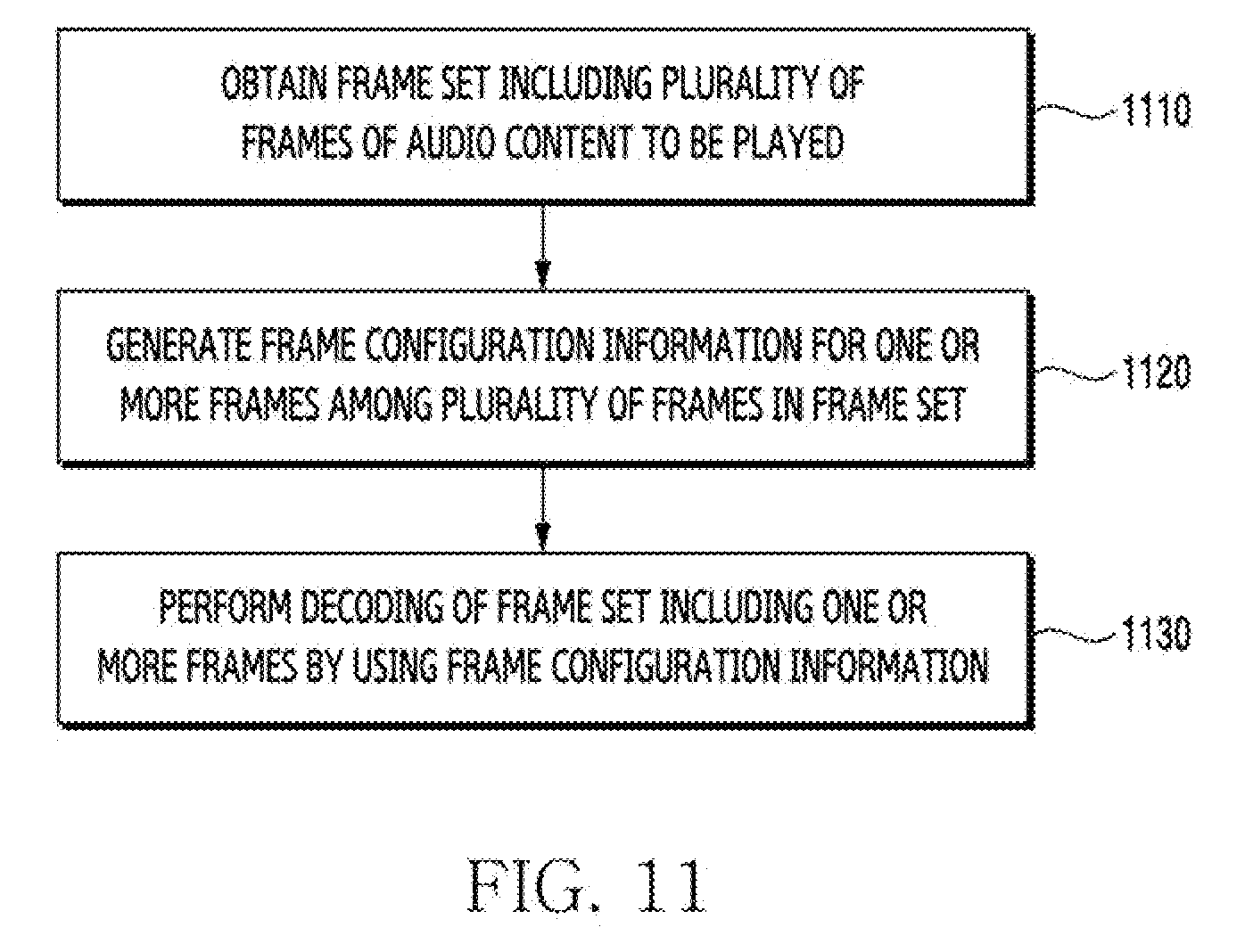

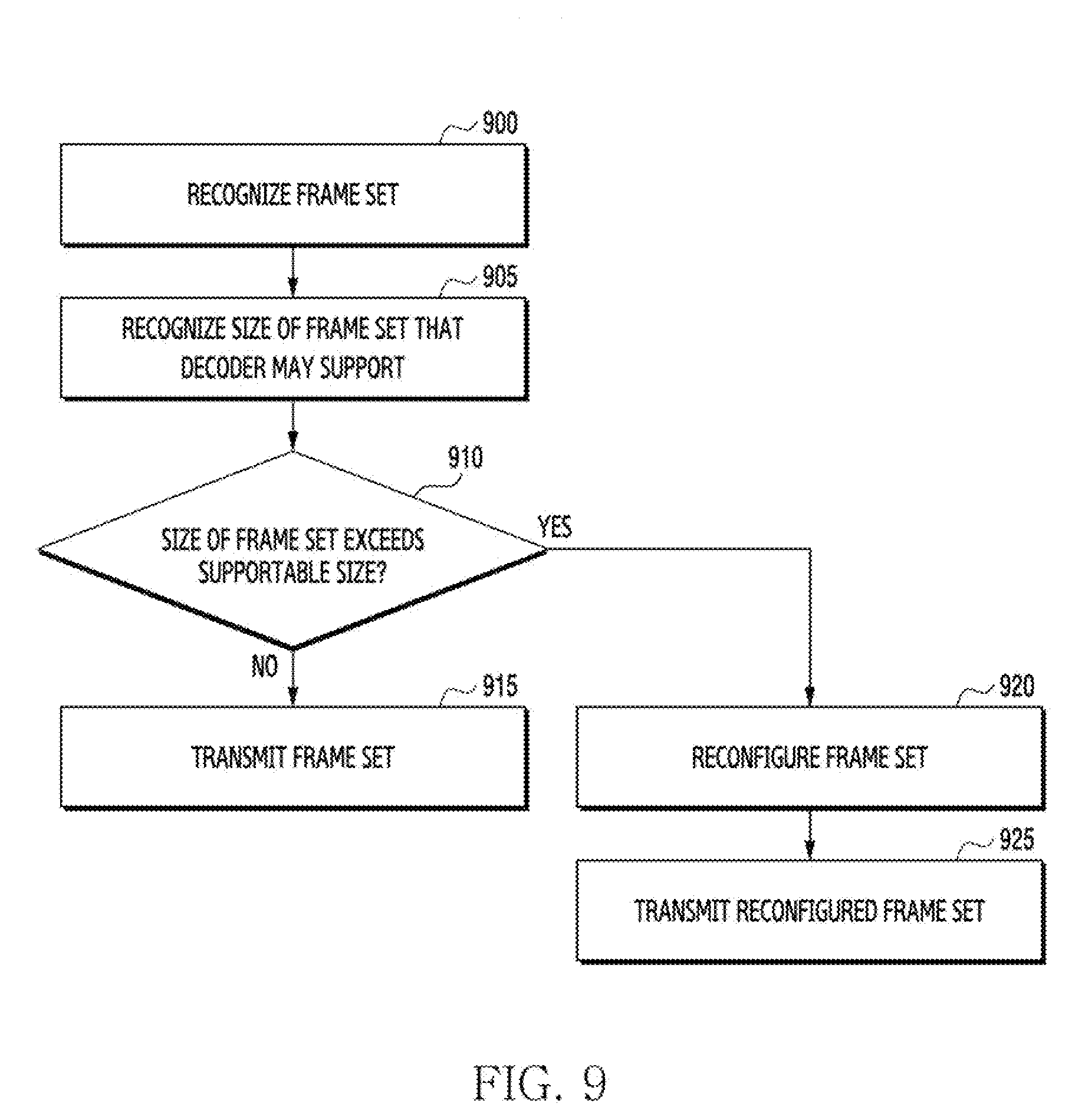

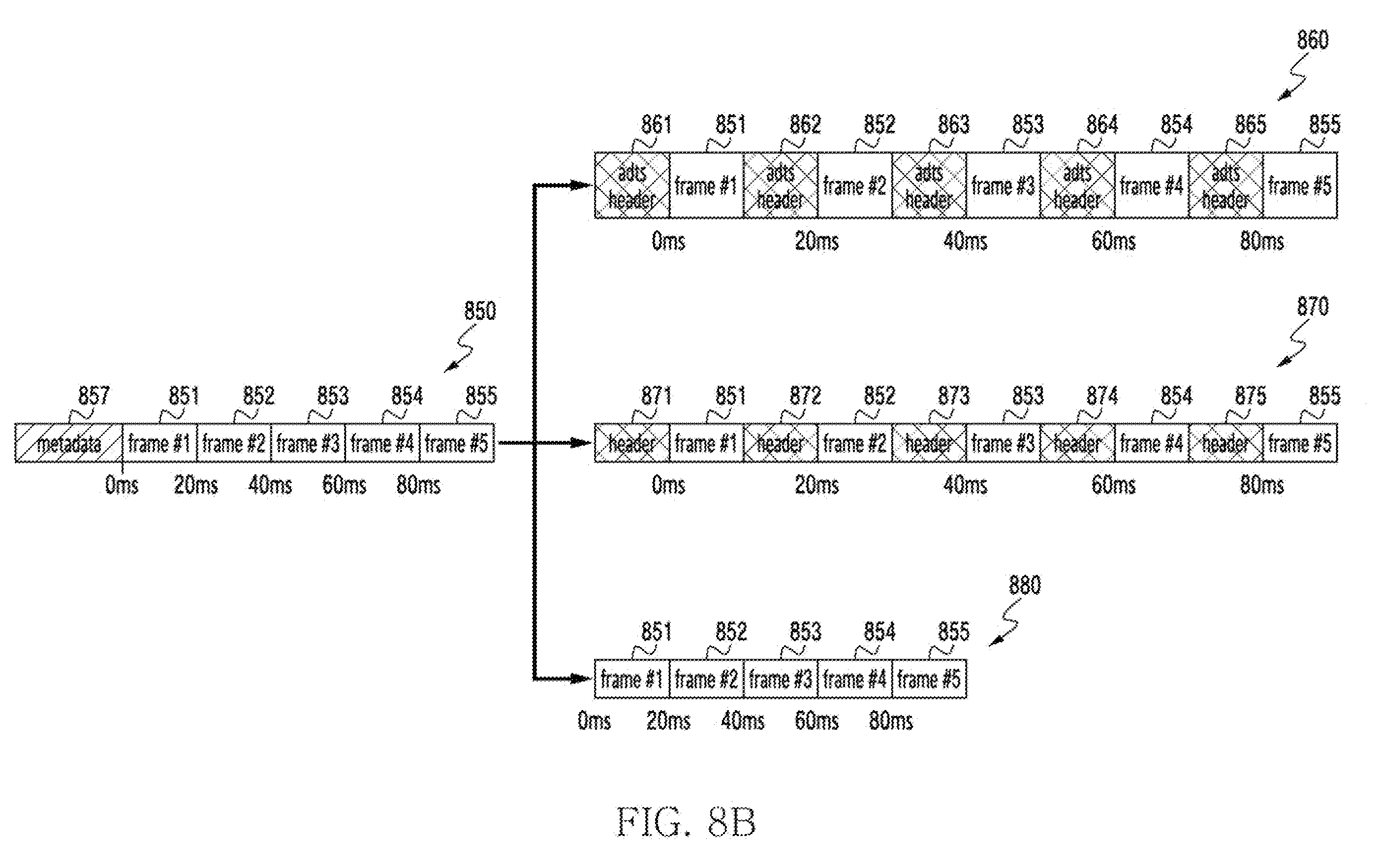

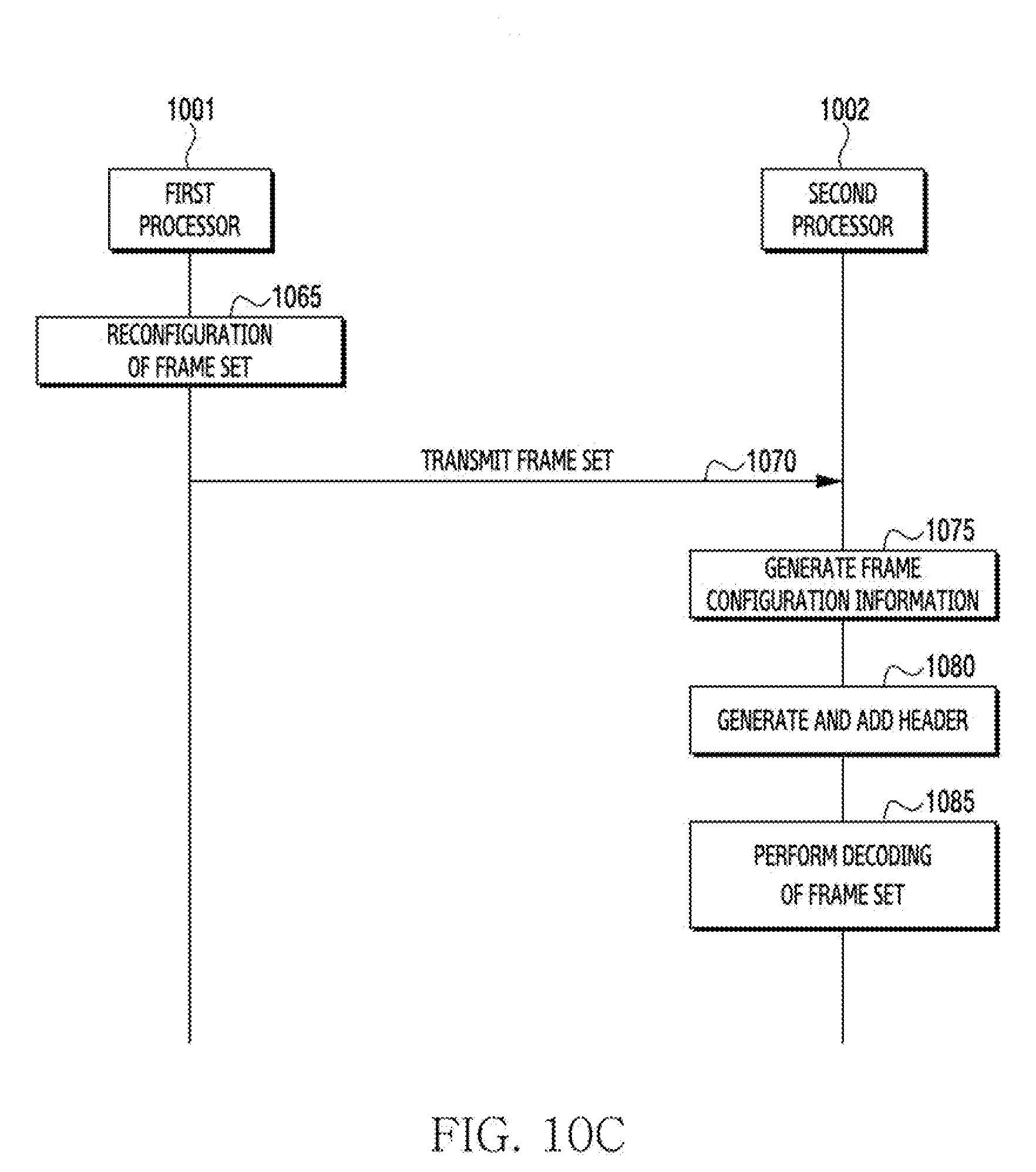

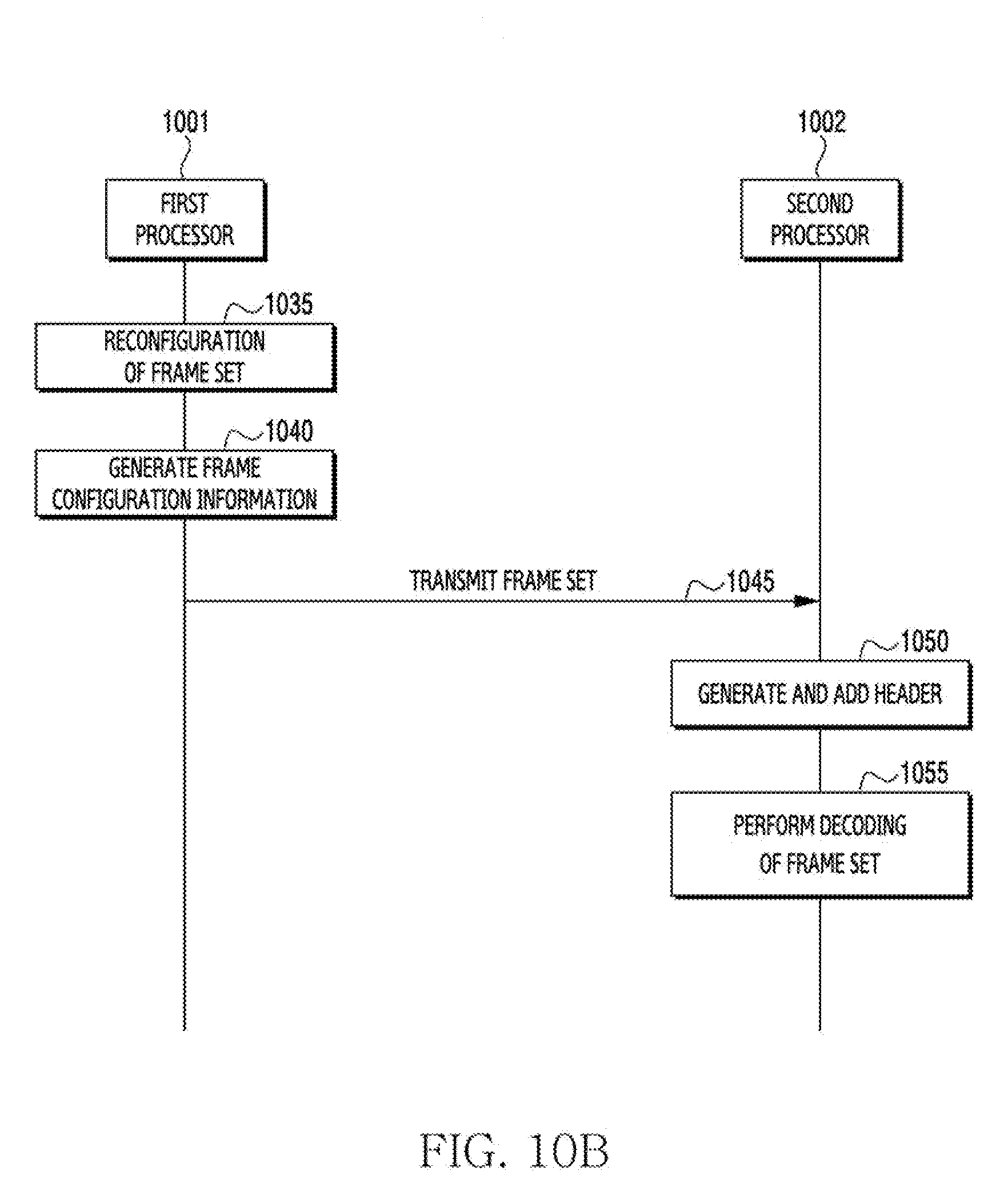

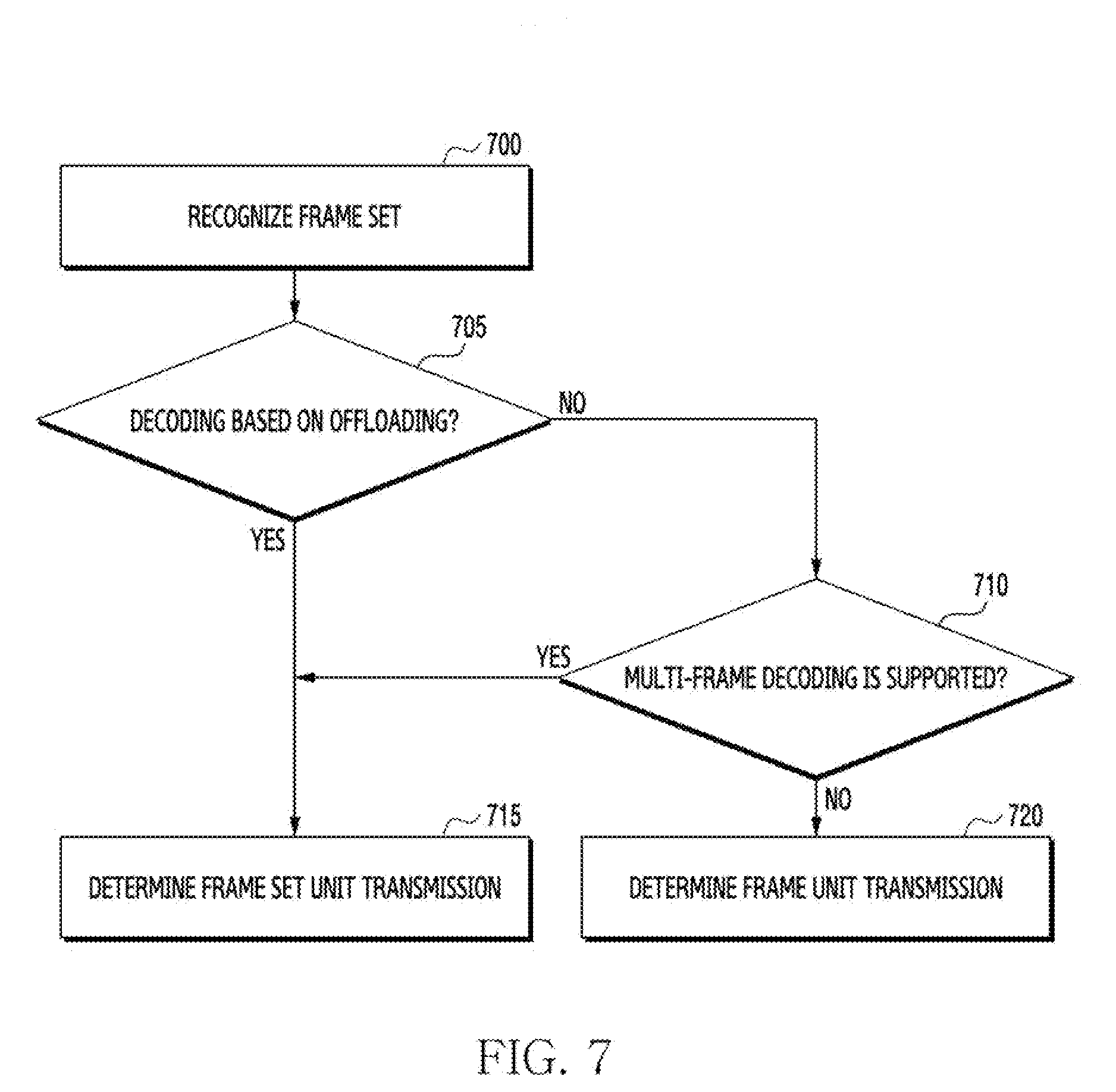

The drawings
16 drawing sheets from US 2026/0260661 A1 · click any drawing to enlarge
