Samsung Patent Filing Targets Cameras That Adapt Between Bright and Dark Scenes

Samsung has filed a patent for an image sensor that can switch between two different electrical reference signals on the fly, a design choice that could let the same camera chip handle everything from bright outdoor scenes to dim indoor shots with less noise.

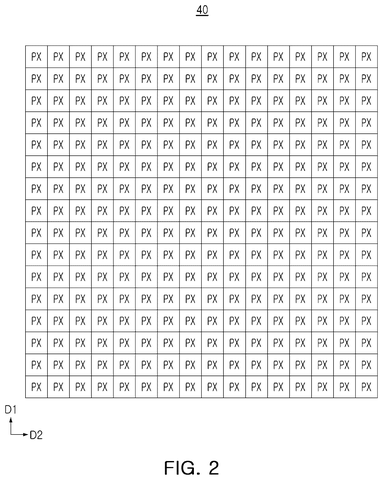

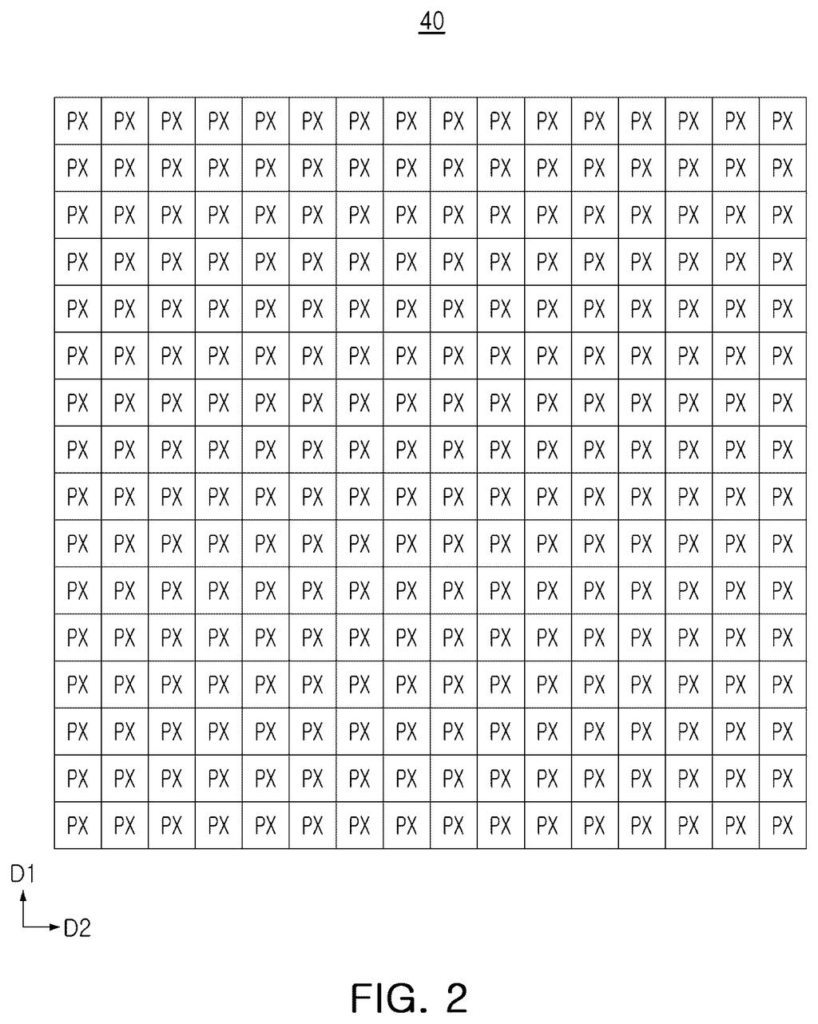

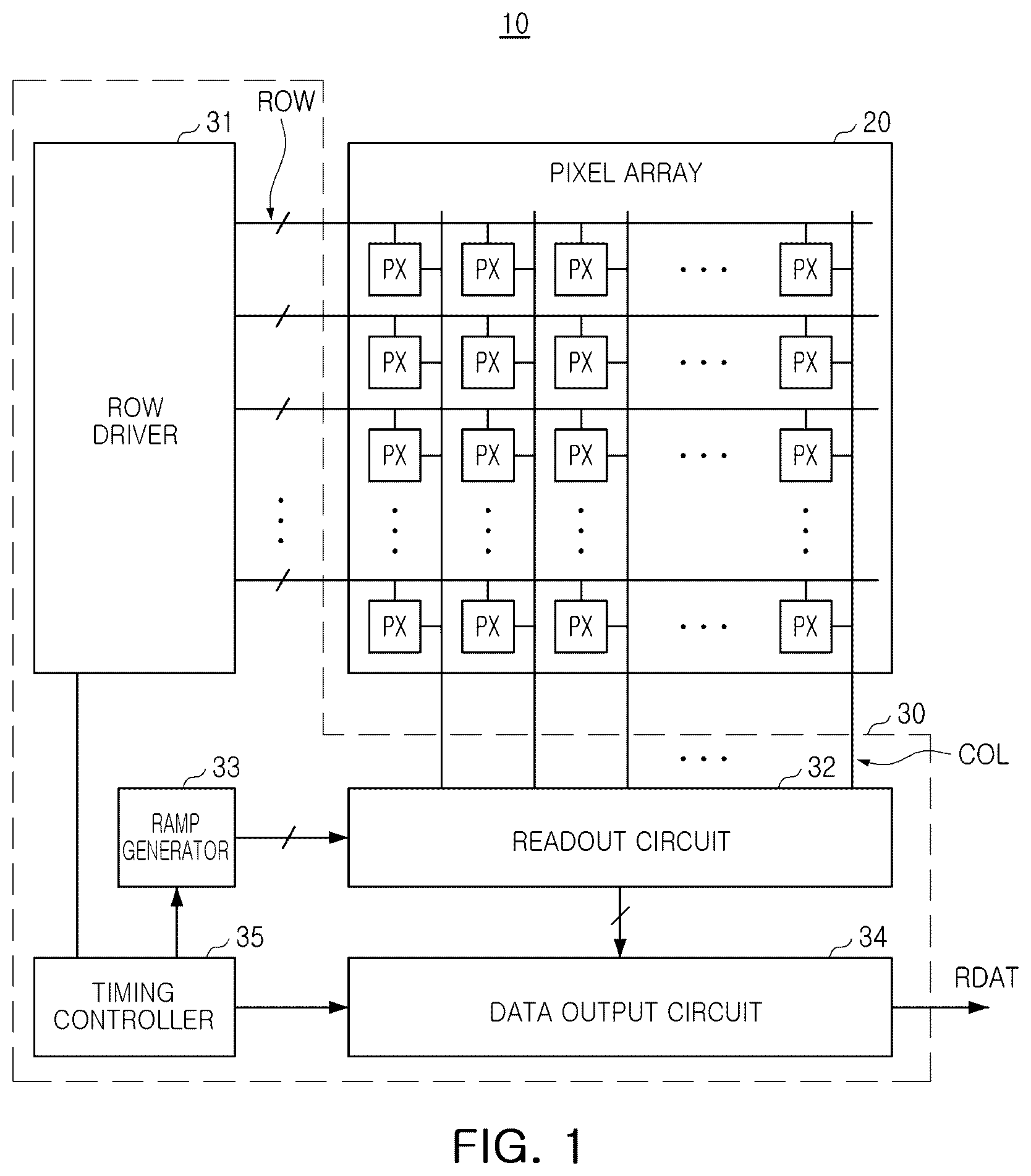

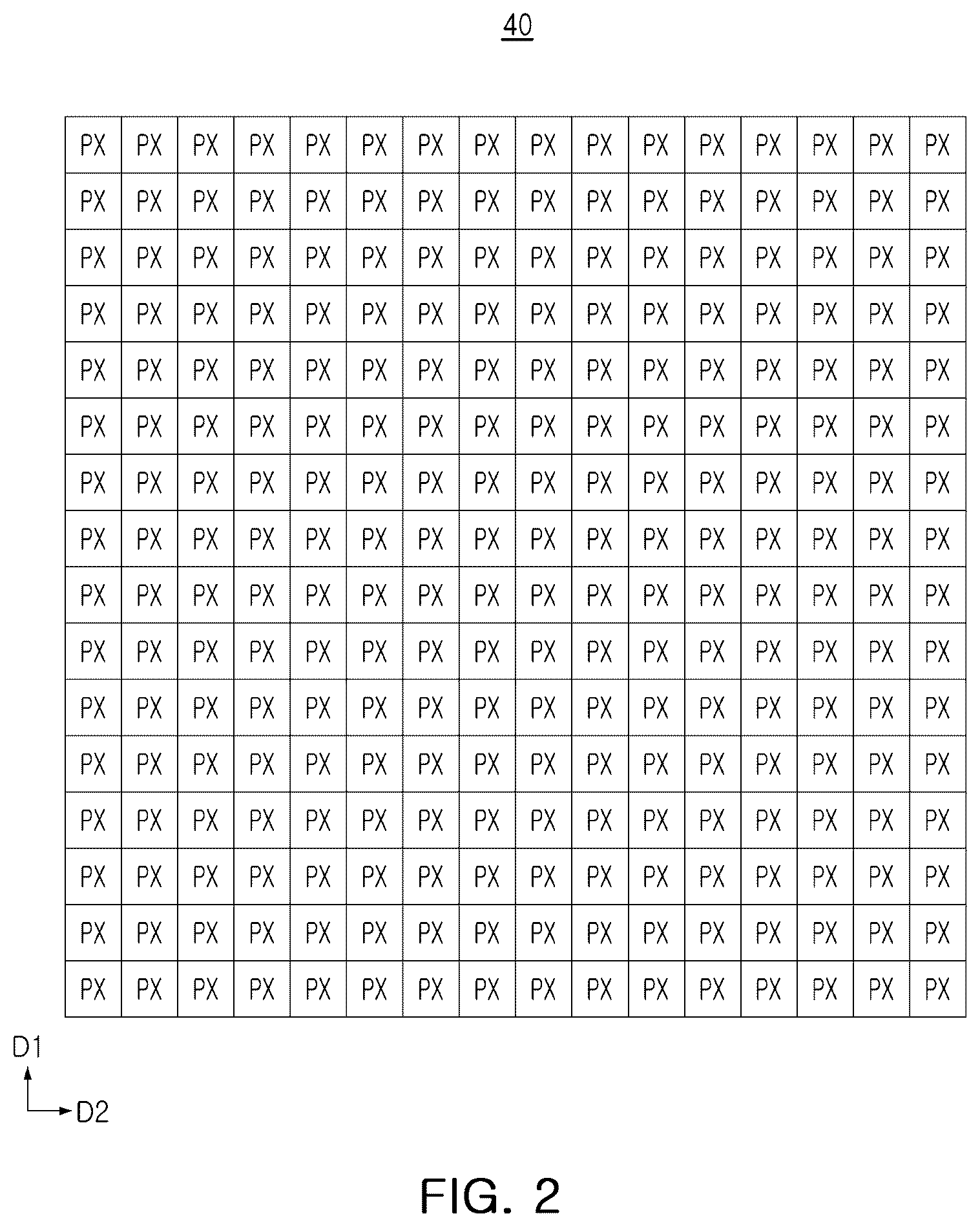

Complete grid array of individual light-sensing pixels forming the image sensor surface. Drawing from patent filing US 2026/0255086 A1.
Complete grid array of individual light-sensing pixels forming the image sensor surface.
See all 32 drawings from this filing ↓
Publication number US 2026/0255086 A1
Applicant Samsung Electronics Co., Ltd.
Filing date Sep 22, 2025
Publication date Aug 27, 2026
Inventors Dahsom Kim, Jahyun Koo, Donghoon Sung, Seokyong Hong
CPC classification 348/308
Grant likelihood Medium
Examiner CENTRAL, DOCKET (Art Unit OPAP)
Status Docketed New Case - Ready for Examination (Oct 24, 2025)
Document 20 claims

What Samsung's dual-mode image sensor actually does

Every time you tap your phone camera open and snap a photo, the image sensor inside reads millions of tiny light values almost instantly. Each pixel reports how much light it caught, and a circuit called a ramp generator provides the electrical yardstick used to measure that signal accurately. If that yardstick is a poor fit for the scene, the result is a noisy or blown-out photo.

Samsung's patent describes a sensor that carries two of these yardsticks at once and can assign them differently depending on what the camera needs. In a basic mode, both halves of the sensor share the same reference signal. In a more demanding mode, neighboring samplers, the circuits that actually take the measurements, split off and each connect to a different ramp generator.

The idea is that flexible assignment lets the chip adapt to different shooting conditions without requiring a completely different sensor design for each use case. That kind of adaptability matters a lot when a single camera module has to serve everything from slow video to fast burst photography.

From the filing · CLAIM 1
a first ramp generator configured to output a first ramp voltage, and a second ramp generator configured to output a second ramp voltage different from the first ramp voltage …

Translation: The sensor uses two different voltage generators to handle different lighting conditions.

How the two ramp generators split the work

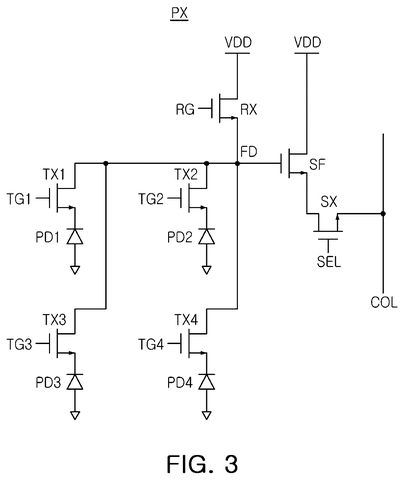

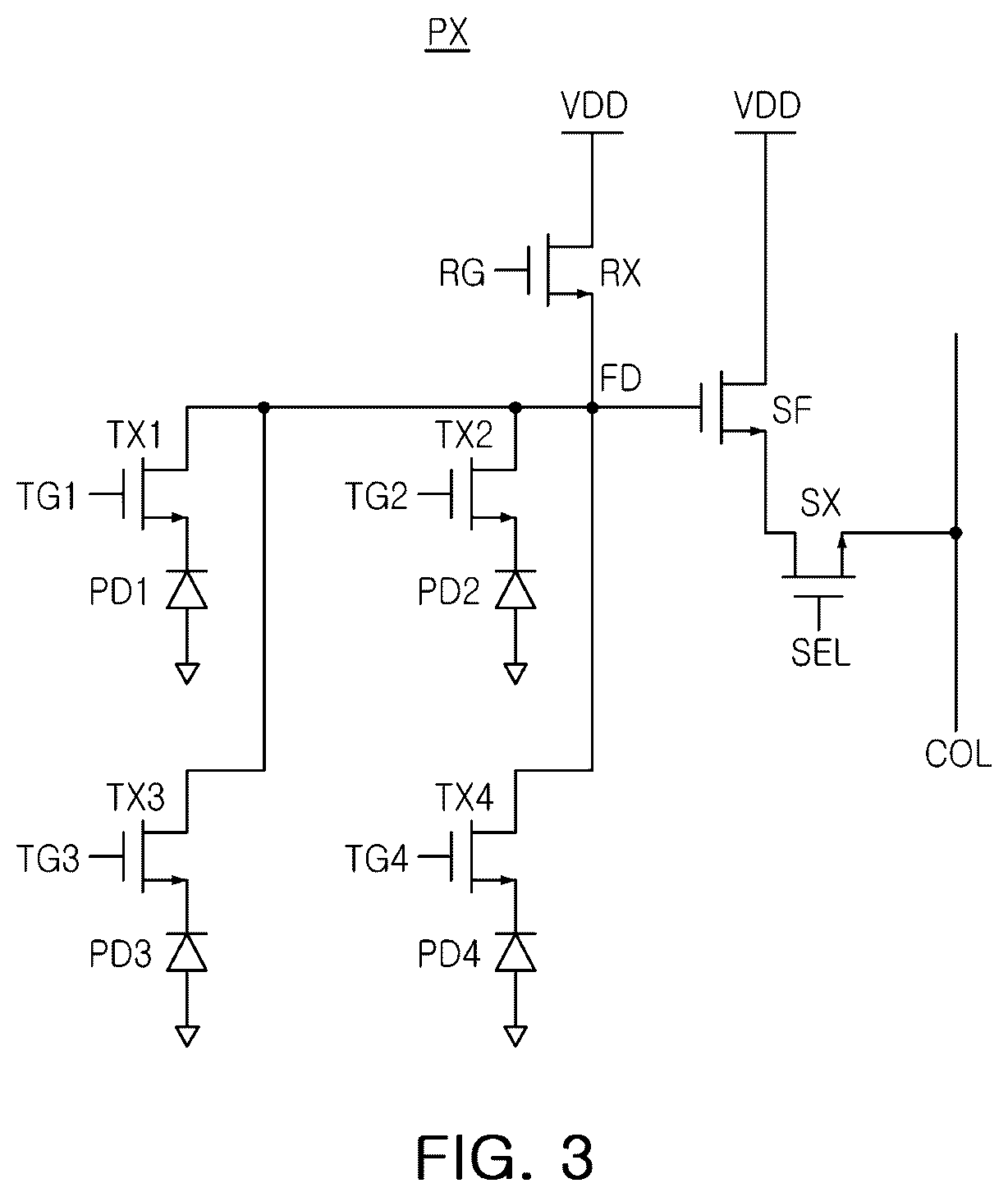

An image sensor works by converting light into electrical signals and then measuring those signals precisely. The measurement process depends on a ramp voltage, a signal that rises or falls at a known rate, acting as a ruler against which each pixel's output is compared. The moment the pixel signal and the ramp signal cross, a timer stops, and that time value becomes the brightness reading for that pixel.

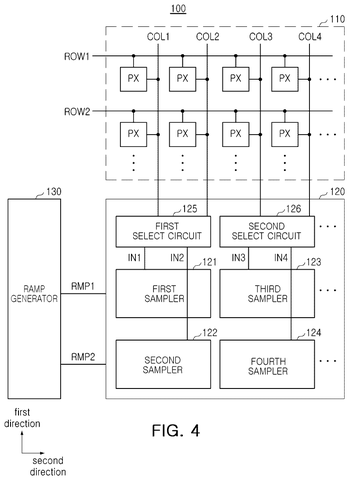

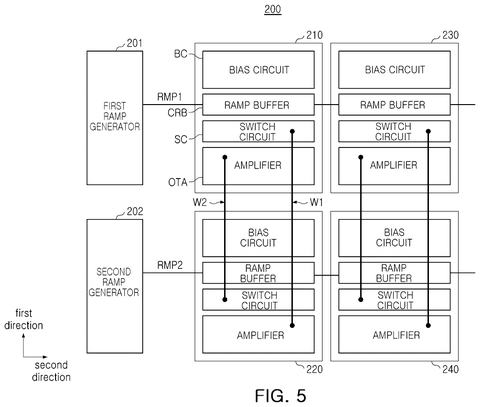

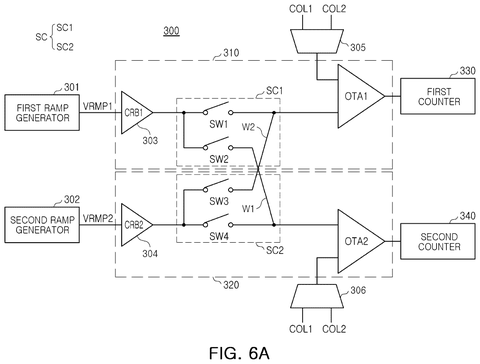

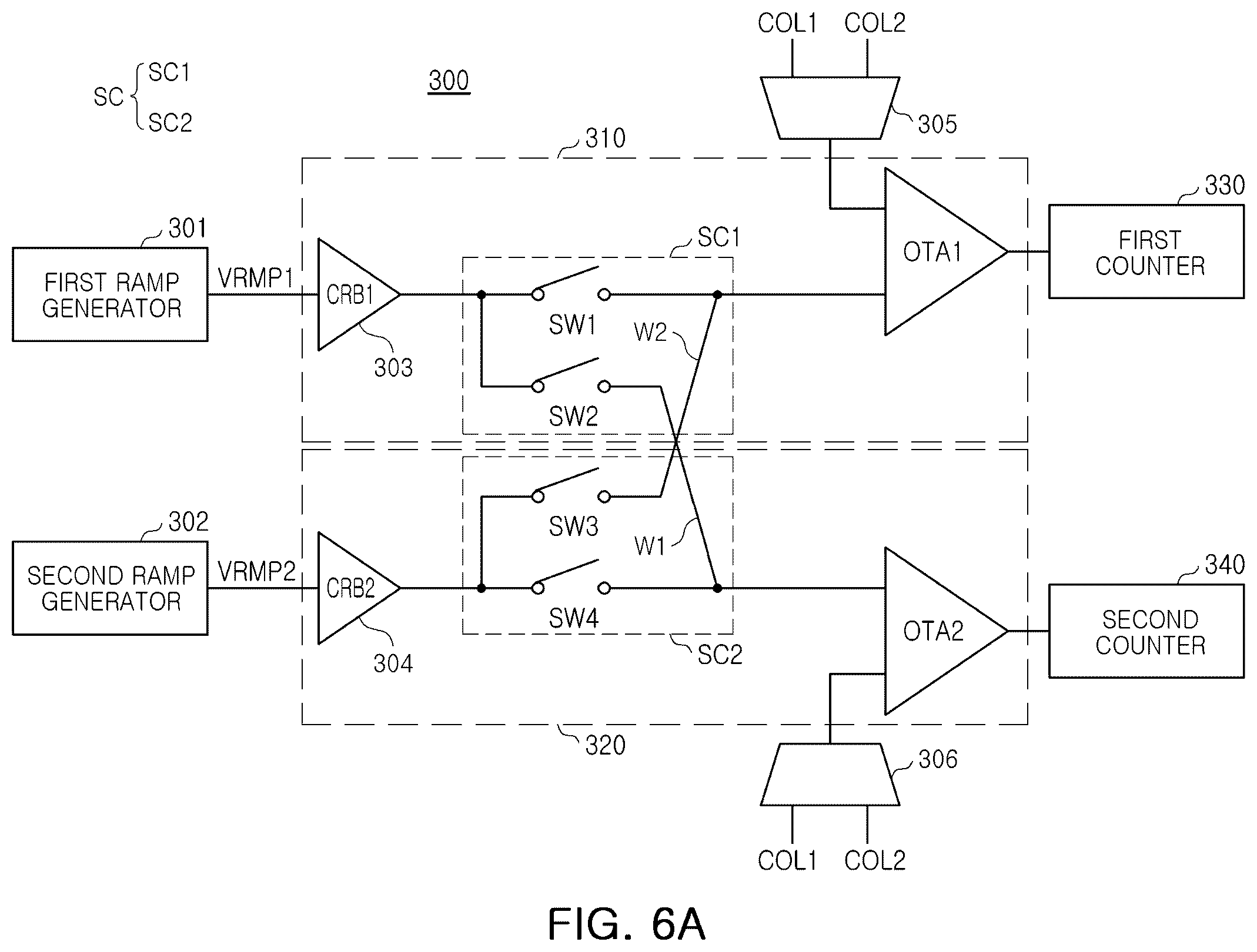

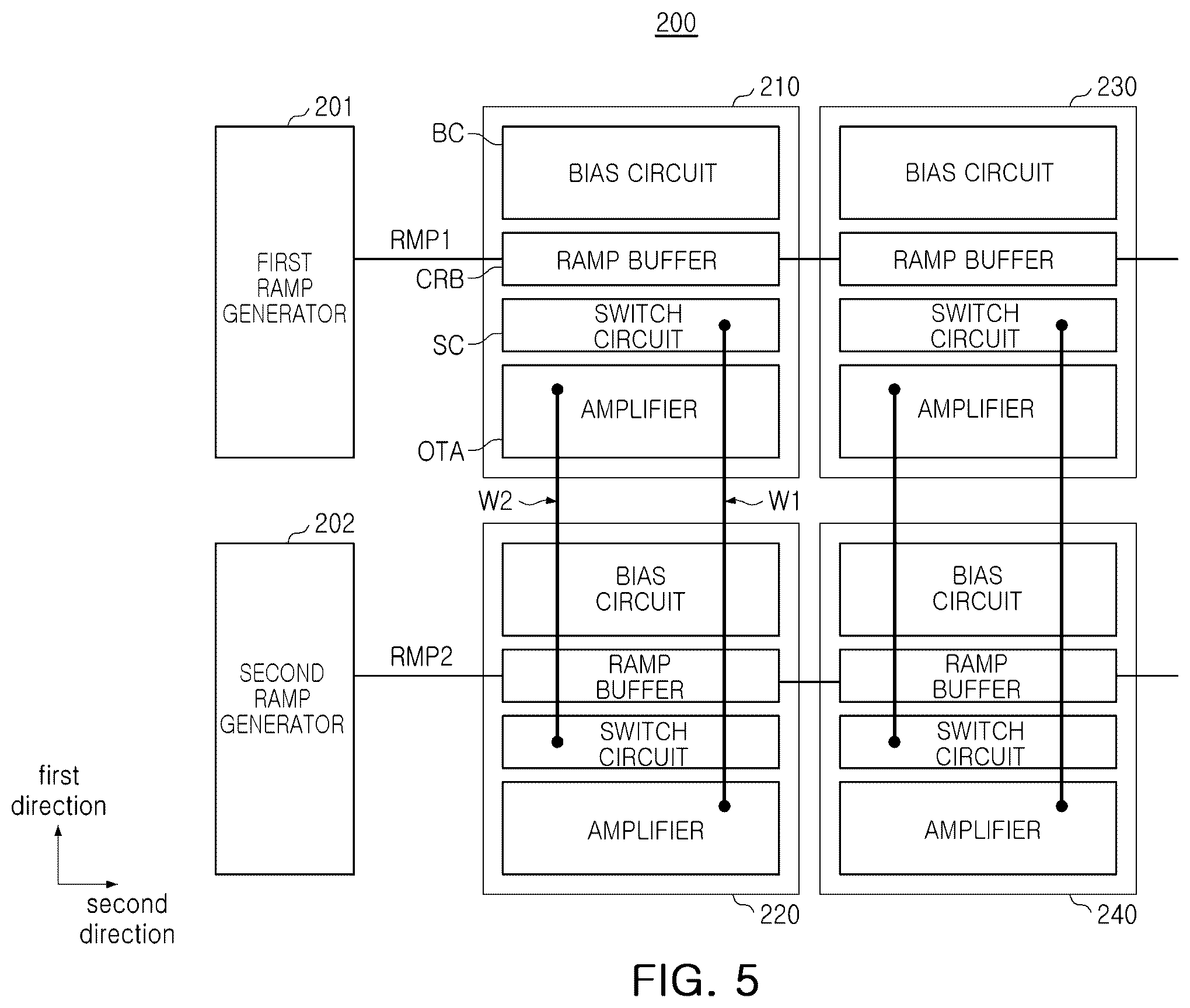

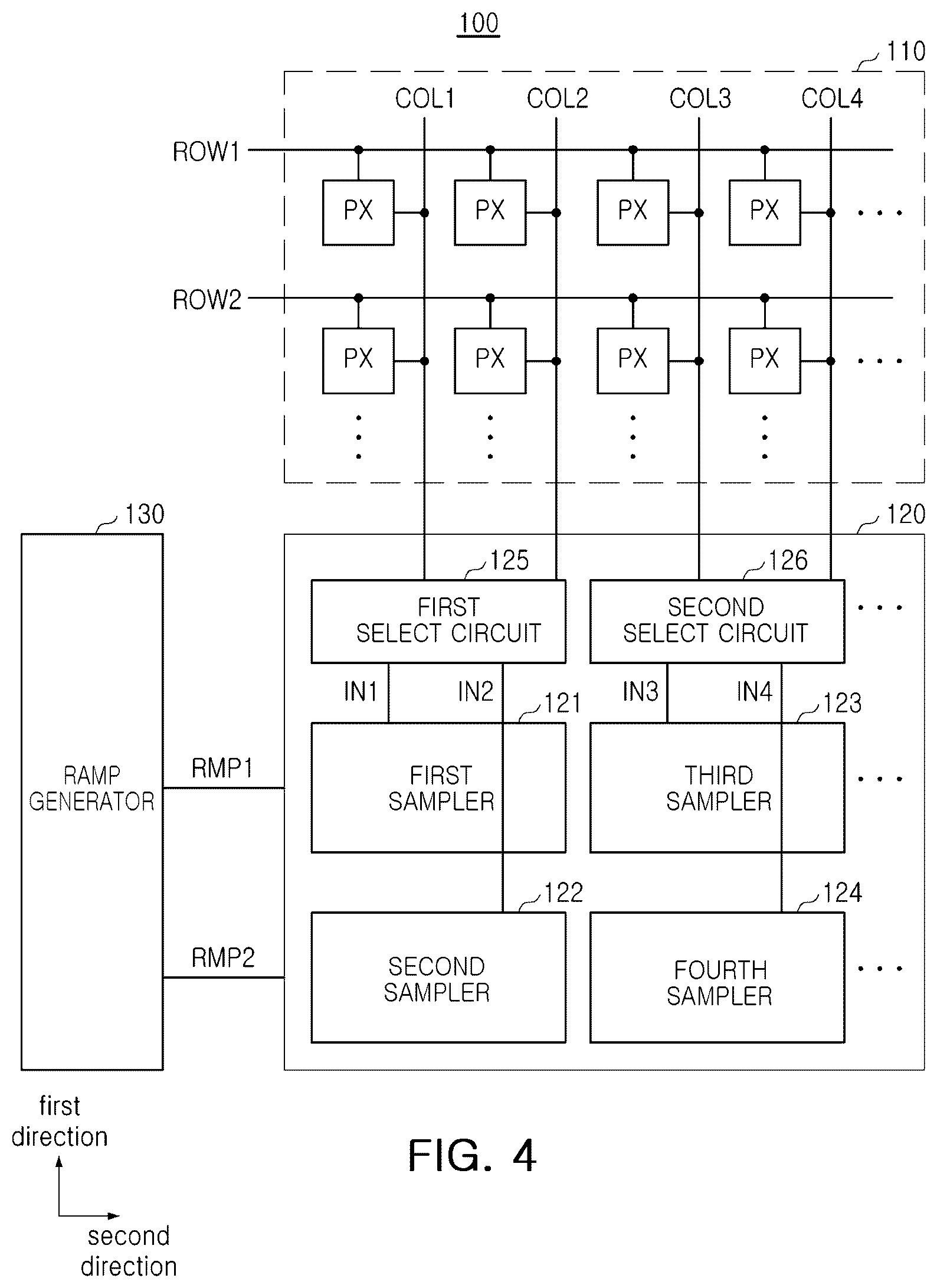

This patent adds a second ramp generator running a different voltage profile alongside the first. The sensor's samplers (the circuits sitting at the bottom of each column of pixels) can be connected to either generator depending on which of two modes is active.

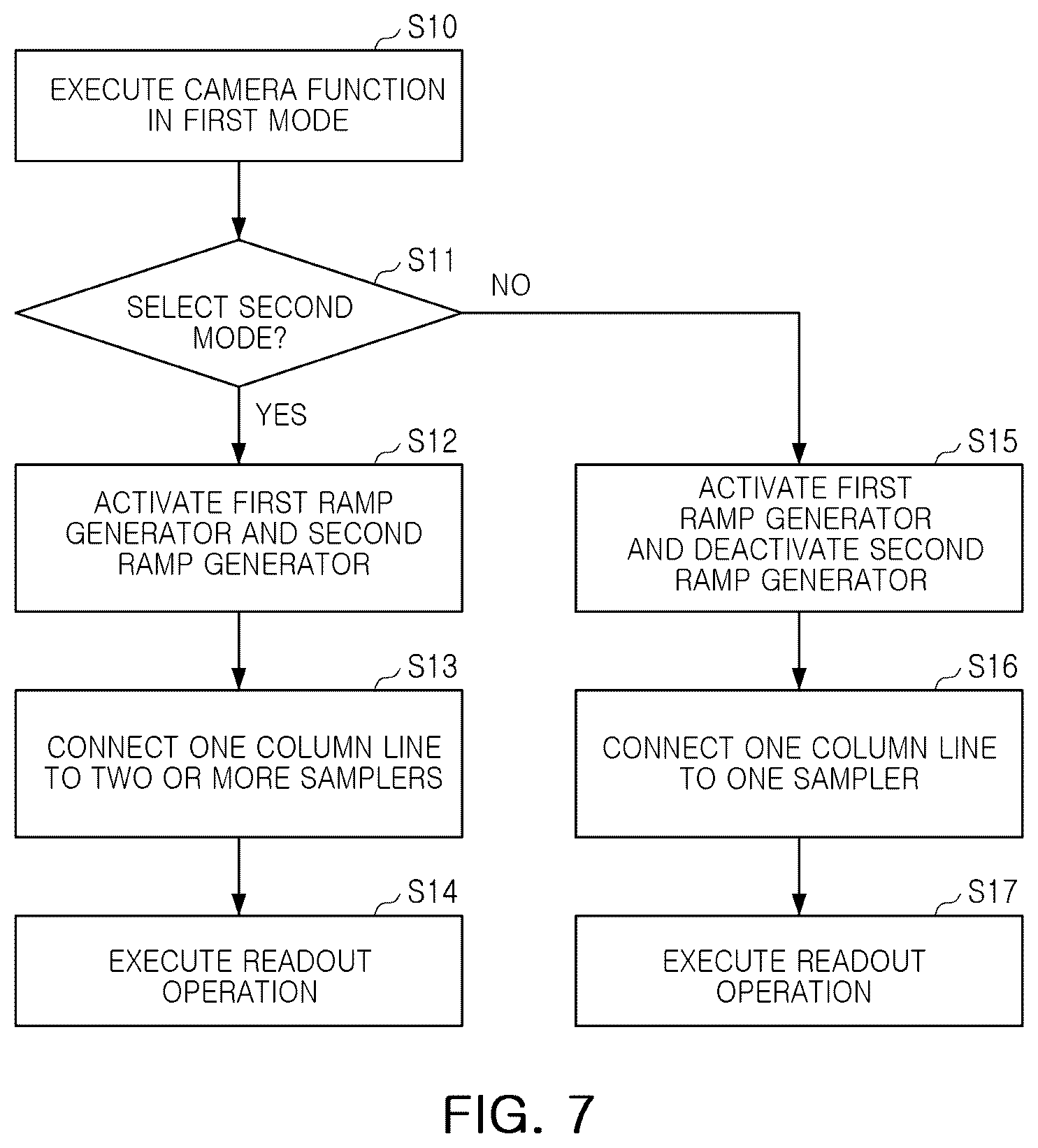

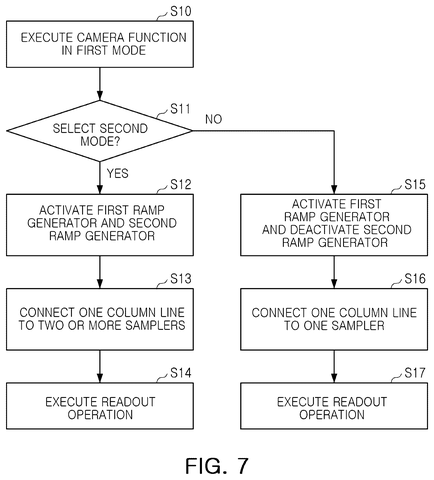

In first mode, all adjacent samplers share the same ramp generator. This is the simpler, lower-power configuration. In second mode, neighboring samplers are split: one connects to the first ramp generator, the other to the second. This means adjacent pixel columns can be measured against different references simultaneously.

The practical effect is that the sensor can:

  • Use a single uniform reference when conditions are straightforward
  • Switch to split references when the scene or readout speed demands finer control
  • Do this through electrical switching rather than physically redesigning the chip layout
From the filing · THE ABSTRACT
In a first mode, the first and second samplers are electrically connected to the first ramp generator and electrically separated from the second ramp generator.

Translation: One mode uses a single voltage source for all samplers to process the image data uniformly.

What this means for camera chips in Samsung phones

For consumers, this kind of architecture matters because the image sensor is the hardest-working chip in a modern smartphone camera. A sensor that can reconfigure how it reads pixel data is better positioned to handle the wide range of conditions a phone camera faces, from slow low-light portraits to rapid-fire burst shots, without the manufacturer having to build a separate sensor for each task.

For Samsung specifically, this filing fits into its broader push to keep its ISOCELL sensor line competitive with Sony's IMX series. The latest Big Tech patents in the image-sensor space show a clear arms race around readout speed and noise reduction, and Samsung's switchable dual-ramp approach is a concrete entry into that competition.

That makes this Samsung's 102nd filing we've tracked since May in our camera sensor push watchlist, following work on blurry-to-sharp AI and cleaner photo charge storage.

Editorial take

Running two ramp generators instead of one costs Samsung real chip space and extra power, and every added circuit contributes a small amount of electrical noise to a device where noise is the main enemy. That overhead exists even when the second generator sits idle, which means cheaper or battery-sensitive devices may be carrying dead weight most of the time.

The tradeoff reads as defensible for a premium camera sensor where image quality is the whole point, but shakier for a mid-range phone where power budgets are tight and the second mode might rarely activate in practice. The patent is narrow and precise, which signals honest engineering rather than overclaiming.

Whether any of this shows up in a photo you actually take depends on how aggressively Samsung builds the switching behavior into real shooting software.
