Samsung Patents a Chip That Moves Data With Light Instead of Electrical Signals

Samsung has filed a patent for a processor package that sends and receives data using pulses of light rather than electrical signals, with the optical hardware built directly into the same package as the chip and memory.

A cross-section of the chip package, showing the optical components and the cooling system. Drawing from patent filing US 2026/0299227 A1.
A cross-section of the chip package, showing the optical components and the cooling system.All 12 drawings ↓
Publication number
US 2026/0299227 A1(US20260299227A1)
Applicant
SAMSUNG ELECTRONICS CO., LTD.
Filed · Published
Mar 13, 2026 · Oct 1, 2026
Inventors
Heejin CHOI, Woosung KIM
Status when we published
Waiting for an examiner
Document
20 claims
US classification
385/14

How Samsung wants to move data using light inside a chip

A data center server pushes enormous amounts of information between chips every second. Today that data travels as electricity through copper wires, and electricity has limits: it generates heat, slows down over distance, and consumes a lot of power. Light signals don't have those same problems.

Samsung's patent describes a chip package that bakes an optical engine directly into the hardware alongside the processor and memory. That optical engine converts electrical signals into light and back again, and it connects to fiber-optic cables through a precision alignment groove. Think of the groove as a tiny slot that holds the fiber cables in exactly the right position so no light is lost.

For you as an end user, the direct benefit is indirect but real: servers that move data faster and cooler could mean quicker responses from cloud apps, AI services, and anything else running in a data center. This isn't about your phone; it's about the machines that power the services on your phone.

From the filing · CLAIM 1
… an optical engine on the interposer, wherein the optical engine comprises: a photonic integrated circuit (PIC) chip comprising circuit elements configured for photoelectric conversion …

Translation: The chip uses light-based components to convert electrical signals into optical signals.

How the groove structure lines up fiber optics to the chip

The patent describes a processor package built on a component called an interposer (a thin substrate that connects multiple chips together, like a circuit-board layer dedicated to chip-to-chip wiring). Sitting on that interposer are three main components: a processor, memory, and an optical engine.

The optical engine contains a photonic integrated circuit (PIC) chip, which is a chip designed to handle light the way a regular chip handles electricity. It includes components for photoelectric conversion, meaning it can turn electrical signals into light pulses and light pulses back into electrical signals. This is the same basic idea as fiber-optic internet, but miniaturized to fit on a chip package.

On top of the PIC chip sits a coupling structure that gives light a physical path in and out of the package. The key detail is a groove structure on the upper surface of that coupling structure. The groove is designed to mechanically align a fiber array unit (FAU), which is essentially a ribbon of multiple fiber-optic cables held in a precise arrangement.

  • The groove removes the need for active electronic alignment during manufacturing, reducing assembly complexity.
  • Keeping everything on one interposer shortens the electrical path between processor, memory, and the optical interface.
  • The PIC chip handles signal conversion locally, so data can leave the package as light immediately.
From the filing · THE ABSTRACT
… at least one groove structure configured for alignment with a fiber array unit (FAU).

Translation: Specialized physical grooves help align the microscopic optical pathways with external fiber optic cables.

What light-based chip links mean for data centers

Electrical connections inside data center equipment are hitting physical limits. Moving more data means more copper traces, more heat, and more power draw. Light-based interconnects have long promised a way out of that constraint, but they have historically been separate, external modules bolted onto servers rather than integrated with the processor itself.

A package that puts the optical engine on the same interposer as the processor and memory collapses that distance dramatically. For AI training clusters and high-performance computing racks, where chips need to share enormous datasets with each other at speed, tighter optical integration could reduce the bottleneck between compute and communication. Samsung has been filing around chip-level optical integration for some time, and this patent adds a specific, manufacturable alignment approach to that body of work.

Samsung's 59th filing we've tracked in the AI chip wars since June adds to a pattern started by one on avoiding memory drain and one that reroutes overloaded memory chips.

Source: US 2026/0299227 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 12 sheets

12 drawing sheets from US 2026/0299227 A1 · click any drawing to enlarge

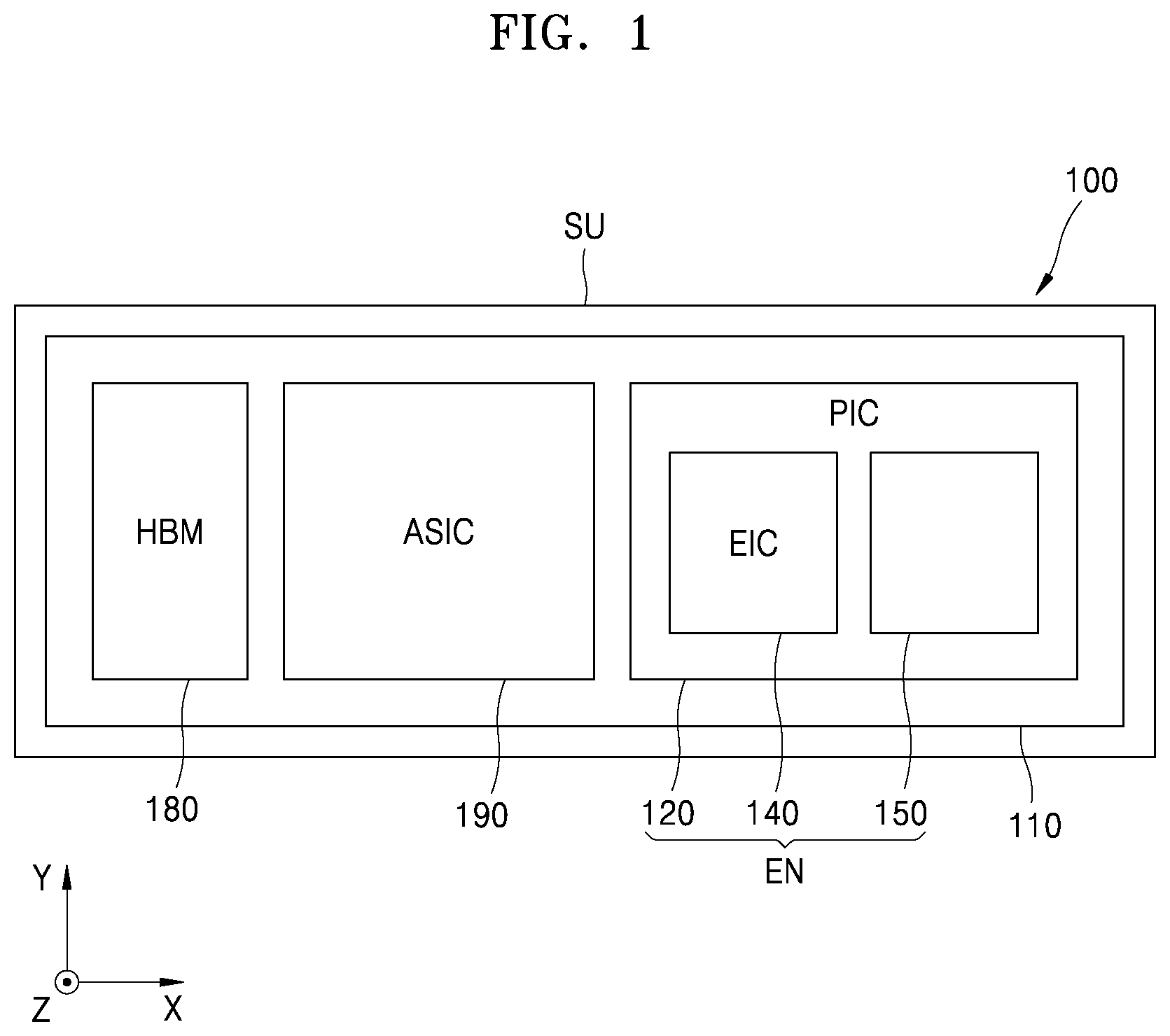

Chip package components, drawing sheet 1 from US 2026/0299227 A1
Sheet 1 Chip package components

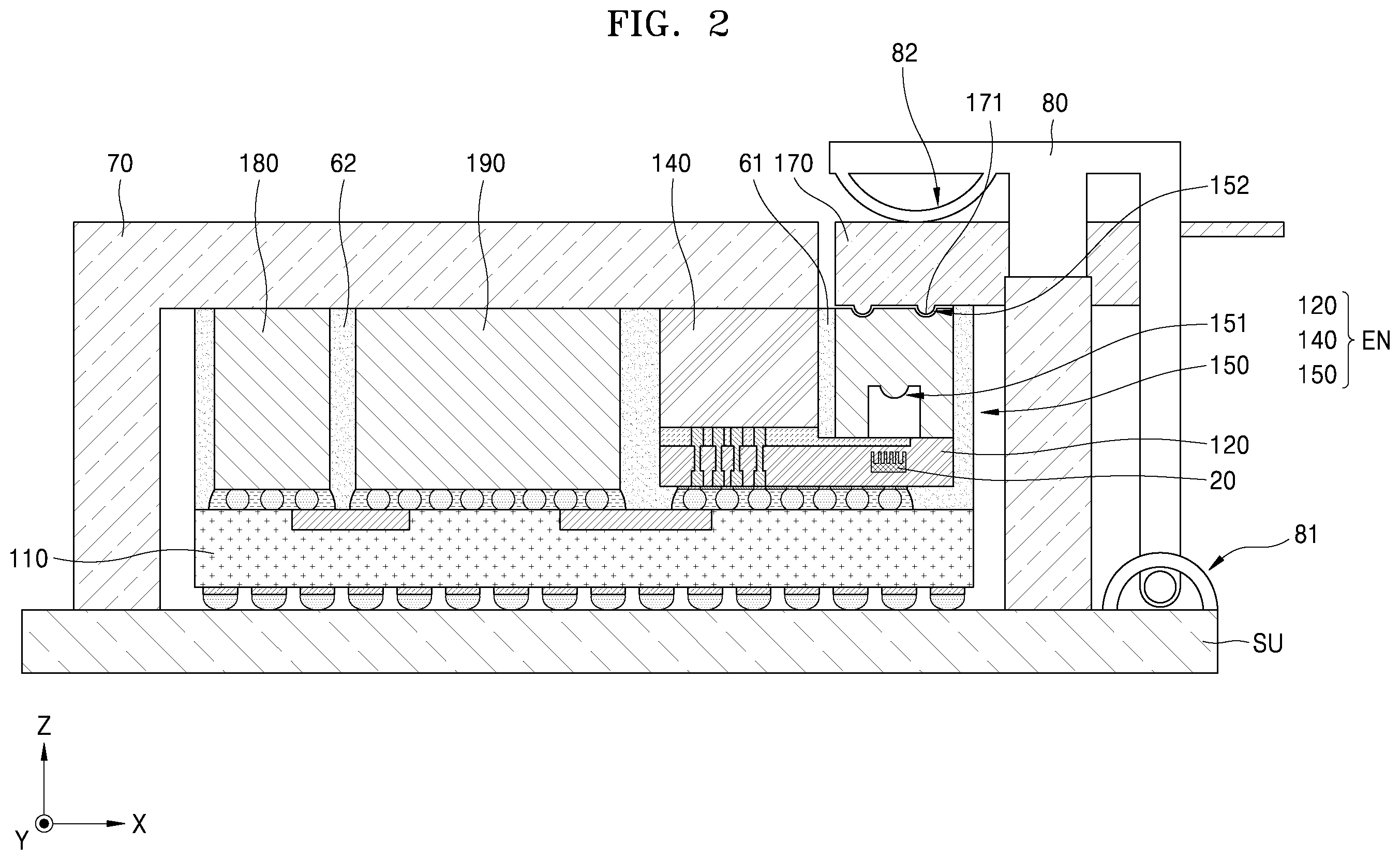

Chip package cross-section with cooling, drawing sheet 2 from US 2026/0299227 A1
Sheet 2 Chip package cross-section with cooling

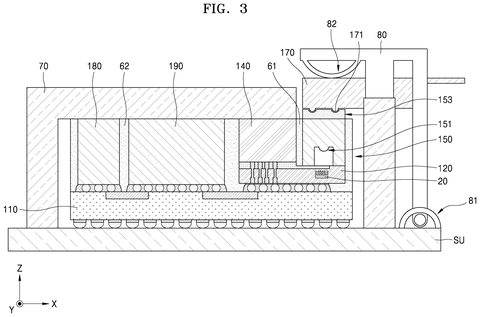

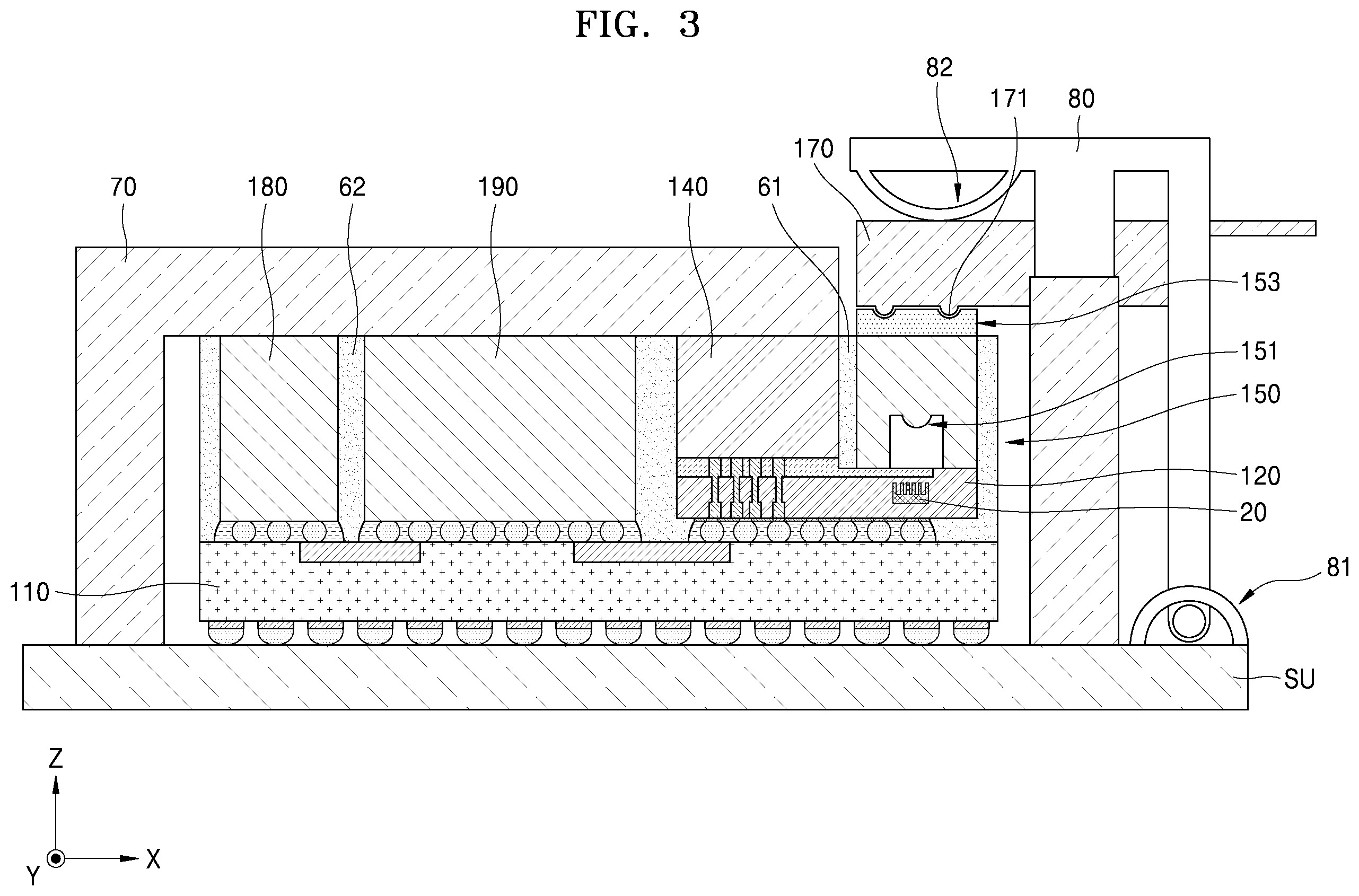

Chip package with different cooling, drawing sheet 3 from US 2026/0299227 A1
Sheet 3 Chip package with different cooling

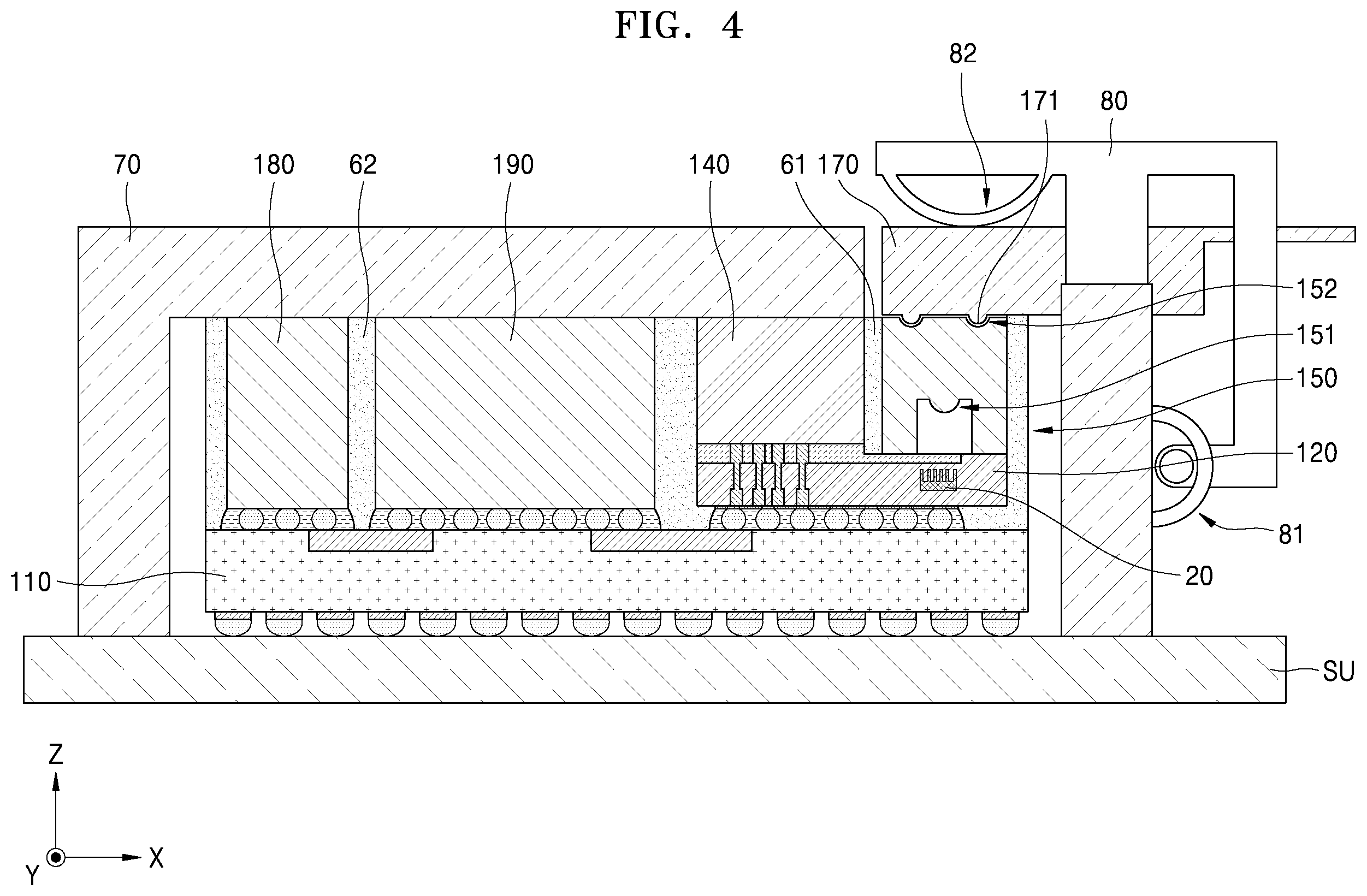

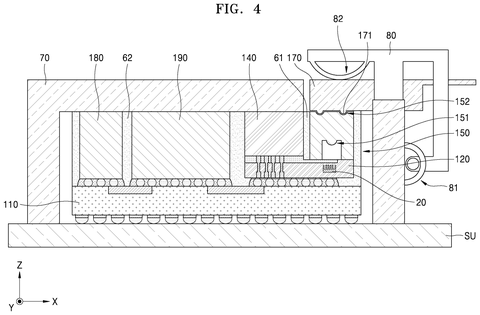

Chip package with alternative cooling, drawing sheet 4 from US 2026/0299227 A1
Sheet 4 Chip package with alternative cooling

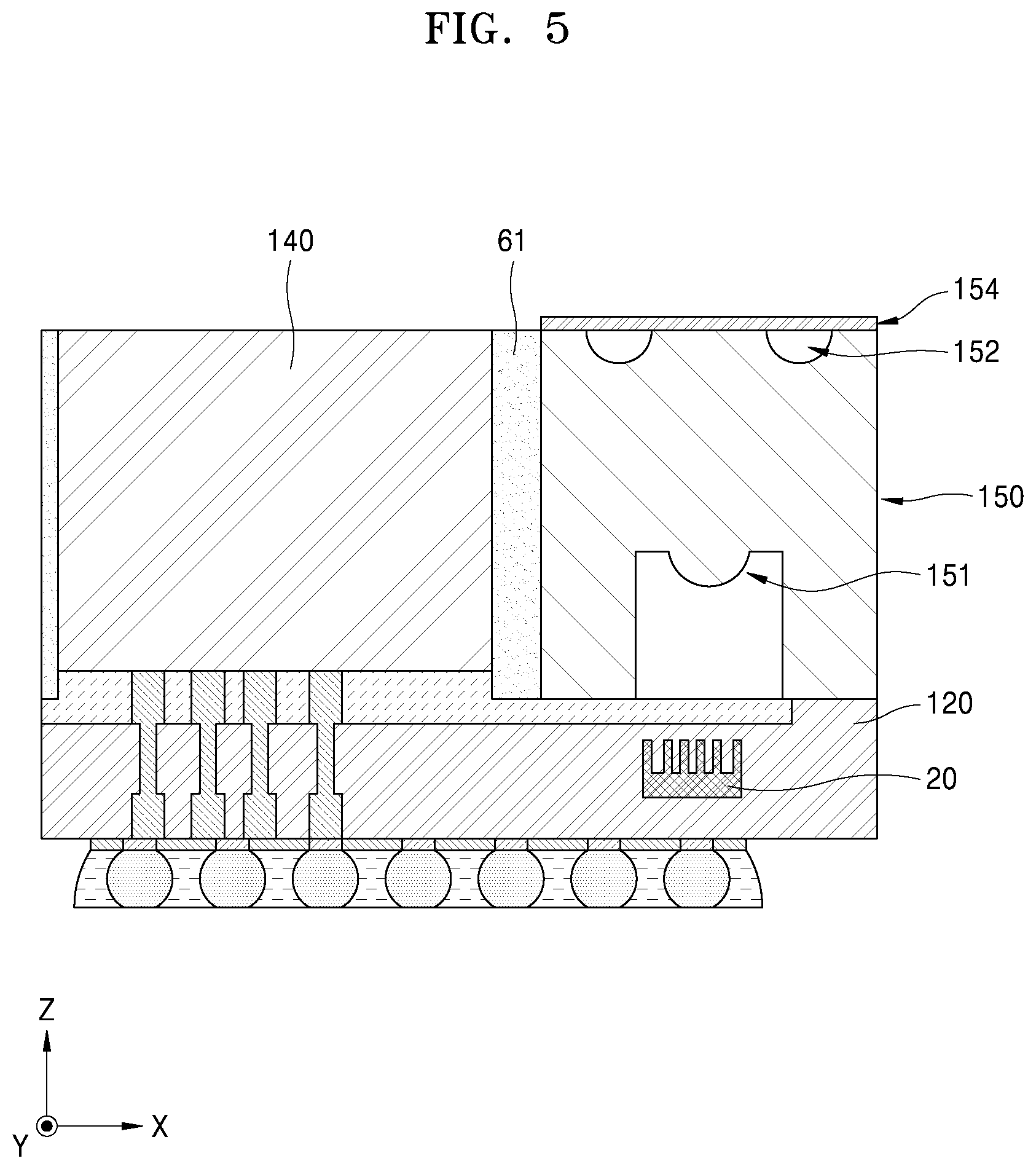

Optical components close-up, drawing sheet 5 from US 2026/0299227 A1
Sheet 5 Optical components close-up

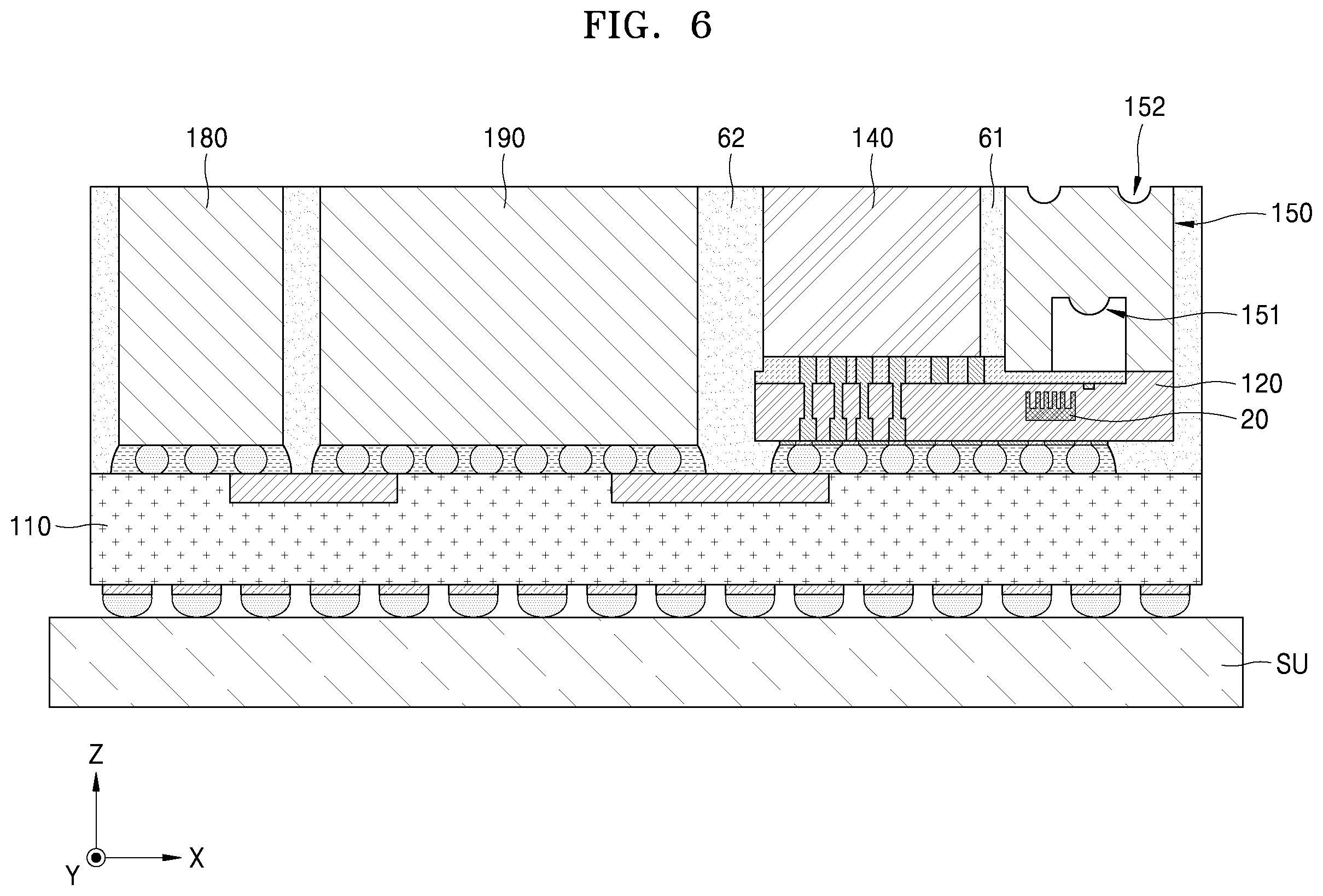

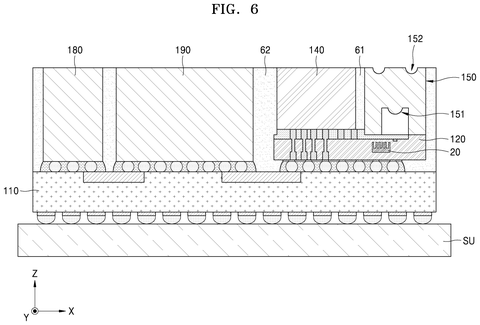

Chip package without cooling, drawing sheet 6 from US 2026/0299227 A1
Sheet 6 Chip package without cooling

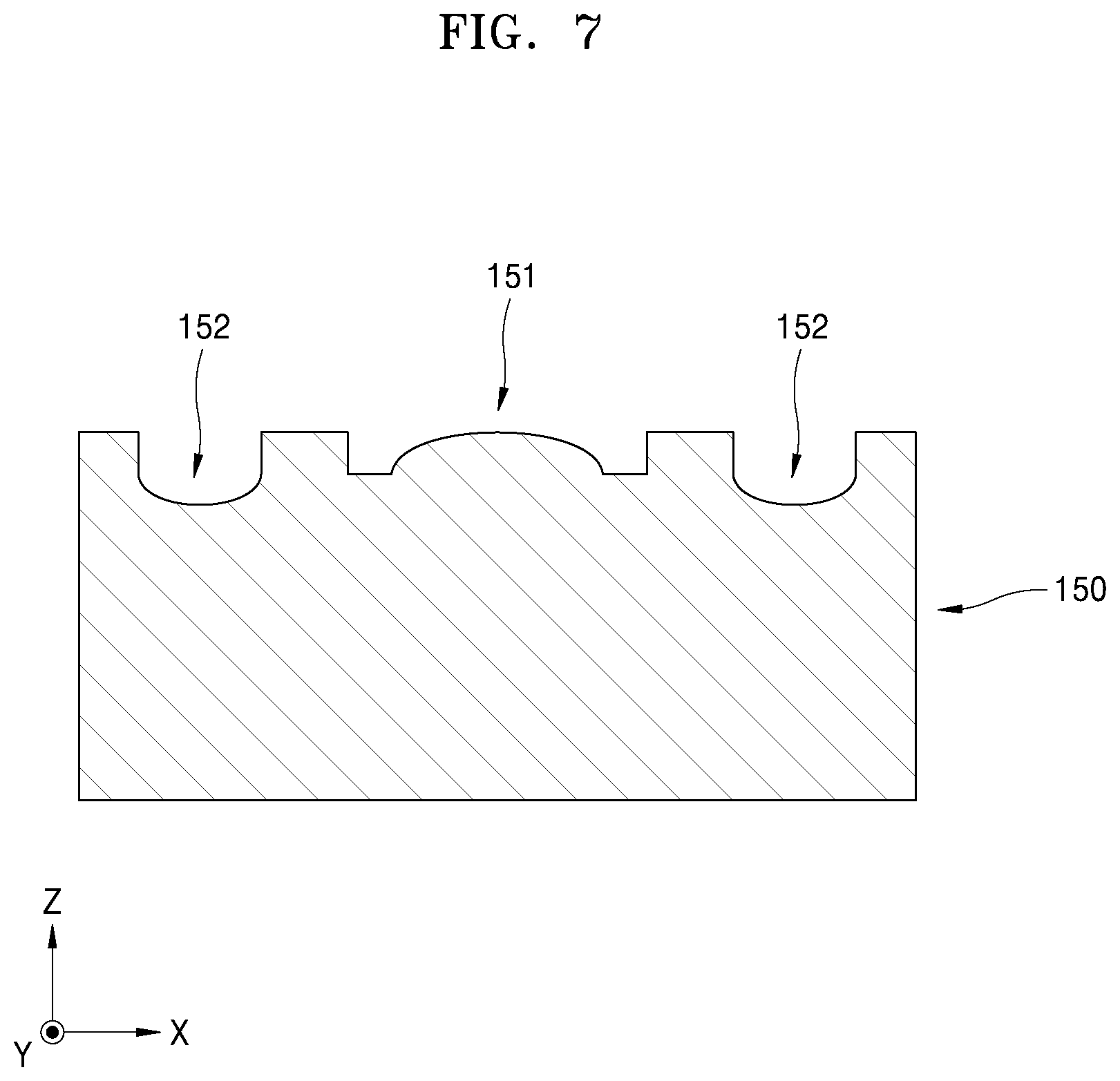

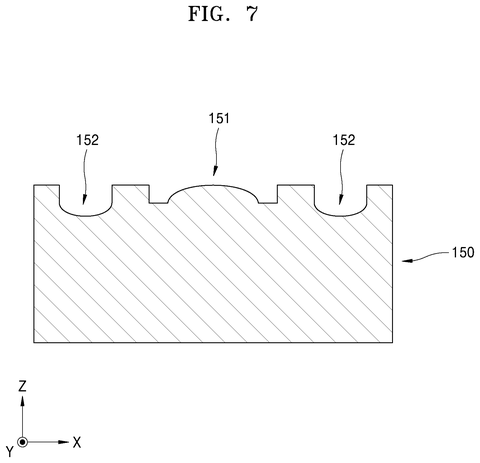

Optical component details, drawing sheet 7 from US 2026/0299227 A1
Sheet 7 Optical component details

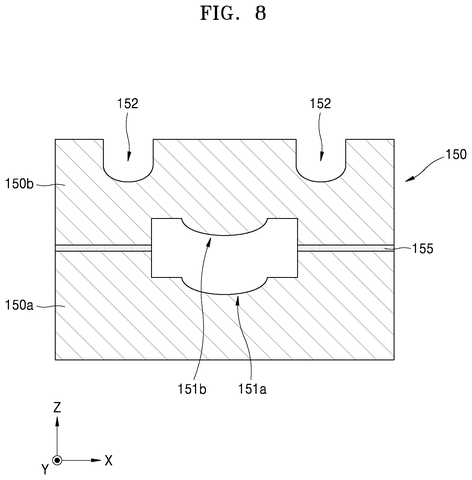

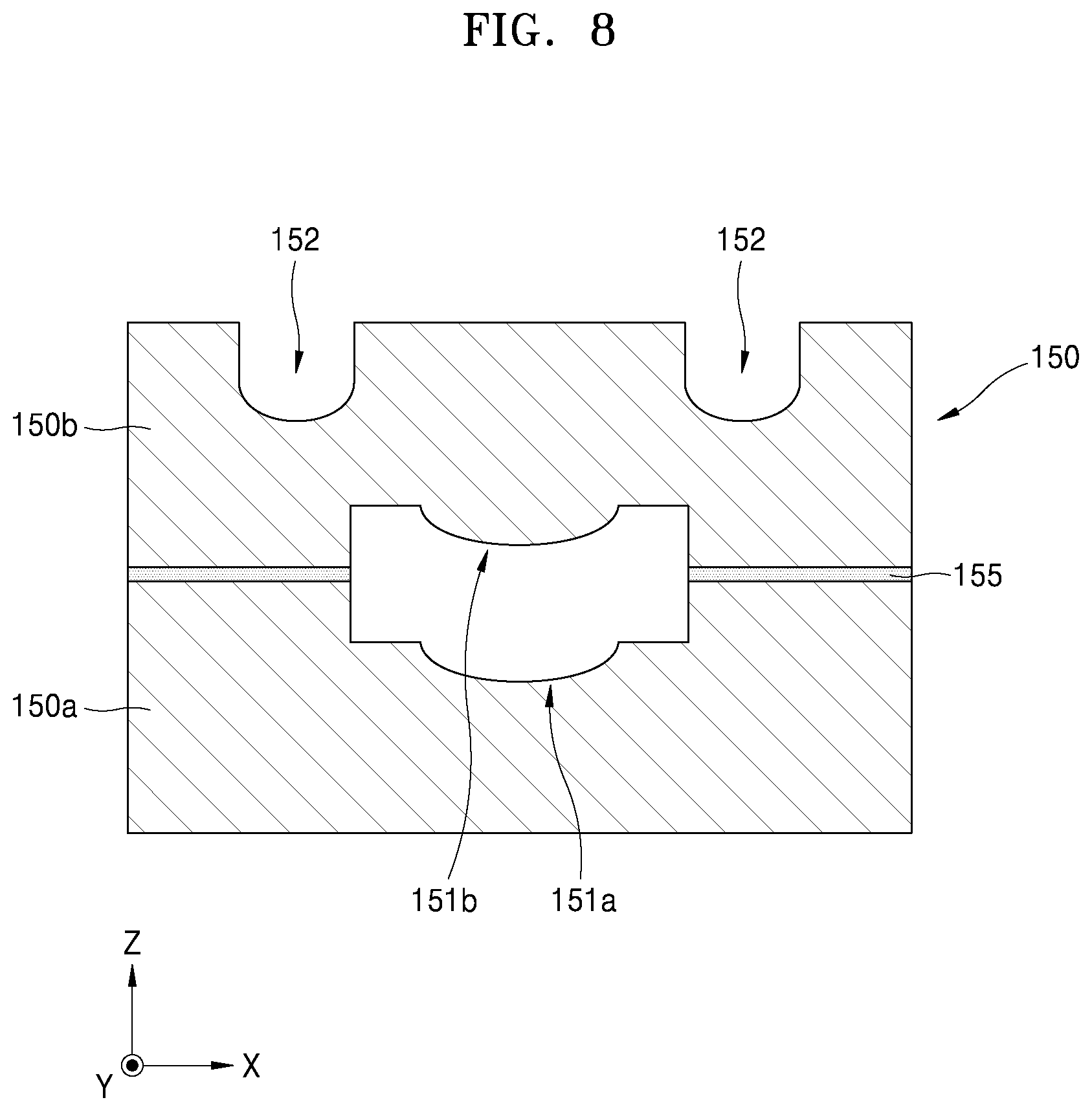

Two-part optical component, drawing sheet 8 from US 2026/0299227 A1
