Sony Patents Tech That Previews Your Parking Spot Using Nearby Cars' 3D Shape

Parallel parking next to a giant SUV when you're driving a compact is genuinely nerve-wracking. Sony's semiconductor arm has filed a patent for a system that simulates the entire parking maneuver before you attempt it, using a live 3D scan of the cars already in the space.

A car's dashboard display showing a predicted vehicle model with confirmation buttons for parking assistance. Drawing from patent filing US 2026/0245462 A1.
A car's dashboard display showing a predicted vehicle model with confirmation buttons for parking assistance.All 7 drawings ↓
Publication number
US 2026/0245462 A1(US20260245462A1)
Applicant
SONY SEMICONDUCTOR SOLUTIONS CORPORATION
Filed · Published
Sep 12, 2025 · Aug 20, 2026
Inventors
KAZUMA SHIGEMATSU
Status when we published
Waiting for an examiner
Document
18 claims
US classification
701/301
Examiner
ARTIMEZ, DANA FERREN (Art Unit 3667)
Parent application
National Stage Entry of PCT/JP2024/007939 (filed Mar 4, 2024)(PCTJP2024007939)

How Sony's parking preview system actually works

Ever pulled into a tight parking spot and instantly regretted it? Sony's patent is for a system that would let you see, before you even start turning the wheel, exactly how your car fits into a space relative to whatever is already parked there.

The system scans the vehicles next to your target spot, builds a 3D model of them, and then generates a virtual image showing how your car would look once parked. Think of it like a preview button for parking. Instead of relying on your mirrors and gut feeling, you'd see a simulated top-down or side view of the finished park before committing.

The idea comes from Sony's semiconductor division, which makes the camera and sensor chips that power a lot of the driver-assist technology already inside modern cars. That background matters, because this kind of system leans heavily on the quality of the sensors scanning your surroundings in real time.

From the filing · CLAIM 1
… generates a virtual space image on a basis of three-dimensional shape data of an adjacent vehicle that is adjacent to a parking position where parking of an own vehicle is planned, the virtual space image indicating a result of simulation of the parking of the own vehicle in the parking position …

Translation: The system creates a 3D preview of your car parking by using the shape of the vehicles already parked next to your spot.

How the 3D shape data drives the parking simulation

The core of the patent is an image generation section, a software component that takes two inputs and combines them into a single simulation.

The first input is three-dimensional shape data of adjacent vehicles, meaning a depth-aware model of exactly how tall, wide, and long the cars already sitting in neighboring spaces are. The second input is sensing data, which is the live feed from the car's own cameras and proximity sensors picking up the immediate environment around the vehicle.

Those two data streams feed a simulation engine that models how your car would sit in the target parking position. The result is rendered as a virtual space image, a visual representation of the completed park that the driver can see before making any physical movement into the spot.

  • 3D shape reconstruction of neighboring parked vehicles
  • Real-time sensor data from the driver's own car
  • Combined simulation of the planned parking position
  • On-screen virtual image output showing the predicted result

The patent is filed by Sony Semiconductor Solutions, the division that designs image sensors and processing chips, which suggests the intent is to implement this on-chip or tightly integrated with camera hardware rather than as a cloud or off-board compute solution.

From the filing · THE ABSTRACT
The present technology relates to an information processing device, an information processing method, and an information processing system that make it possible to reduce anxiety for drivers.

Translation: Sony designed this technology specifically to help drivers feel less stressed while trying to park their cars.

What this means for driver-assist displays in cars

Driver-assist systems already give you cameras and parking sensors, but they show you what is there right now, not what will happen when you pull in. The gap between live feed and predictive preview is exactly what this patent is trying to close. For anyone who has ever scraped a bumper, misjudged a truck bed overhang, or simply abandoned a spot because it looked too tight, a reliable simulation before committing would change the feel of parking entirely.

For Sony, this fits a clear hardware strategy: the company's semiconductor arm supplies image sensors to a large portion of the automotive industry, so a patent like this positions that sensor hardware as the foundation of a more complete perception system. Automotive parking-assist tech is one of the more active areas covered among interesting tech patents, and Sony's angle, building the simulation from the sensor data outward rather than from maps or infrastructure inward, is a distinctive approach worth watching as driver-assist systems grow more predictive.

Sony's 15th filing we've tracked since July in the self-driving sensing race builds on earlier work like one that spots glass surfaces and one pairing color and distance.

Source: US 2026/0245462 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 7 sheets

7 drawing sheets from US 2026/0245462 A1 · click any drawing to enlarge

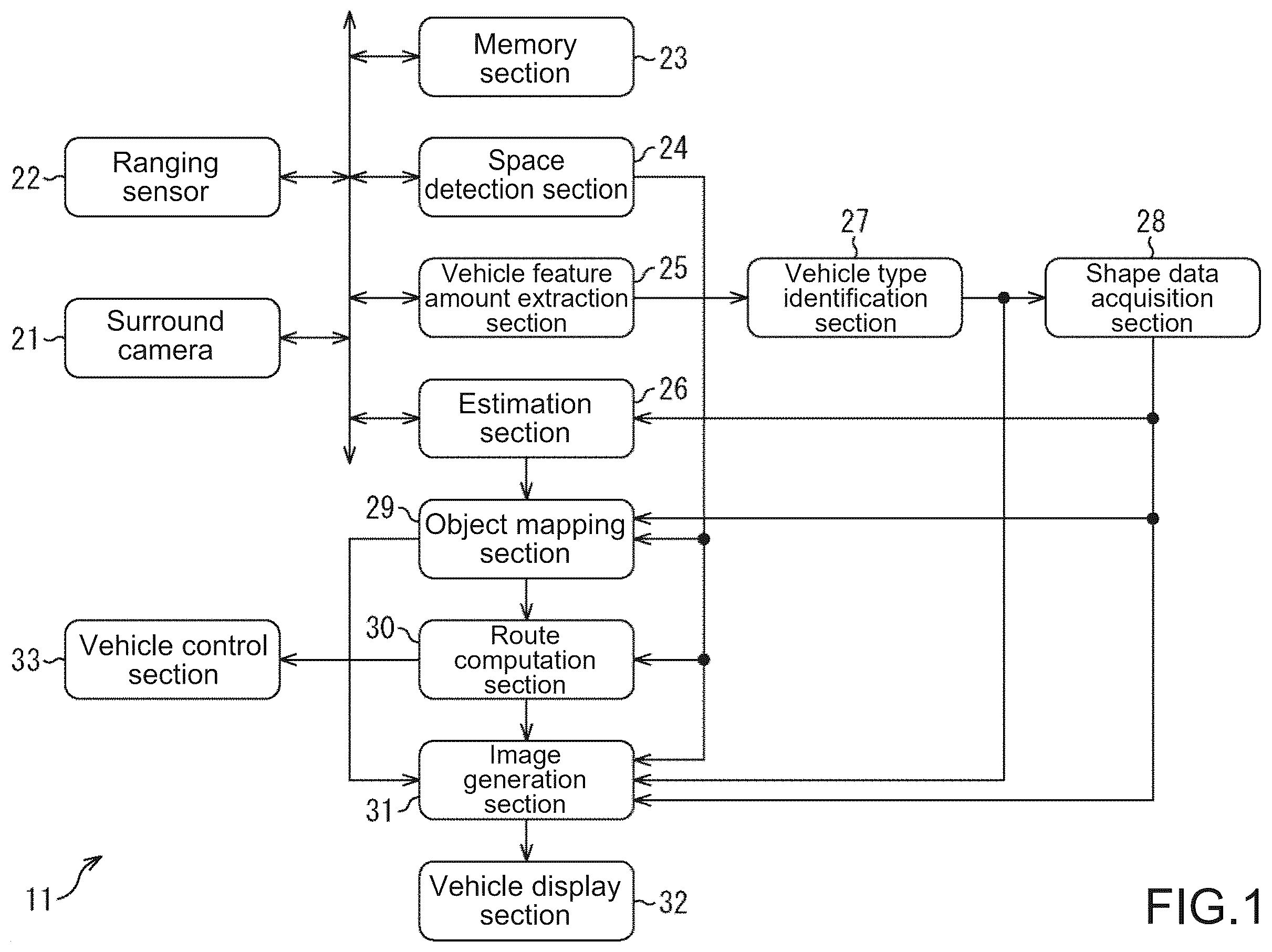

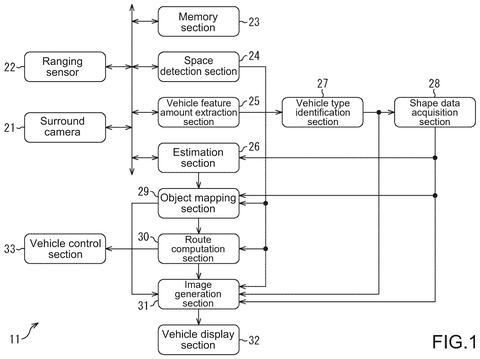

System architecture of the parking assistant, drawing sheet 1 from US 2026/0245462 A1
Sheet 1 System architecture of the parking assistant

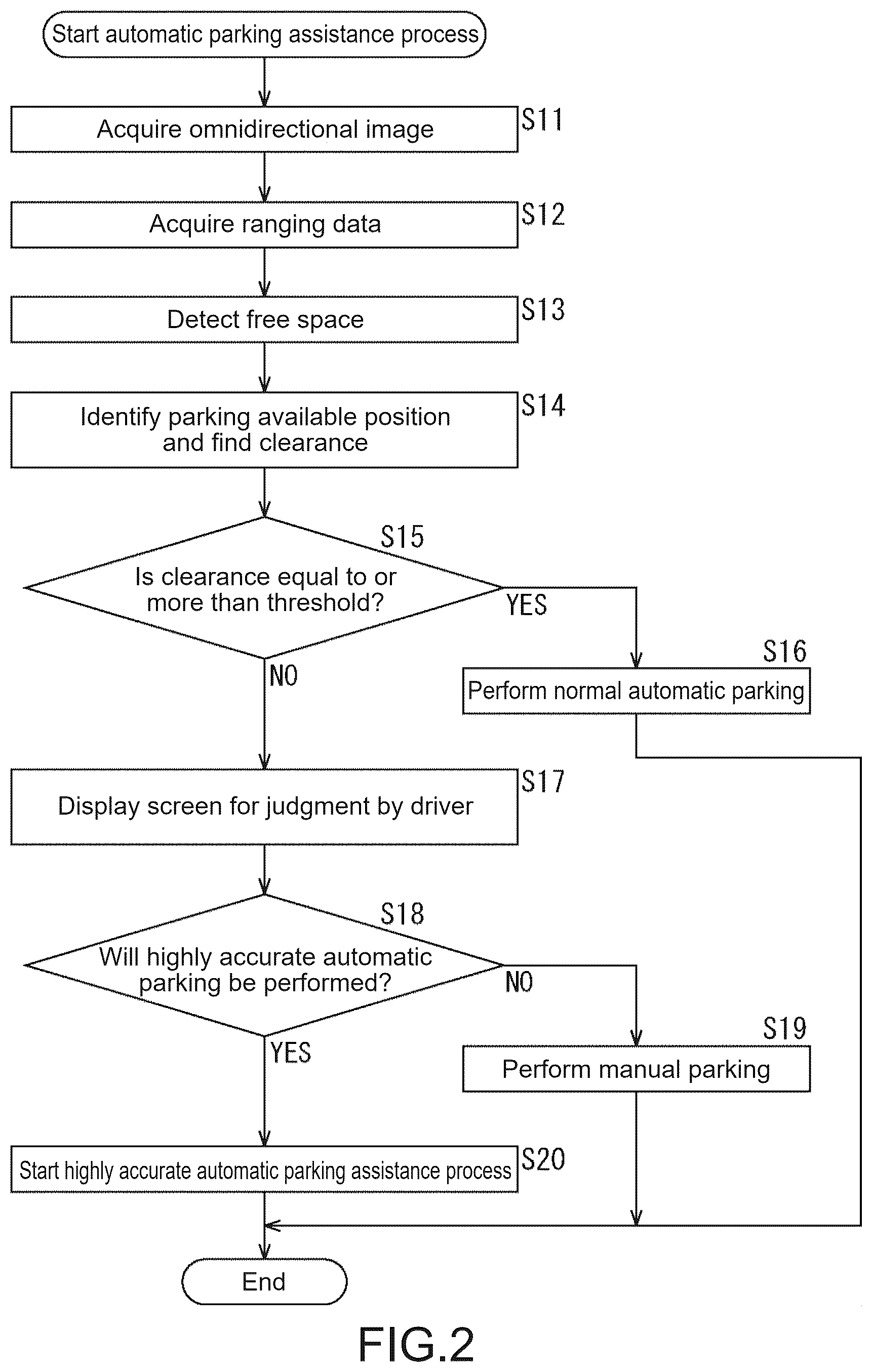

Flowchart of the parking assistance process, drawing sheet 2 from US 2026/0245462 A1
Sheet 2 Flowchart of the parking assistance process

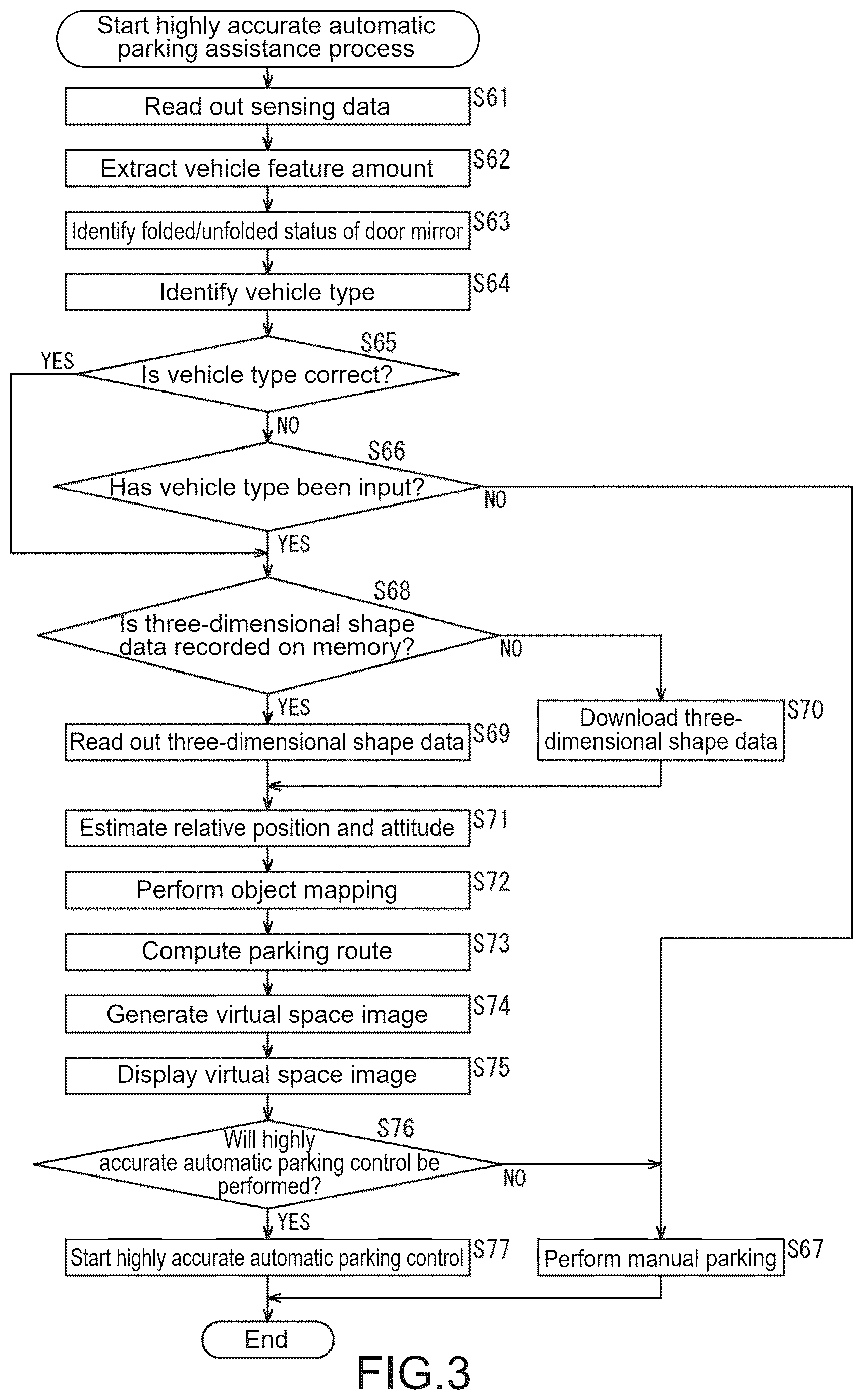

Steps for accurate parking assistance, drawing sheet 3 from US 2026/0245462 A1
Sheet 3 Steps for accurate parking assistance

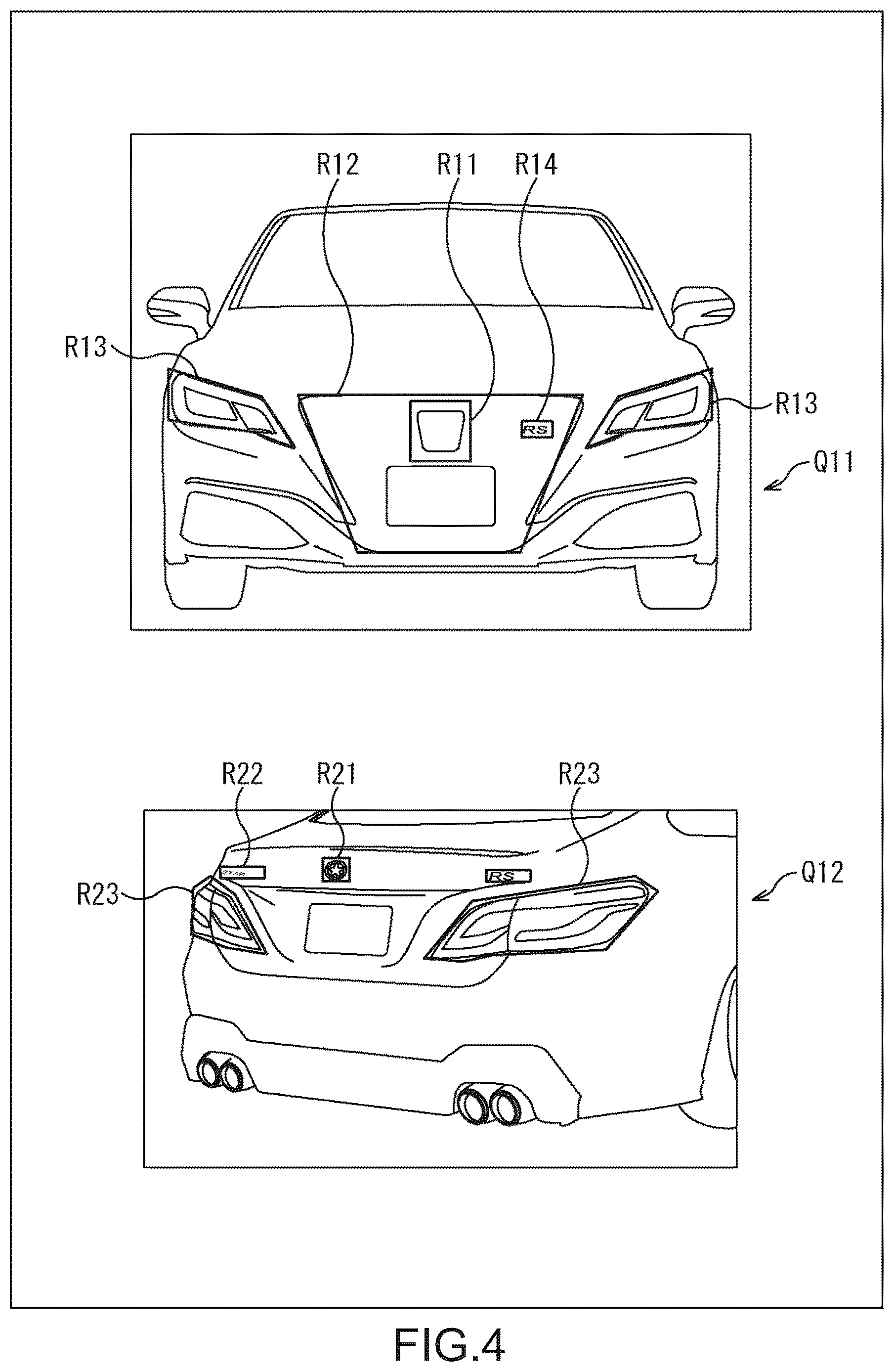

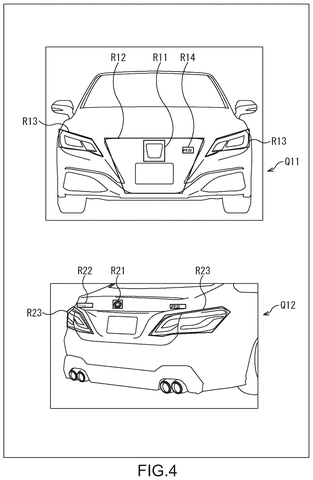

Front and rear views of a vehicle, drawing sheet 4 from US 2026/0245462 A1
Sheet 4 Front and rear views of a vehicle

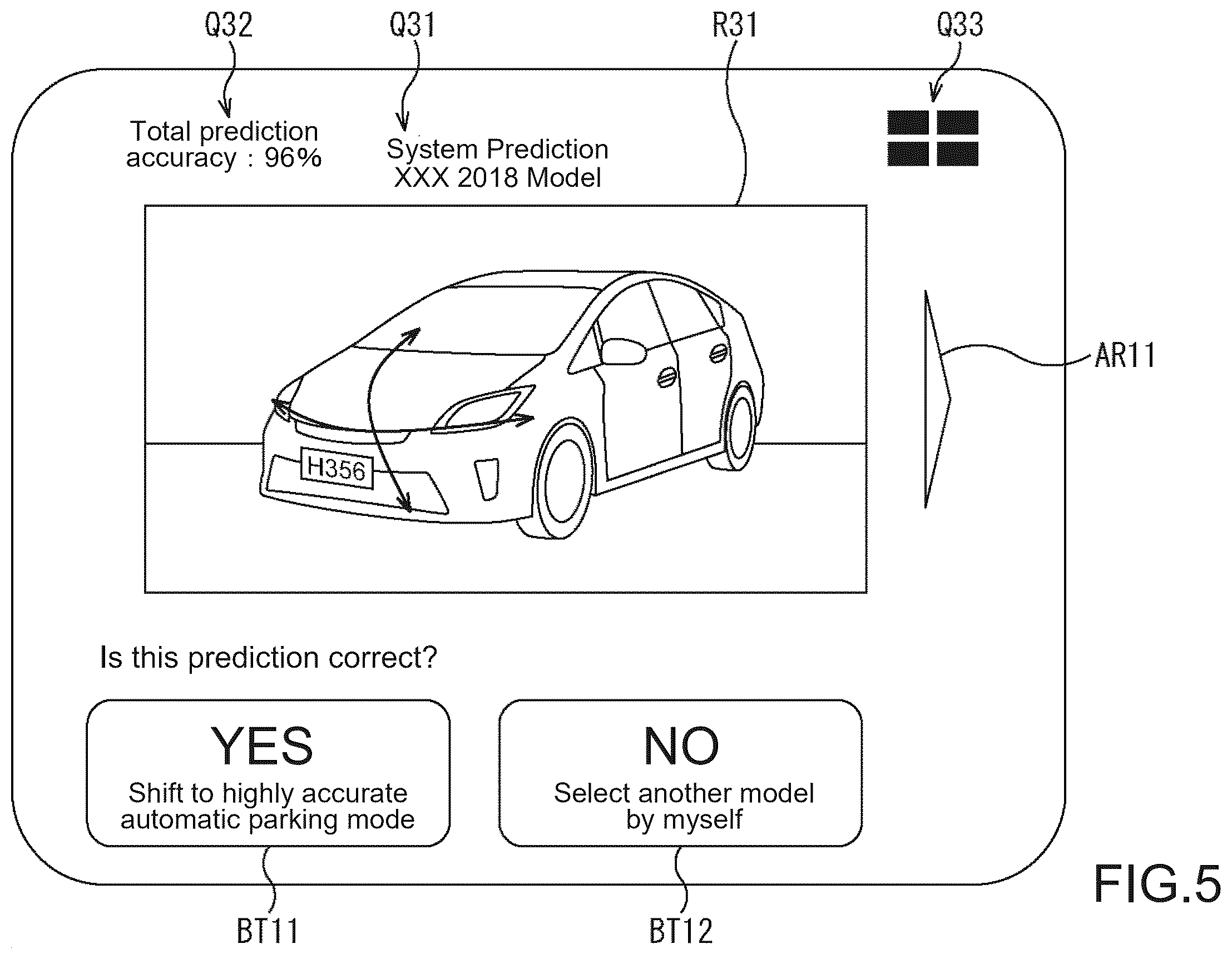

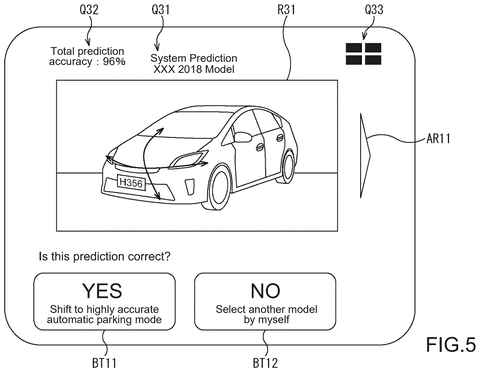

Driver interface for parking prediction, drawing sheet 5 from US 2026/0245462 A1
Sheet 5 Driver interface for parking prediction

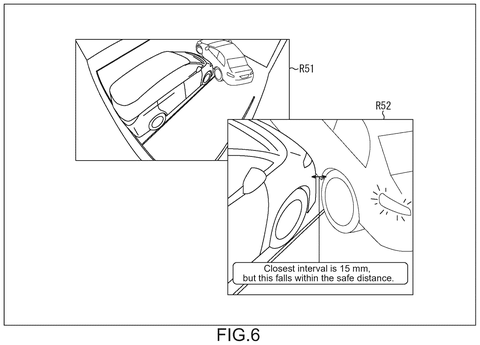

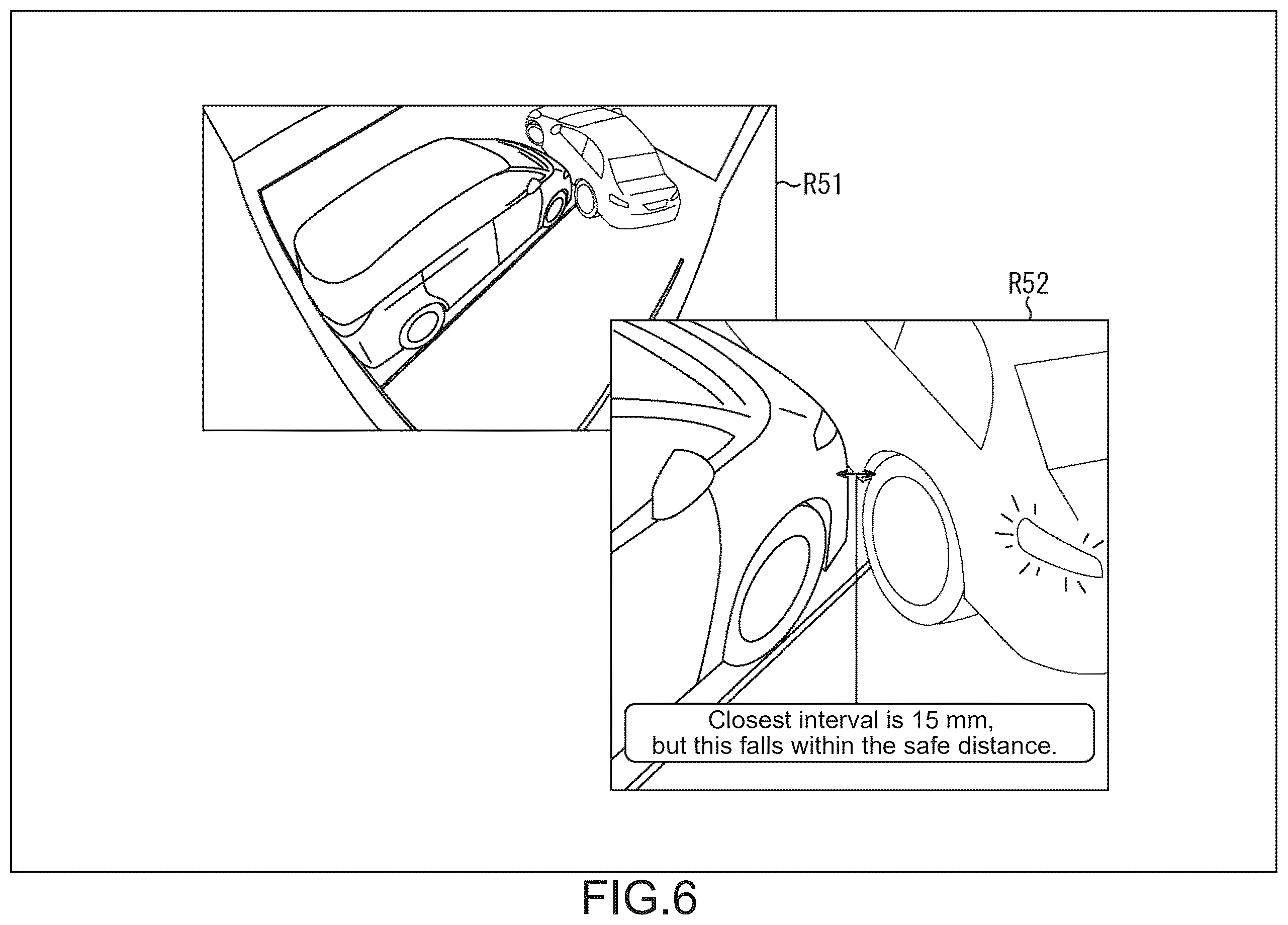

Simulated view of a close parking space, drawing sheet 6 from US 2026/0245462 A1
Sheet 6 Simulated view of a close parking space

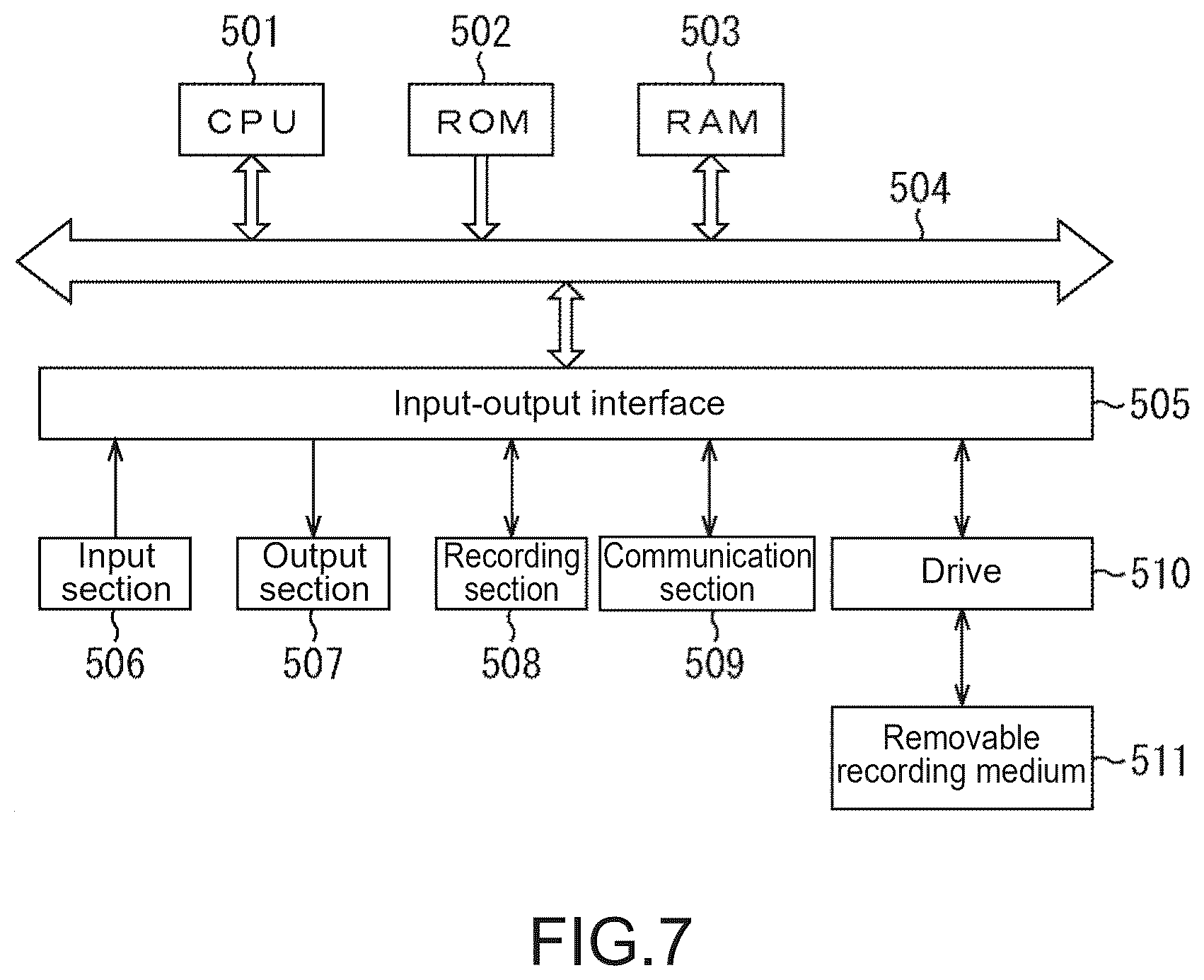

Internal hardware components of the system, drawing sheet 7 from US 2026/0245462 A1
Sheet 7 Internal hardware components of the system
